Left Rear Door Harness Routing

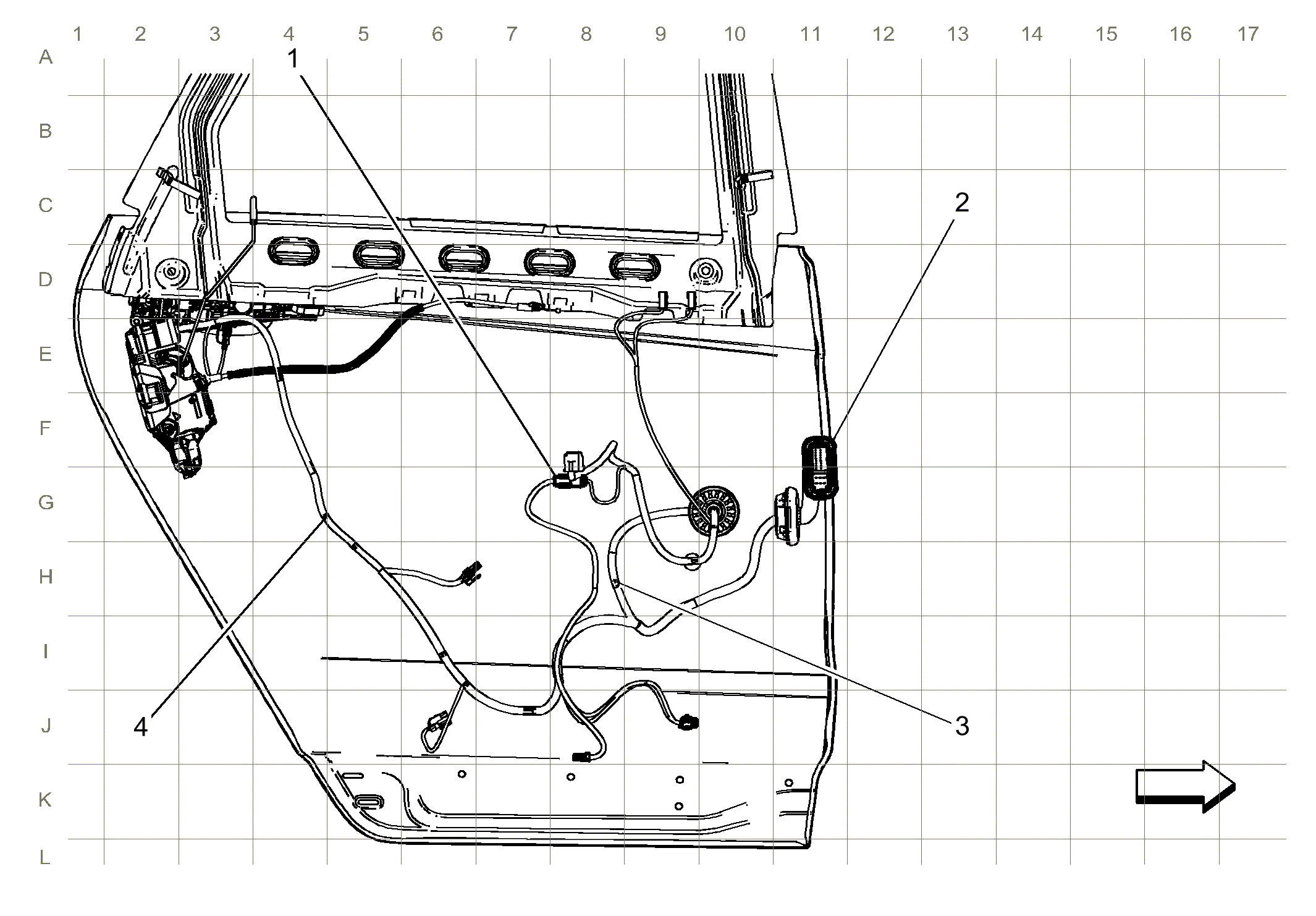

Fig 1: View Of Left Rear Door Harness Routing Diagram
GM2298179Courtesy of GENERAL MOTORS COMPANY
Items
1:  X705 X705 Left Rear Door Harness to Left Rear Door Trim Harness
2:  X700 X700 Body Harness to Left Rear Door Harness
3:  J700
4:  J701
