Engine Harness Routing - Right Front

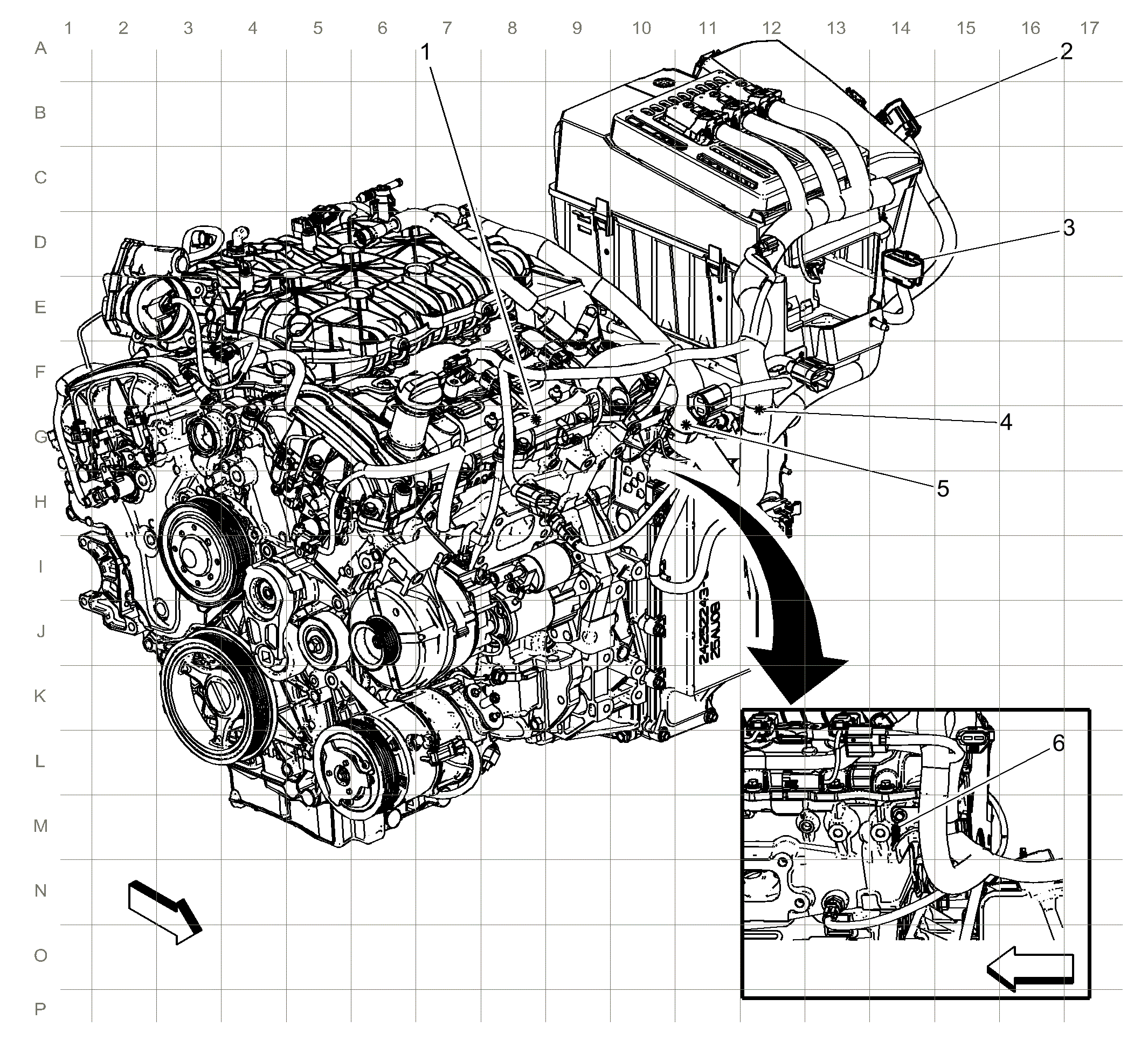

Fig 1: Identifying Engine Harness Routing Diagram - Right Front (LF1)
GM2293981Courtesy of GENERAL MOTORS COMPANY
Items
1:  J128
2:  X194 X194 Body Harness to Engine Harness
3:  X105 X105 Engine Harness to Forward Lamp Harness
4:  J134
5:  J100
6:  G111
