Windshield Washer Nozzle Replacement

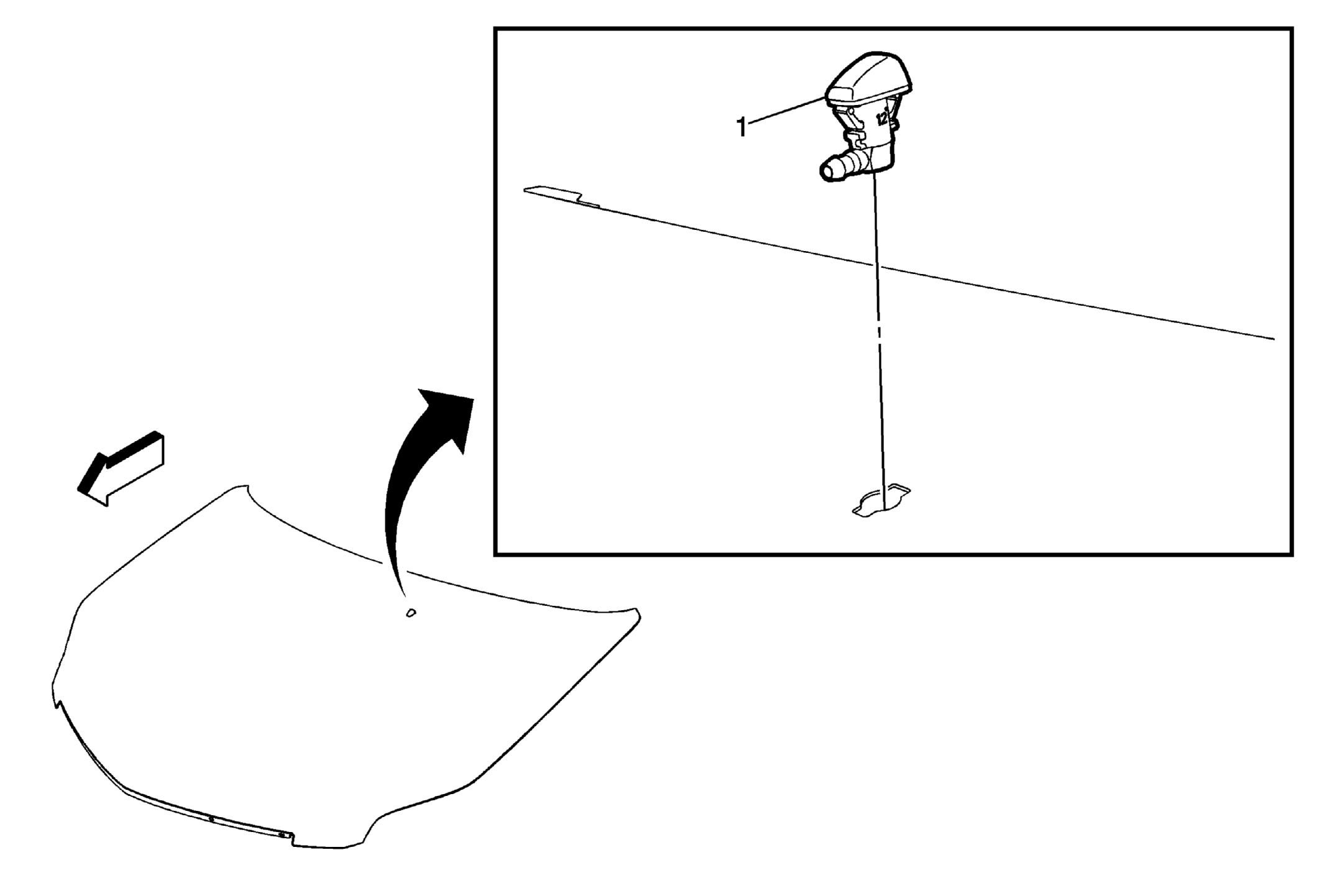

Fig 1: Identifying Windshield Washer Nozzles

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the hood insulator. Refer to Hood Insulator Replacement . Disconnect the windshield washer hose from the washer nozzles.
1	Windshield Washer Nozzle (Qty: 2) Procedure Pinch the rear retainer on the washer nozzle first followed by the front retainer. Push the nozzles outward from the hood in order to remove.

Callout

Component Name

Preliminary Procedures

Windshield Washer Nozzle (Qty: 2)

Procedure

Pinch the rear retainer on the washer nozzle first followed by the front retainer.
Push the nozzles outward from the hood in order to remove.
