Hood Insulator Replacement

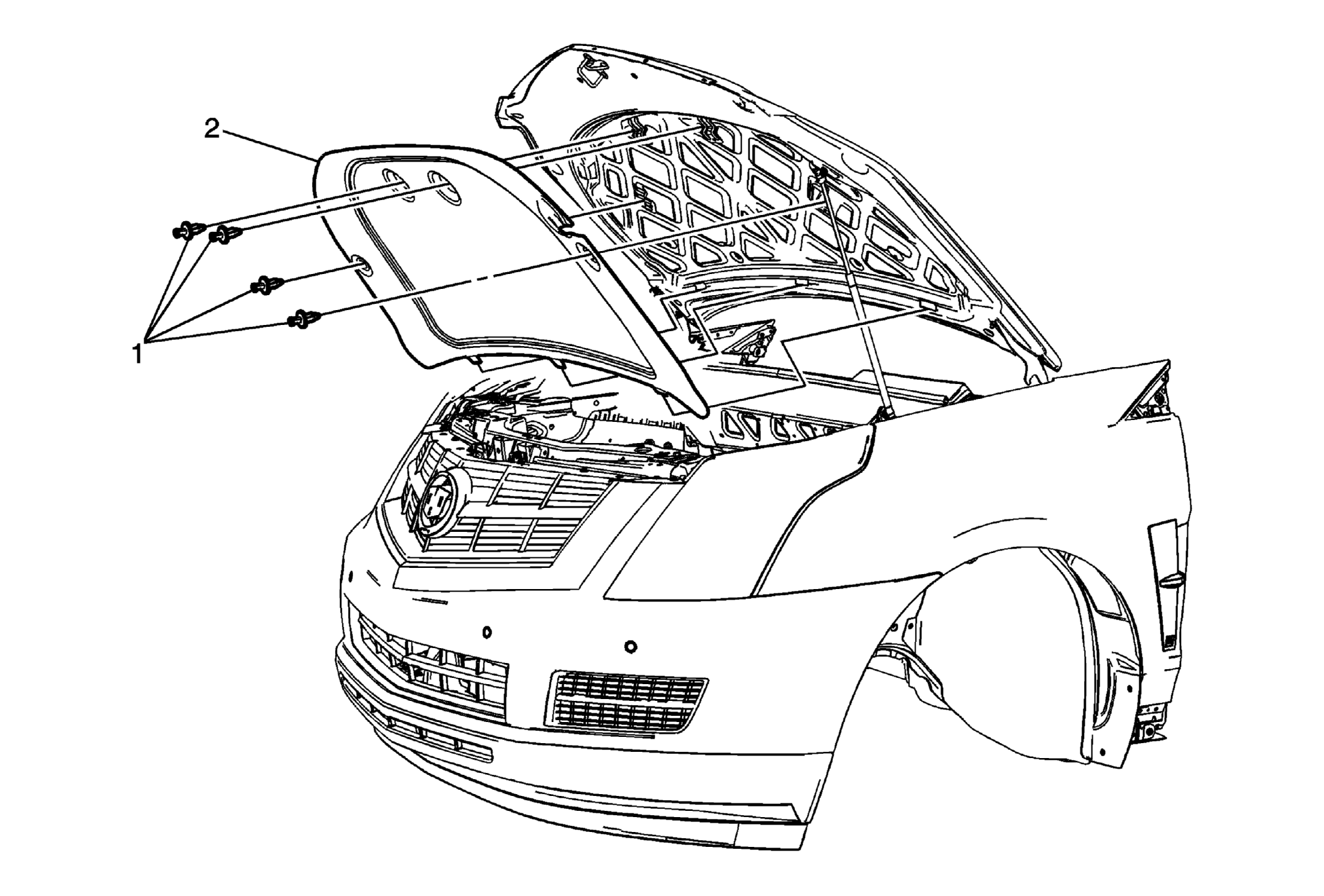

Fig 1: Identifying Hood Insulator & Retainers
GM2225904Courtesy of GENERAL MOTORS COMPANY
Hood Insulator Replacement

Callout Component Name
1 Hood Insulator Plastic Retainer (Qty: 4)
2 Hood Insulator
Procedure
Ensure the 3 integral tabs are secured to the hood.
