Headlamp Washer Hose Replacement

Preliminary Procedures

1. Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .
2. Drain the windshield washer solvent into a clean suitable container.
3. Disconnect the headlamp washer pump hose from the headlamp washer hose.
4. Disengage the rear portion of the headlamp washer hose from the two clips securing the headlamp washer hose to the left inner wheelhouse panel.
5. Remove the front bumper upper fascia. Refer to Front Bumper Upper Fascia Replacement .

Procedure

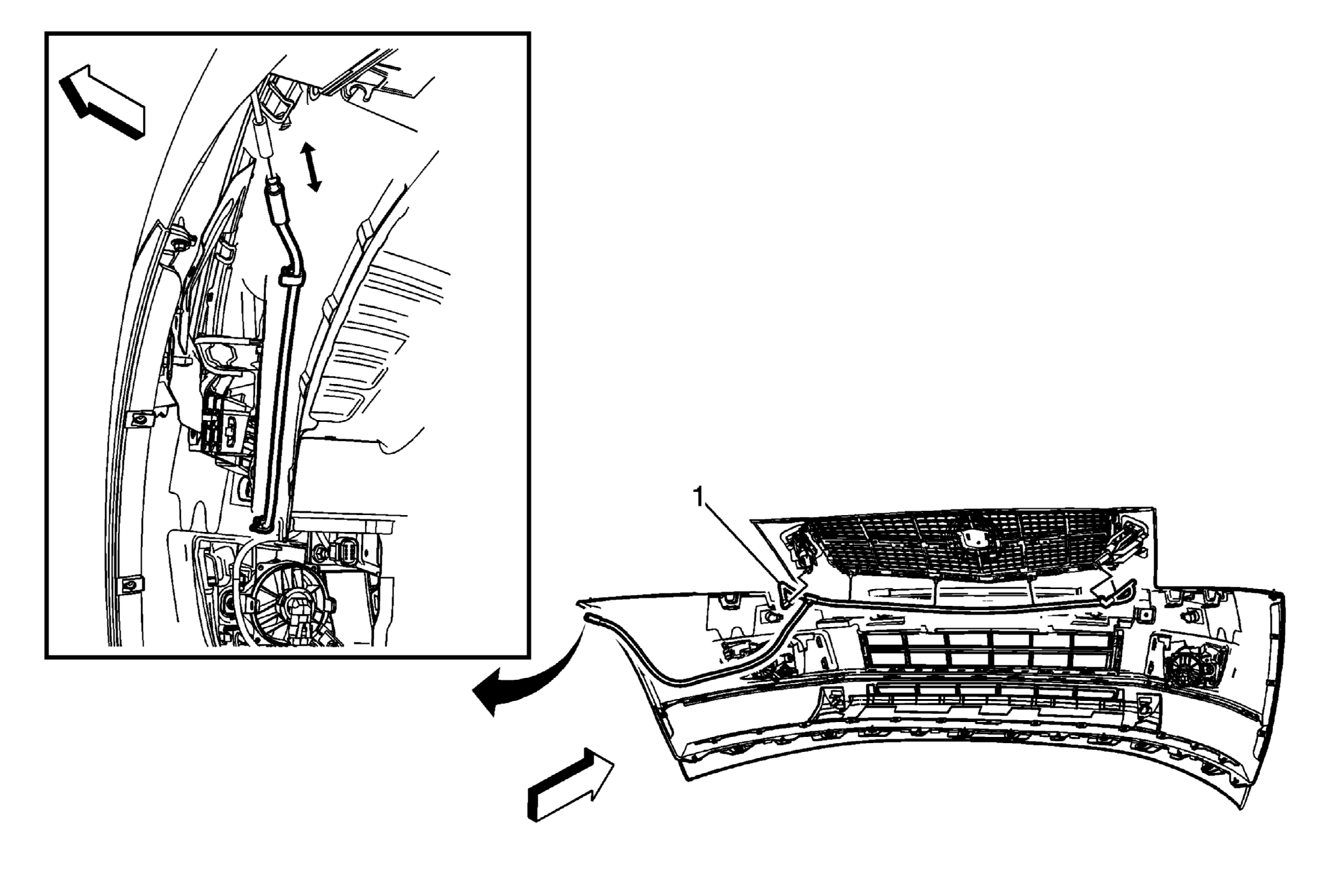

1. Disconnect the headlamp washer hose from both headlamp washer nozzles.
2. Disconnect the four retainer clips securing the headlamp washer hose across the front upper grille assembly tabs.
3. Remove the headlamp washer hose.
4. Ensure to prime the headlamp washer system after any connection is disassembled for service.
