Rear Side Door Window Upper Reveal Molding Replacement

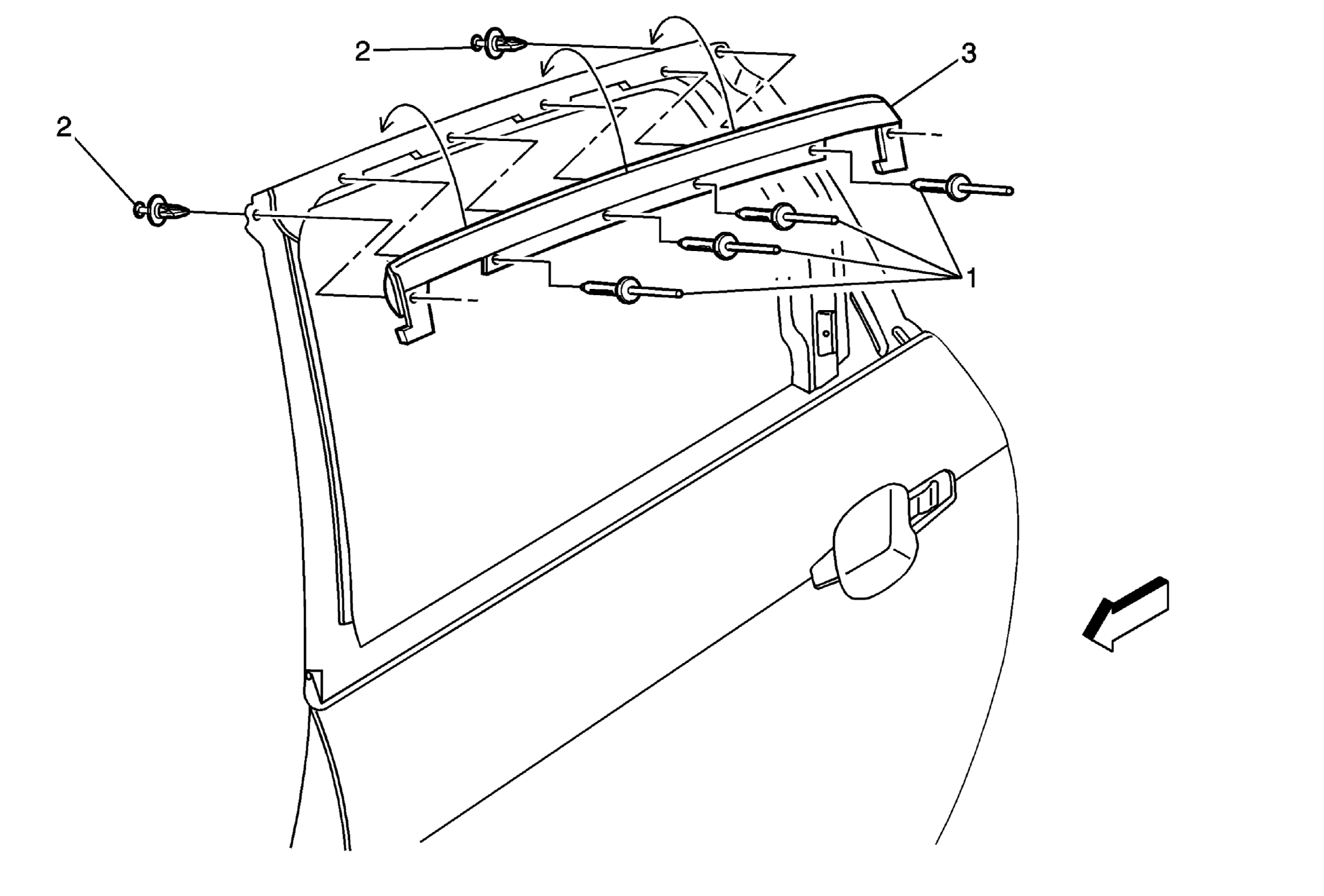

Fig 1: Identifying Rear Side Door Window Upper Reveal Molding & Rivets

Courtesy of GENERAL MOTORS COMPANY

Callous	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning Preliminary Procedures Remove the rear side door window. Refer to Rear Side Door Window Replacement . Remove the rear side door front window frame applique. Rear Side Door Window Frame Front Applique Replacement . Remove the rear side door rear window frame applique. Rear Side Door Window Frame Rear Applique Replacement .
1	Rear Side Door Window Upper Reveal Molding Rivets (Qty: 4) Procedure Lower the run channel weatherstrip, by grasping both upper inner corners and pull downward to expose the rivets. Do Not remove it from the door. When drilling cover/protect the interior trim and door from the metal shavings. The rivets are located in the inner upper door frame. Use a suitable tool, drill out the rivets from around the upper door frame.
2	Rear Side Door Window Upper Reveal Molding Retainers (Qty: 2)
3	Rear Side Door Window Upper Reveal Molding Procedure Using a suitable tool, install the rivets in the upper door frame. NOTE: After drilling out the rivets check the door and the upper door frame for loose rivets ends. This will prevent rattles.
