Rear Side Door Window Frame Rear Applique Replacement

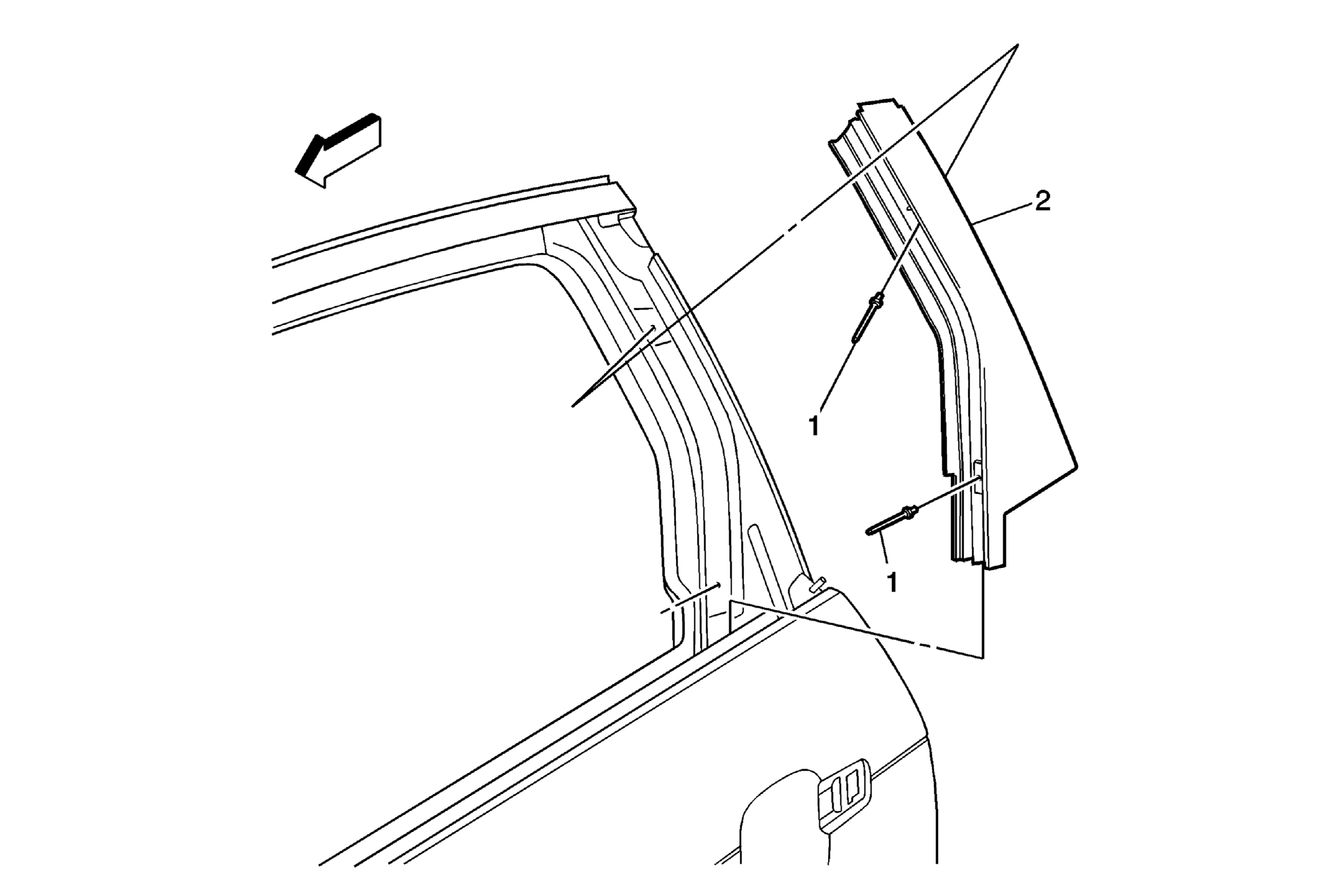

Fig 1: View Of Rear Side Door Window Frame Rear Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door window belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement .
1	Rear Side Door Window Frame Rear Applique Fastener (Qty: 2) WARNING: Refer to Glass and Sheet Metal Handling Warning Procedure Lower the window to the fully down position. Pull the rear side door window weatherstrip from the front applique to expose the rivets. When drilling cover/protect the interior trim and door from the metal shavings. Using a suitable tool, drill out the rivets from the rear door frame applique.
2	Rear Side Door Window Frame Rear Applique Procedure Use a suitable tool, install the rivets in the rear side door frame.

Callout

Component Name

Preliminary Procedure
Remove the rear side door window belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement .

Rear Side Door Window Frame Rear Applique Fastener (Qty: 2)

WARNING:

Procedure

Lower the window to the fully down position.
Pull the rear side door window weatherstrip from the front applique to expose the rivets.
When drilling cover/protect the interior trim and door from the metal shavings.
Using a suitable tool, drill out the rivets from the rear door frame applique.

Rear Side Door Window Frame Rear Applique
Procedure
Use a suitable tool, install the rivets in the rear side door frame.
