Rear Seat Track Rear Inboard Cover Replacement

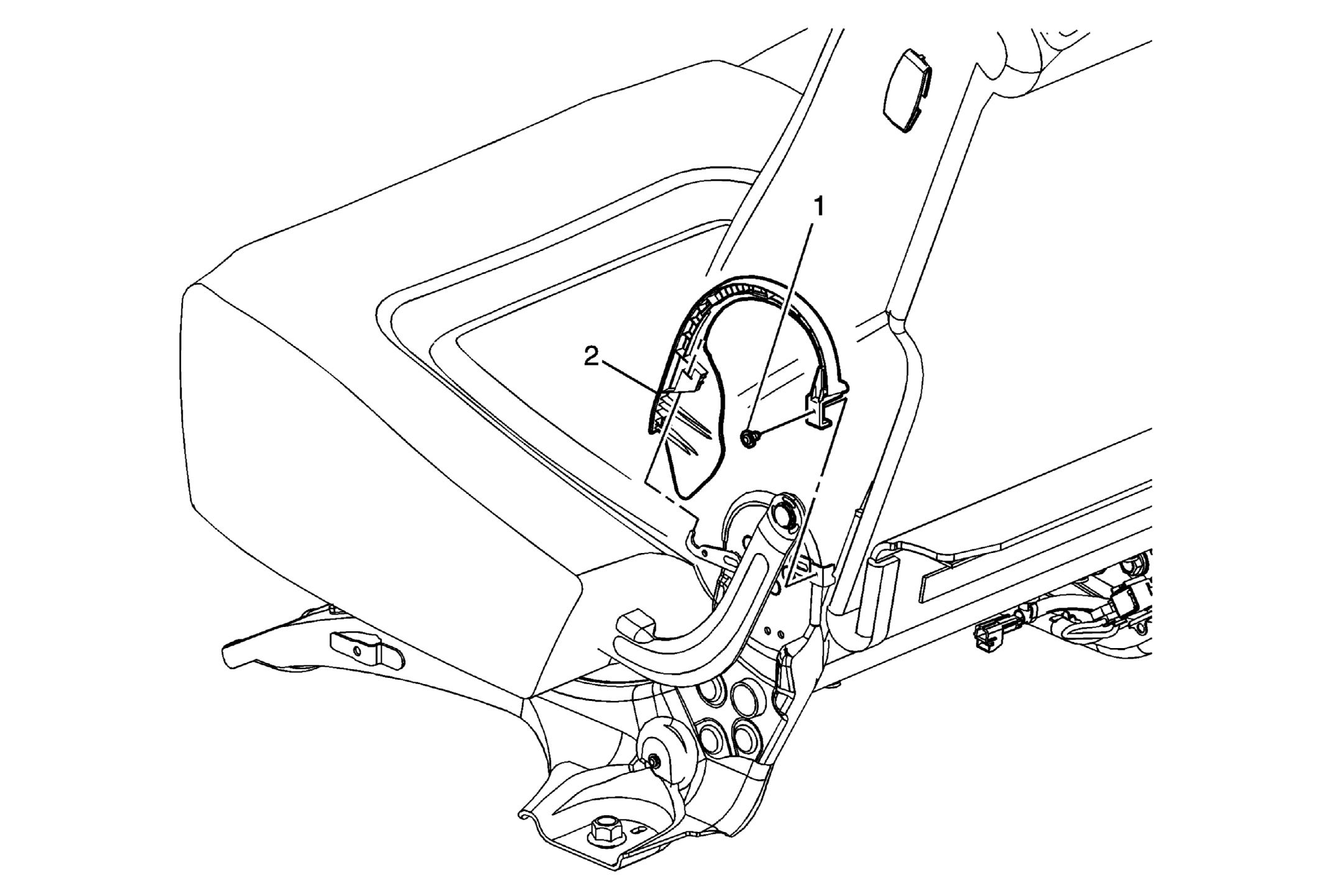

Fig 1: View Of Rear Seat Track Rear Inboard Cover & Retainers

Courtesy of GENERAL MOTORS COMPANY

Rear Seat Track Rear Inboard Cover Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear seat track rear outbound cover. Refer to Rear Seat Track Rear Outboard Cover Replacement
1	Rear Seat Track Rear Inboard Cover Retainer CAUTION: Refer to Fastener Caution . Tighten  4 N.m (35 lb in)
2	Rear Seat Track Rear Inboard Cover
