Rear Seat Head Restraint Guide Replacement (Outboard)
Rear Seat Head Restraint Guide Replacement (Outboard)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement (Outboard) , Rear Seat Head Restraint Replacement (Center) . |
|

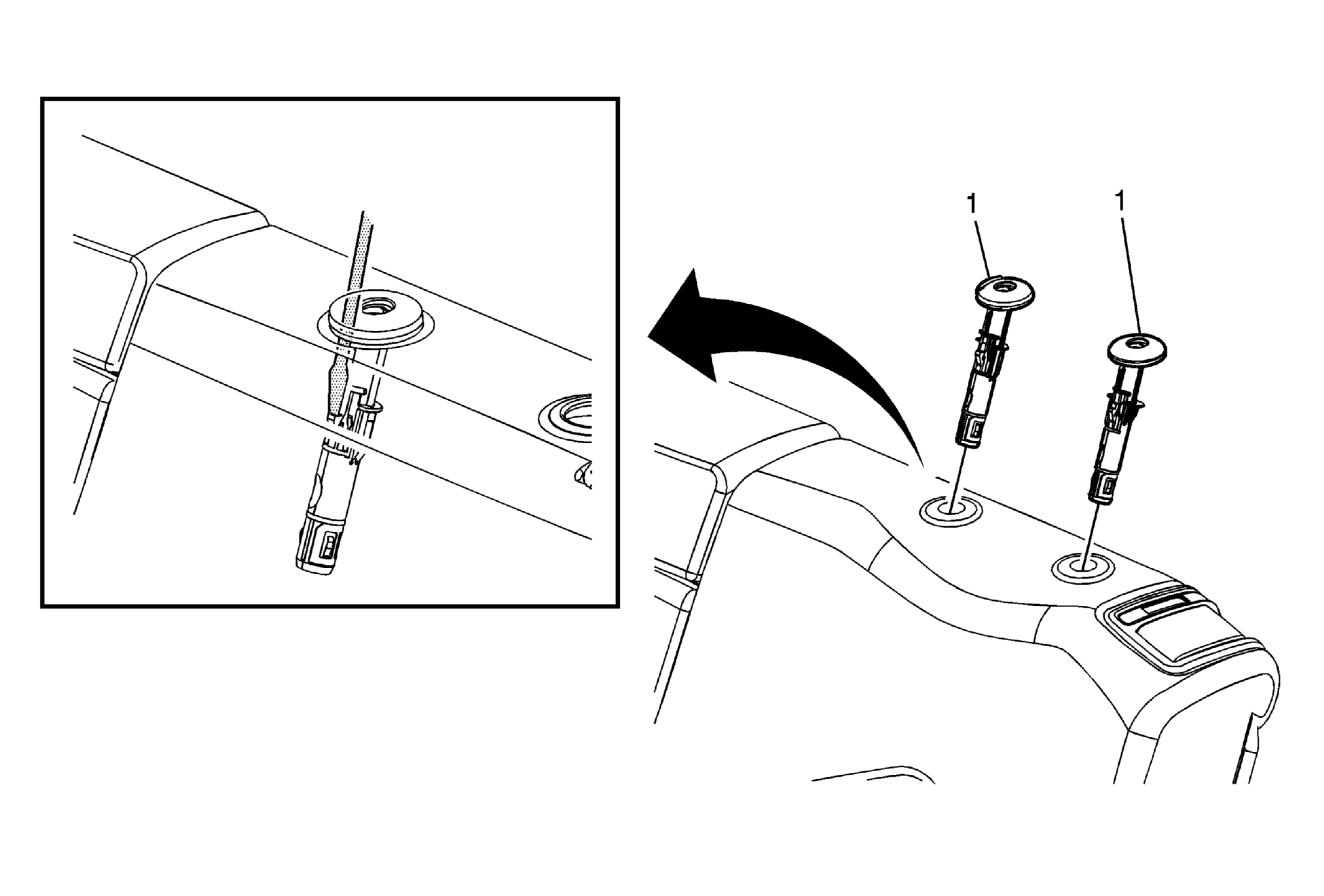

| 1 | Rear Seat Head Restraint Guide Procedure Using a suitable flat-bladed tool, slide the tool between the cushion and the guide until you find the slot on the outboard side of the guide. Push inward on the guide slot tab , while pulling upward to remove the guide from the seat back frame. |
