Rear Seat Armrest Compartment Door Replacement

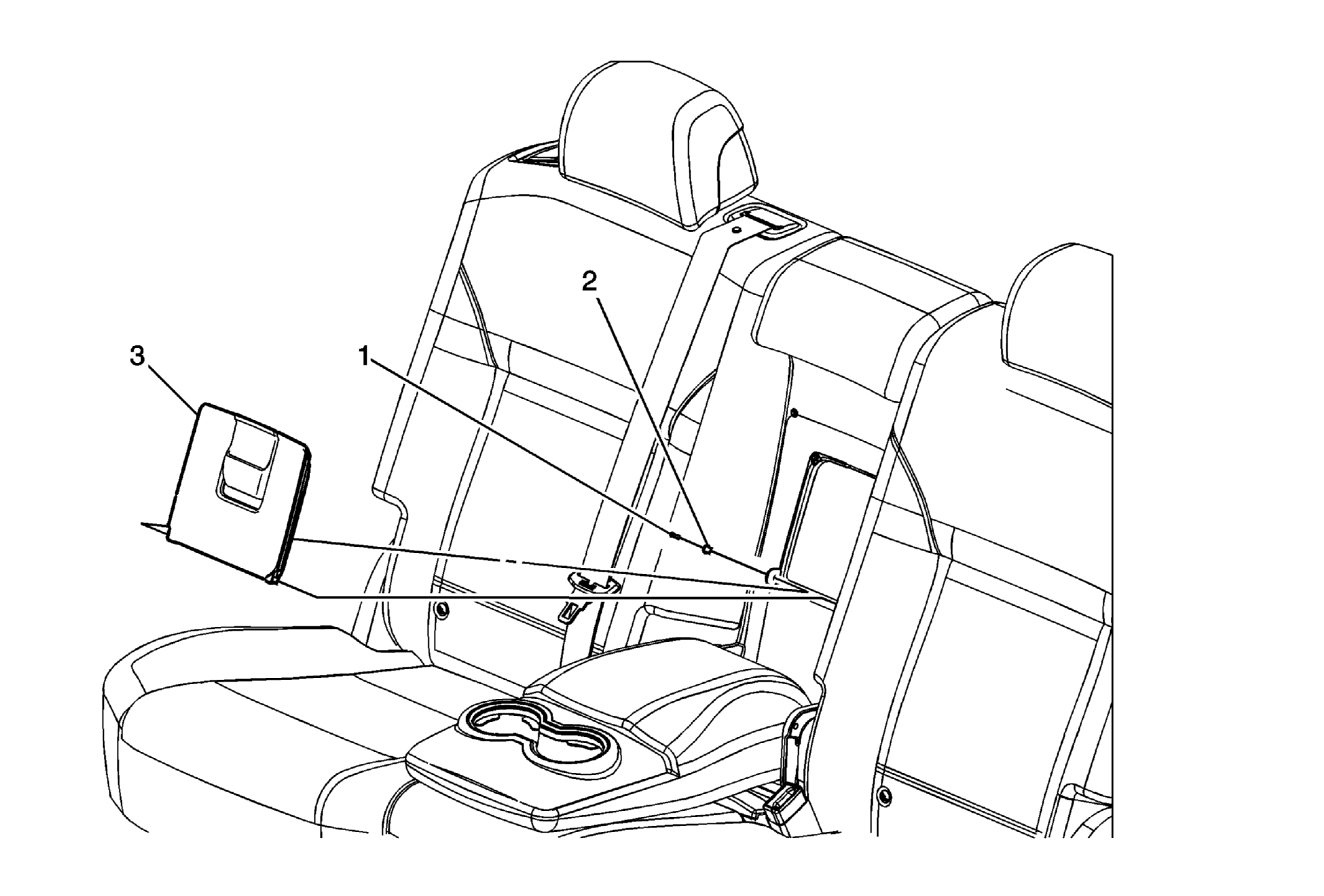

Fig 1: View Of Rear Seat Armrest Compartment Door, Bushing & Fastener

Courtesy of GENERAL MOTORS COMPANY

Rear Seat Armrest Compartment Door Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear seat back cushion center panel. Refer to Rear Seat Back Cushion Center Panel Replacement .
1	Rear Seat Armrest Compartment Door Fastener Procedure  Separate the armrest closeout panel from the armrest frame to gain access to the door fastener.
2	Rear Seat Armrest Compartment Door Bushing
3	Rear Seat Armrest Compartment Door
