Front Seat Outer Recliner Inner Finish Cover Replacement

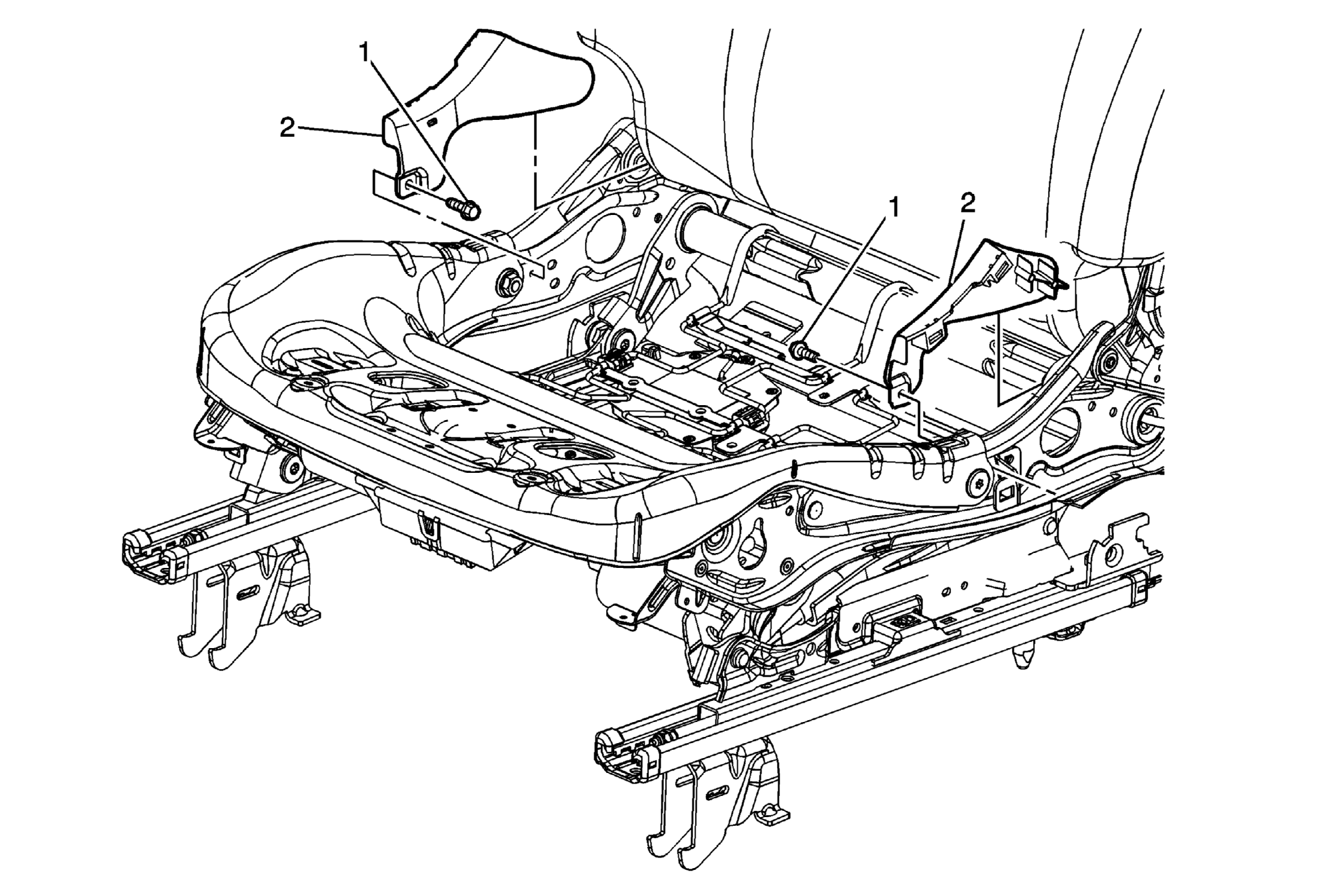

Fig 1: View Of Front Seat Outer Recliner Inner Finish Cover & Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1	Front Seat Outer Recliner Inner Finish Cover Retainer CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Seat Outer Recliner Inner Finish Cover

Callout

Component Name

Preliminary Procedure

Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .

Front Seat Outer Recliner Inner Finish Cover Retainer

CAUTION:

Tighten
2 N.m (18 lb in)

Front Seat Outer Recliner Inner Finish Cover
