Removal Procedure

  1. Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
  2. Remove the front seat adjuster, if equipped. Refer to Front Seat Adjuster Replacement .
  3. Remove the front seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement .
  4. Remove the front seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement .
    5. Fig 1: View Of Seat Cushion Cover & Pad
    GM2489753Courtesy of GENERAL MOTORS COMPANY
  5. Remove the rear retainers on the seat cushion cover from the seat frame.
  6. Disengage the J-channel retainers from the seat frame.
  7. Disconnect the electrical connector, if equipped.
  8. Disconnect the duct from the vent fan, if equipped.
  9. Remove the seat cushion cover and pad (1) from the seat cushion frame as an assembly.

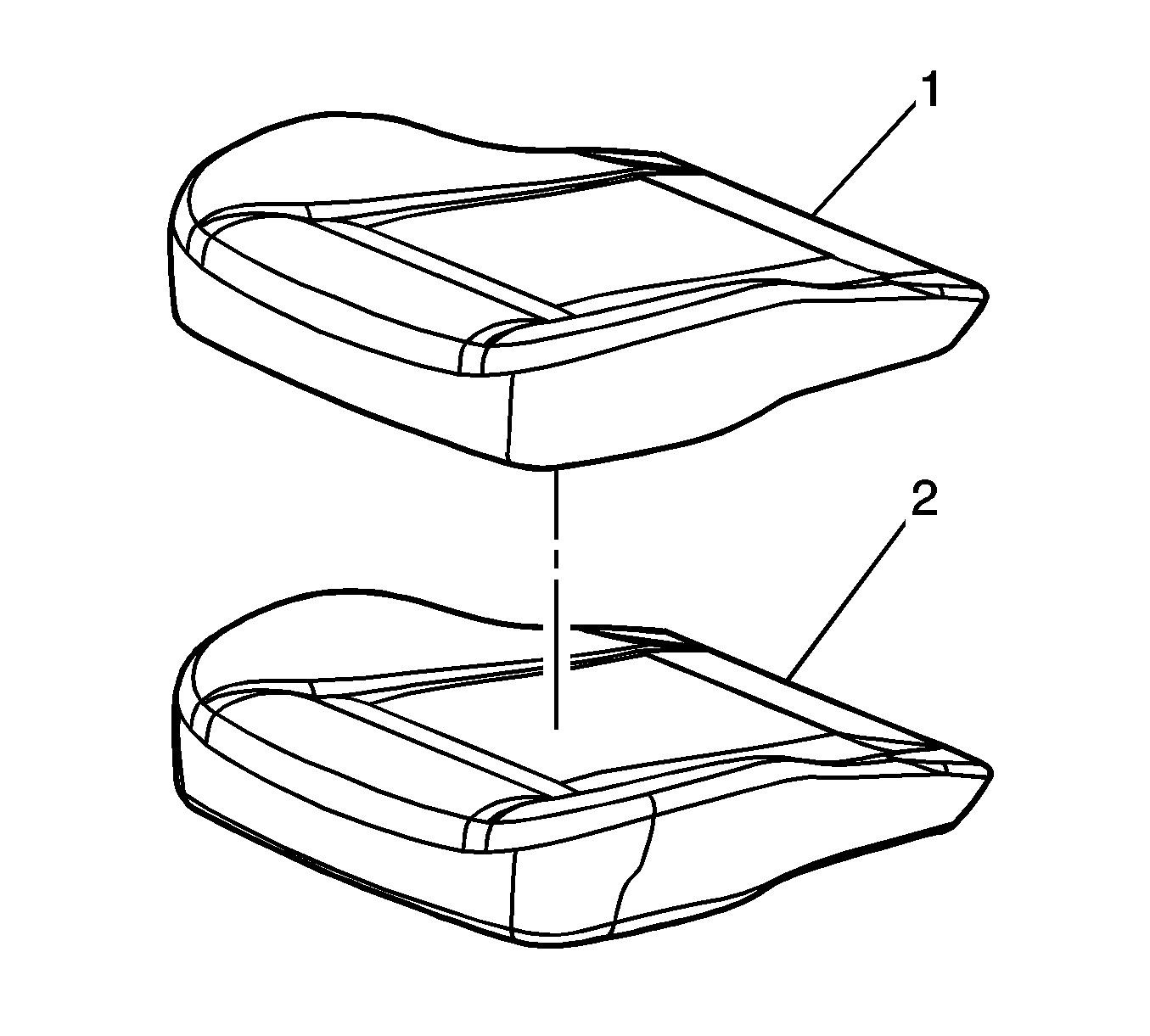

    10. Fig 2: View Of Cushion Cover & Pad
    GM2489763Courtesy of GENERAL MOTORS COMPANY
  10. Remove the hog rings from the under side of the seat cover.
  11. Pull the cushion cover (1) off of the pad (2).
  12. When replacing the front passenger seat cushion, you must also replace the inflatable restraint passenger presence system. Refer to Airbag Front Passenger Presence Sensor Replacement .
