Driver or Passenger Seat Back Cushion Frame Replacement

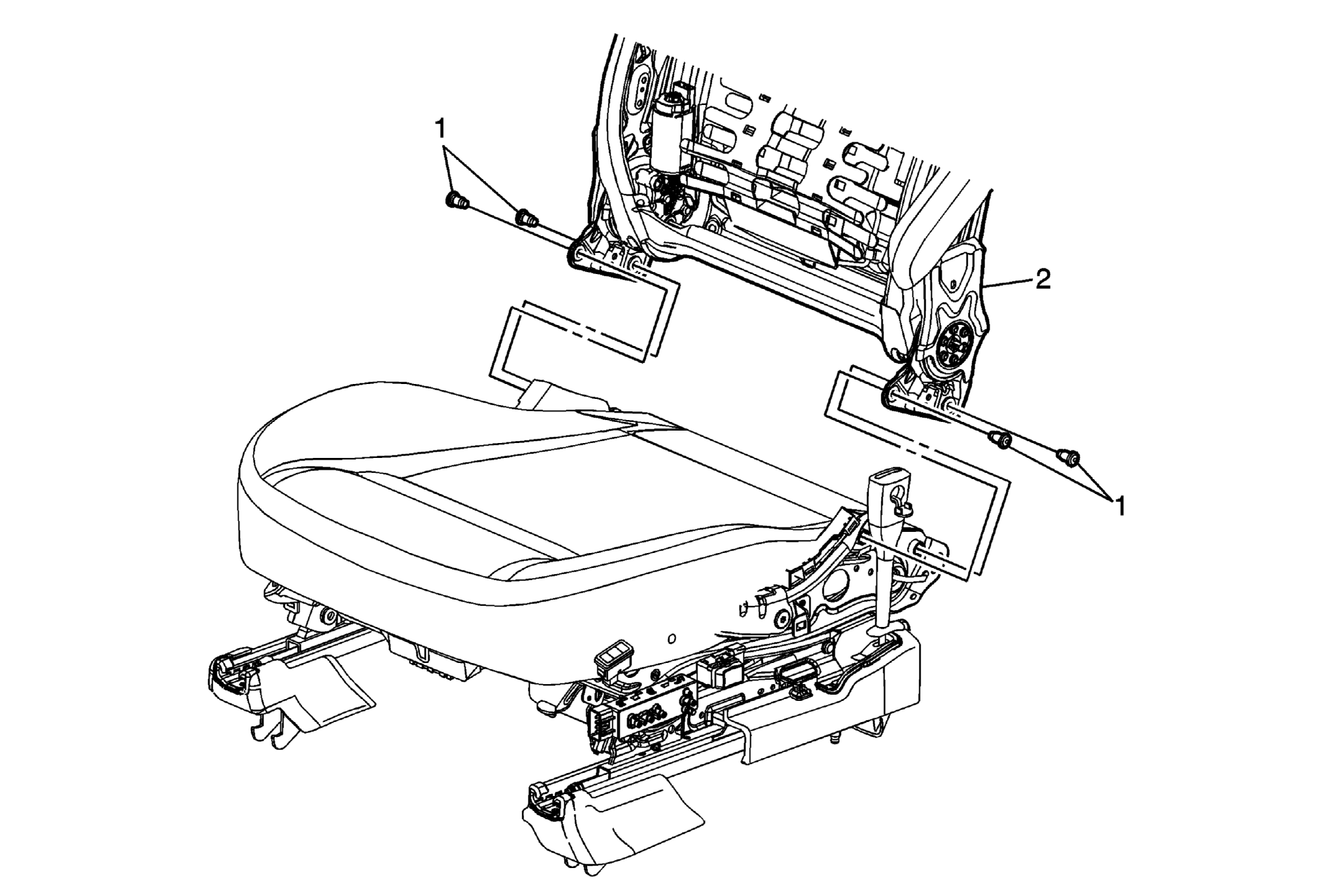

Fig 1: Identifying Seat Back Cushion Frame & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the driver or passenger seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement . Remove the driver or passenger seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement .
1	Driver or Passenger Seat Back Cushion Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft)
2	Driver or Passenger Seat Back Cushion Frame Procedure Disconnect electrical connectors as needed. If replacing with a new front seat back cushion frame, transfer components as necessary.

Callout

Component Name

WARNING:

Preliminary Procedures

Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the driver or passenger seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement .
Remove the driver or passenger seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement .

Driver or Passenger Seat Back Cushion Frame Bolt (Qty: 4)

CAUTION:

Tighten
35 N.m (26 lb ft)

Driver or Passenger Seat Back Cushion Frame

Procedure

Disconnect electrical connectors as needed.
If replacing with a new front seat back cushion frame, transfer components as necessary.
