Instrument Panel Compartment Door Dampener Replacement (Center Compartment)

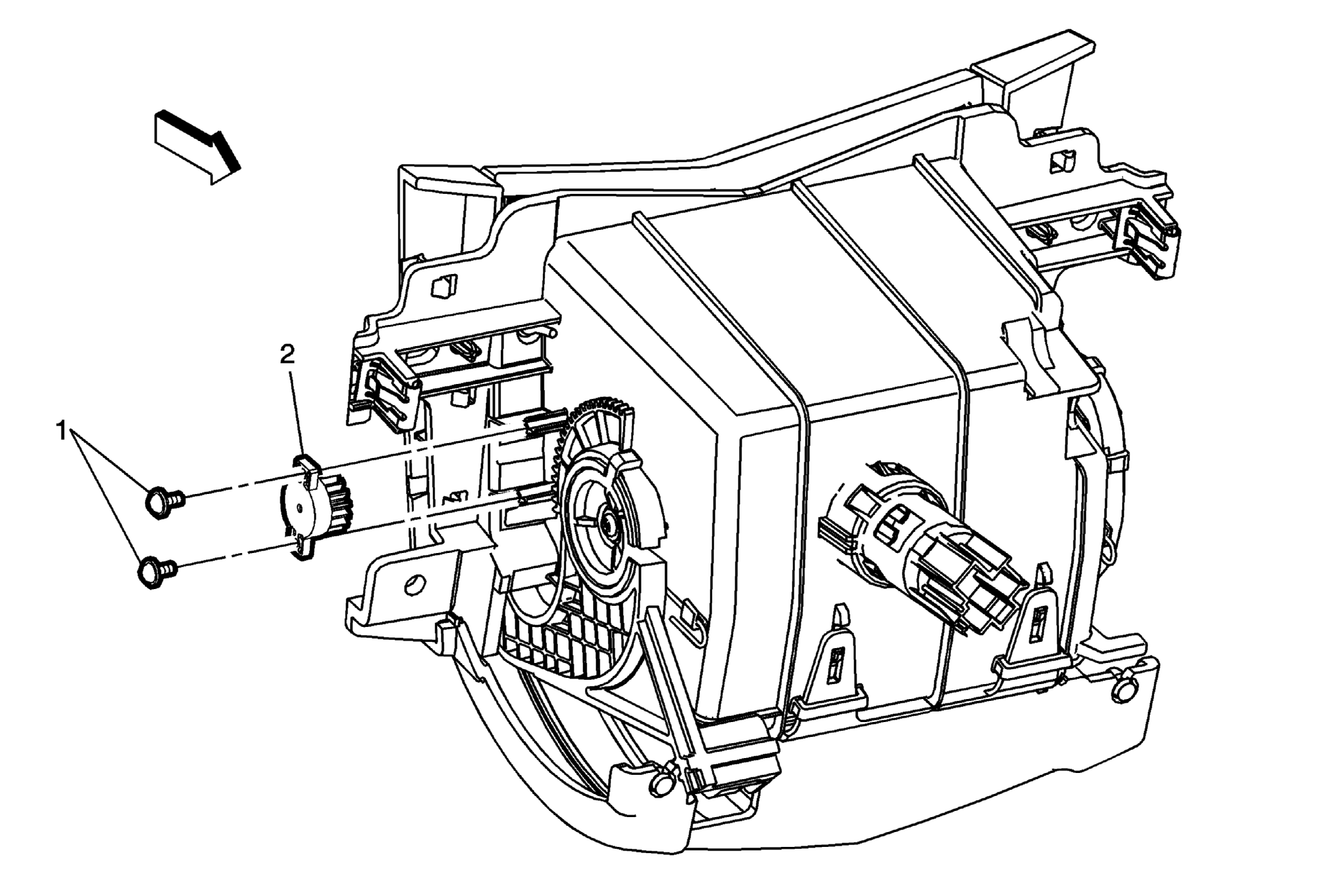

Fig 1: Identifying Instrument Panel Compartment Door Dampener (Center Compartment)

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment Door Dampener Replacement (Center Compartment)

Callout	Component Name
Preliminary Procedures  Remove the instrument panel center compartment assembly. Refer to Instrument Panel Center Compartment Replacement .
1	Instrument Panel Center Compartment Door Dampener Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Center Compartment Door Dampener
