Front Turn Signal Lamp Bulb Replacement (TT6, TT7, TT8, T84, T85 Driver Side)

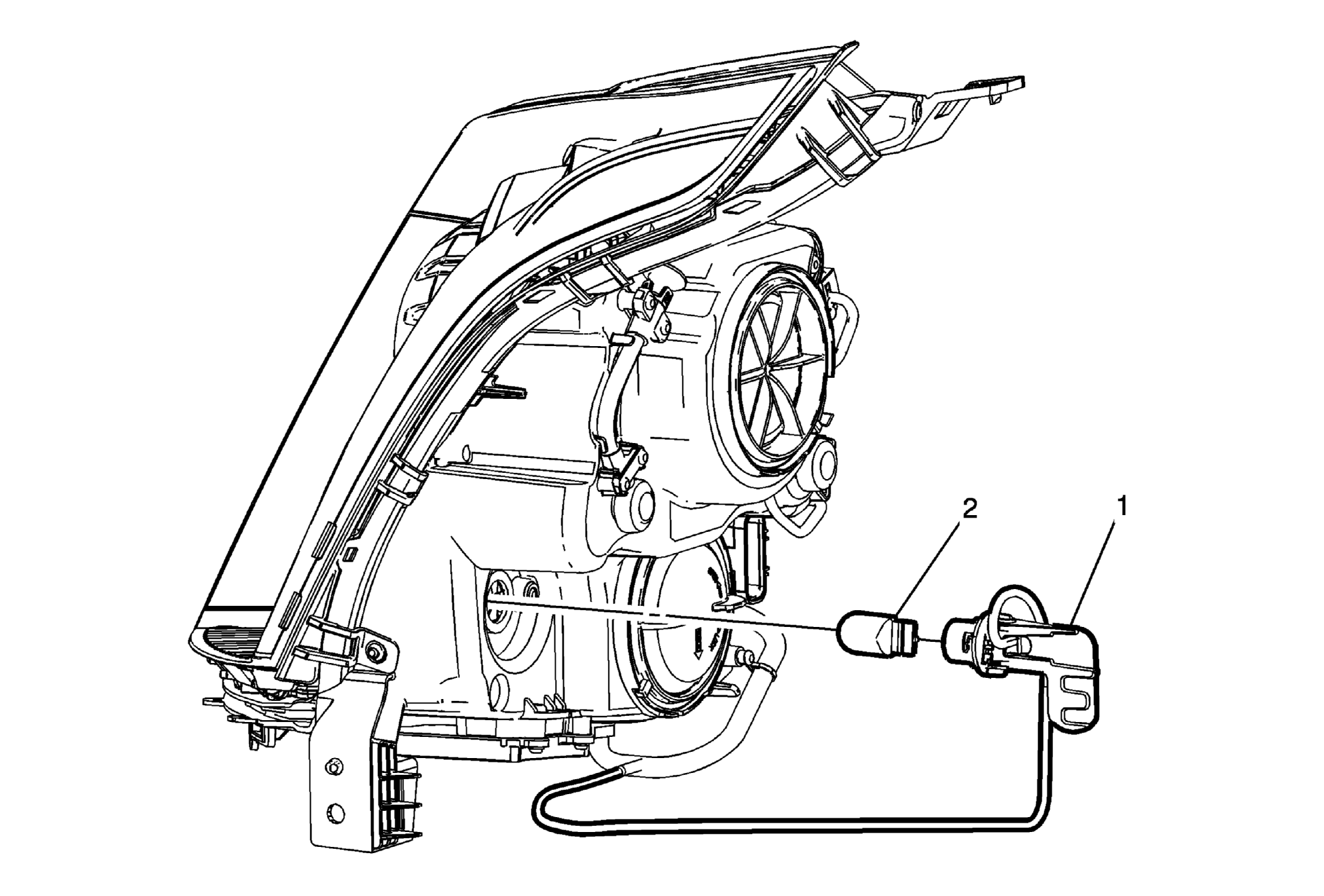

Fig 1: Locating Front Turn Signal Lamp Bulb (TT6,TT7,TT8 Driver Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns: Never open the high intensity discharge system ballast or the arc tube assembly starter. Never probe between the high intensity discharge system ballast output connector and the arc tube assembly. WARNING: The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system. Preliminary Procedure Remove the driver side headlamp. Refer to Headlamp Replacement .
1	Front Park Turn Signal Lamp Bulb Socket WARNING: Refer to Halogen Bulb Warning . Procedure Rotate the bulb socket counterclockwise and pull out.
2	Front Park Turn Signal Lamp Bulb Procedure Rotate the bulb straight out from the socket.
