Instrument Panel Center Air Outlet Replacement
Instrument Panel Center Air Outlet Replacement

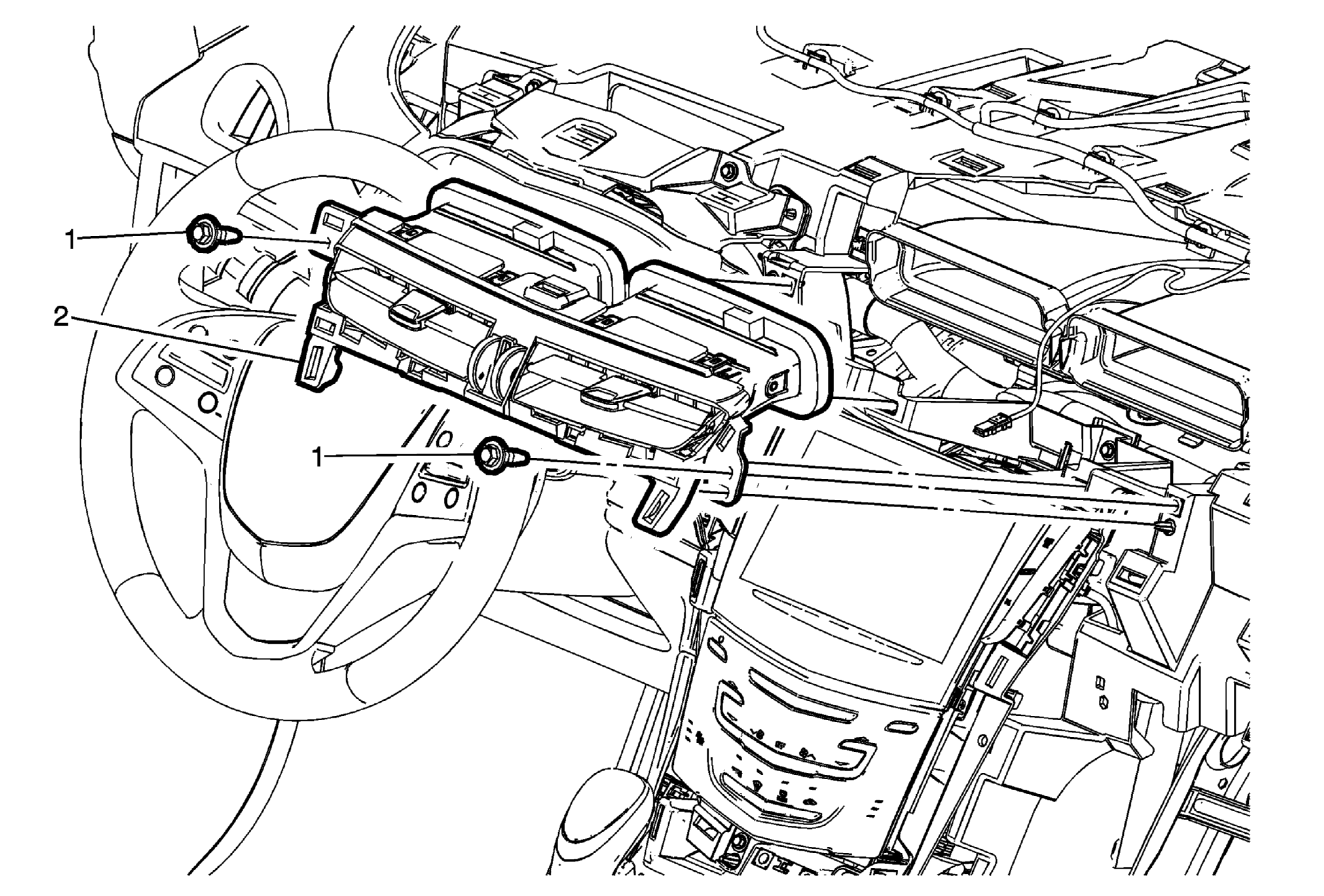

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement - Right Side . |
|
| 1 | Instrument Panel Center Air Outlet Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 (22 lb in) |
| 2 | Instrument Panel Center Air Outlet |
