Right Side of Engine Compartment Harness Routing

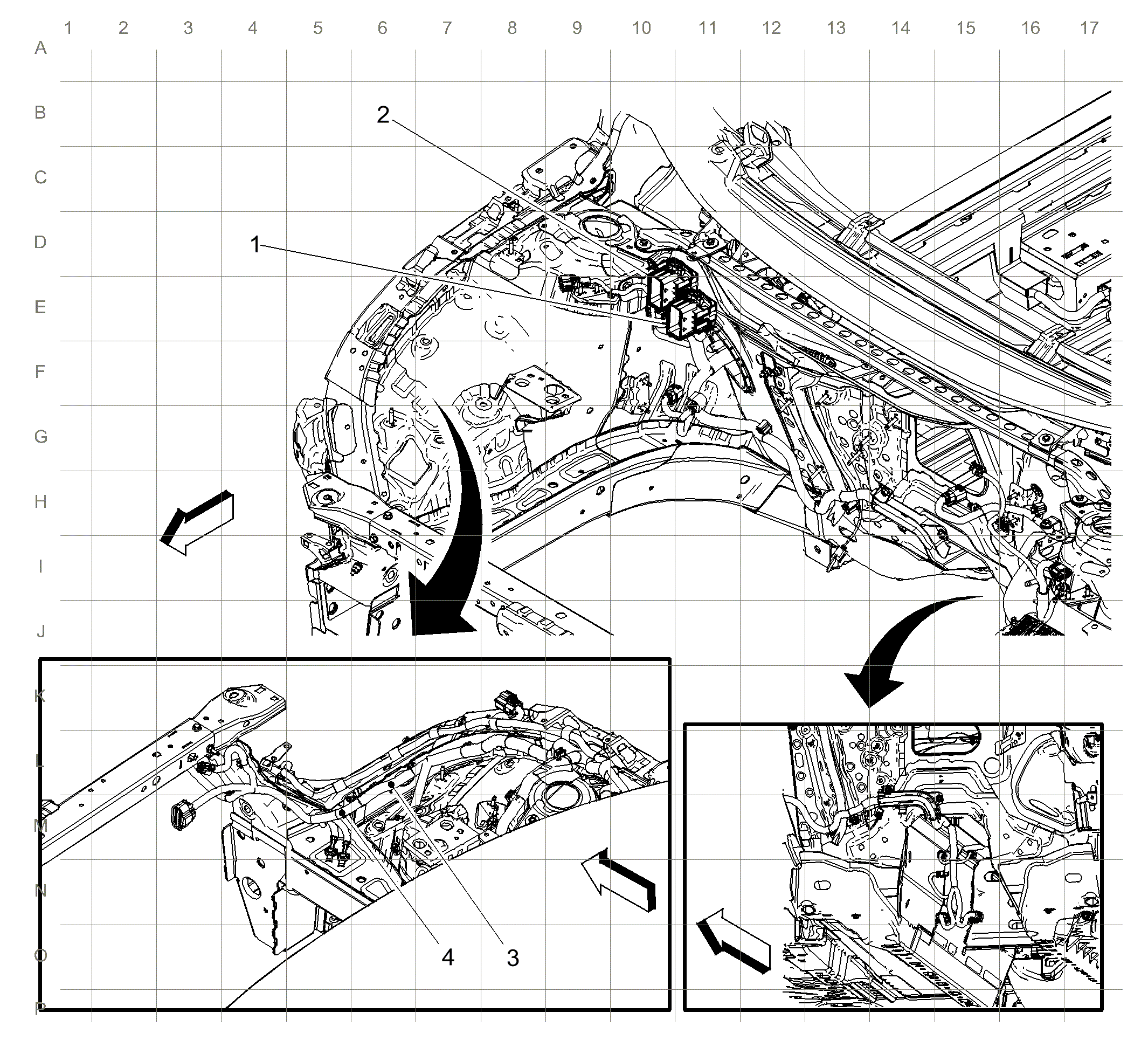

Fig 1: Right Side of Engine Compartment Harness Routing
GM3617122Courtesy of GENERAL MOTORS COMPANY
Items
1:  X107 X107 Forward Lamp Harness to Body Harness
2:  X105 X105 Forward Lamp Harness to Body Harness
3:  J114
4:  J106
