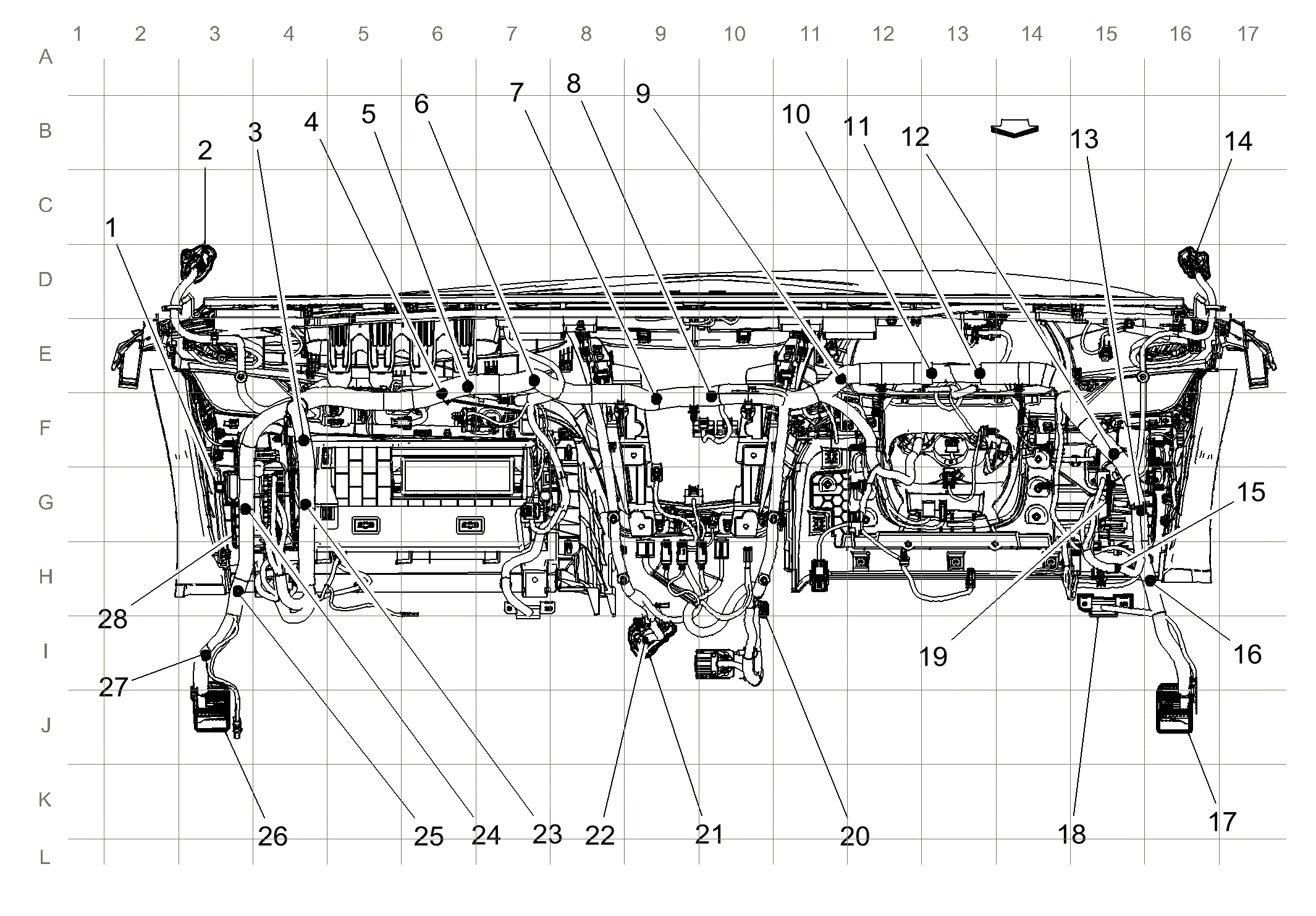

| 1:
JX301 |
| 2:
X325 X325 Headliner Harness to Instrument Panel Harness |
| 3:
J233 |
| 4:
J218 |
| 5:
J217 |
| 6:
J216 |
| 7:
J232 |
| 8:
J221 |
| 9:
J215 |
| 11:
J234 |
| 12:
J214 |
| 13:
J212 |
| 14:
J227 |
| 15:
X326 X326 Headliner Harness to Instrument Panel Harness |
| 17:
J230 |
| 18:
X225 X225 Instrument Panel Harness to Body Harness |
| 19:
X84B Auxiliary Data Connector X84B Auxiliary Data Link Connector |
| 20:
X51L Fuse Block - Instrument Panel Left X51L Fuse Block - Instrument Panel Left Wire Entry |
| 21:
X213 X213 Auxiliary Audio Input Jumper to Human Machine Interface Jumper |
| 22:
X315 X315 Console Harness to Instrument Panel Harness |
| 23:
J208 |
| 24:
J219 |
| 25:
J208 |
| 26:
J231 |
| 27:
X275 X275 Instrument Panel Harness to Body Harness |
| 28:
J222 |
| 29:
X51R Fuse Block - Instrument Panel Right X51R Fuse Block - Instrument Panel Right Wire Entry |
