Left Front of Passenger Compartment Harness Routing

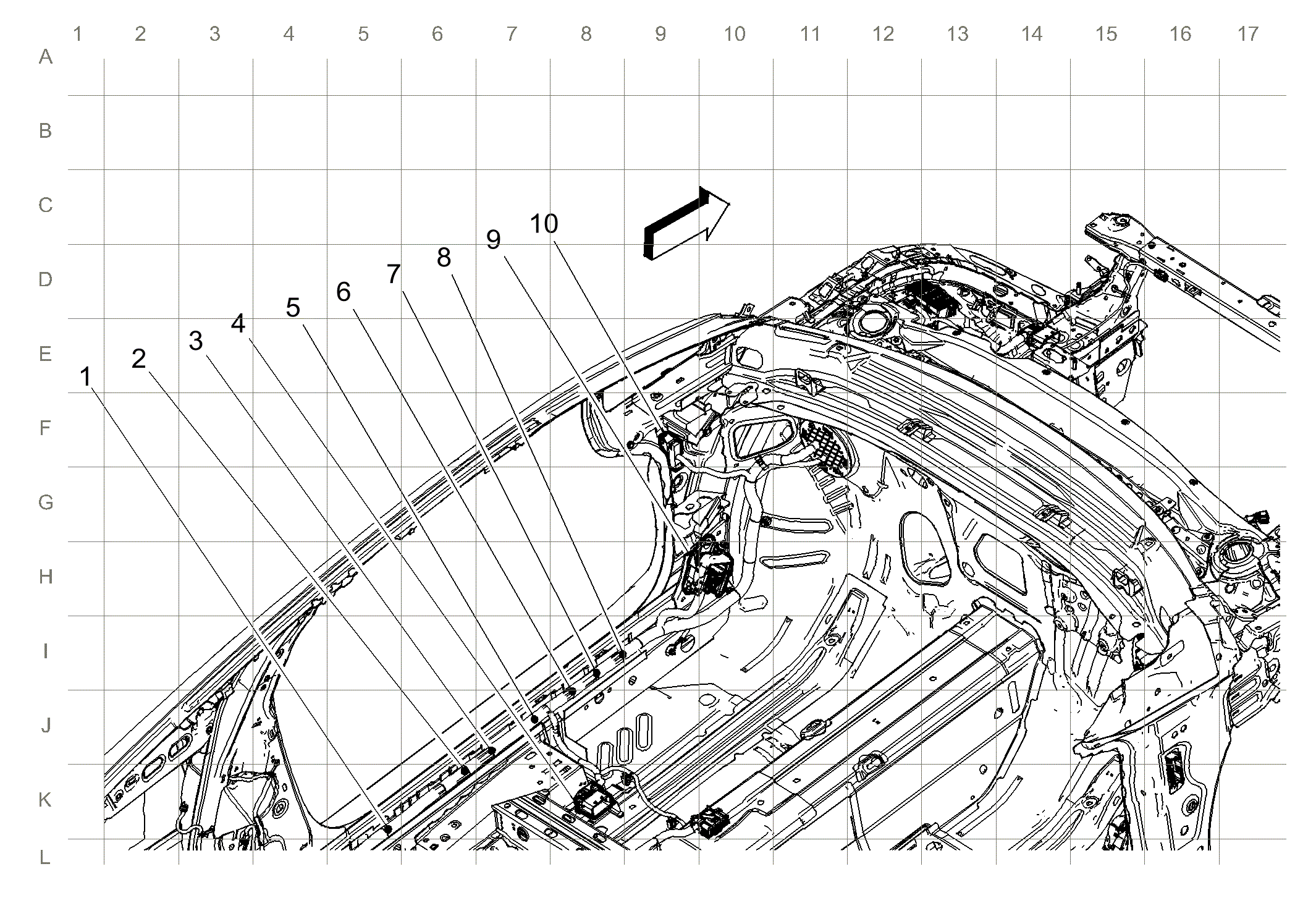

Fig 1: Left Front of Passenger Compartment Harness Routing
GM3617115Courtesy of GENERAL MOTORS COMPANY
Items
1:  J312
2:  J303
3:  J328
4:  X310 X310 Driver Seat Harness to Body Harness
5:  J326
6:  J321
7:  J333
8:  J322
9:  X225 X225 Instrument Panel Harness to Body Harness
10:  X500 X500 Driver Door Harness to Body Harness
