Engine Left Front Harness Routing

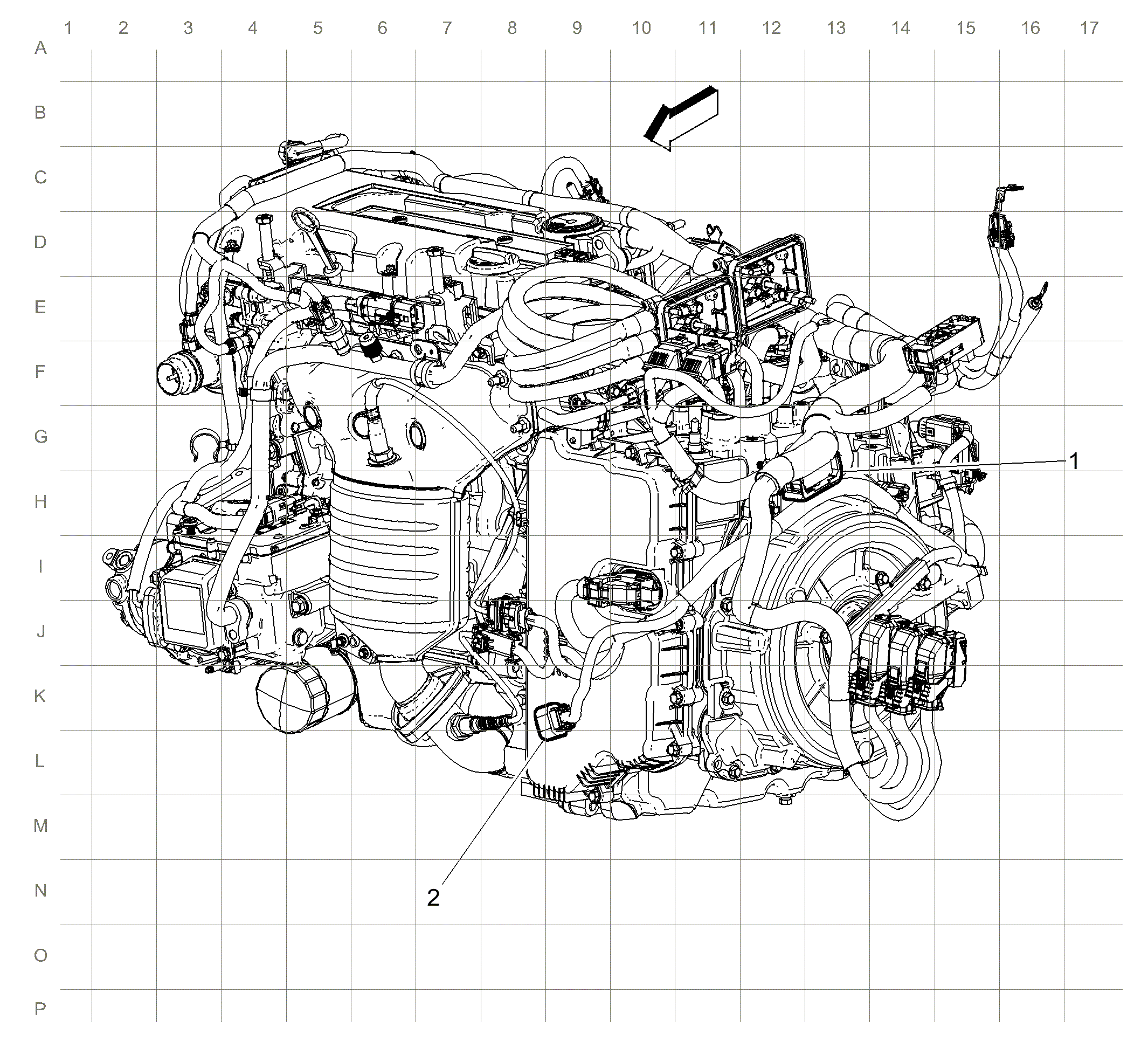

Fig 1: Engine Left Front Harness Routing
GM3617102Courtesy of GENERAL MOTORS COMPANY
Items
1:  X190 X190 Engine Harness to Body Harness
2:  X102 X102 Engine Harness to Cooling Fan Harness
