Instrument Panel Lower Trim Panel Replacement - Left Side

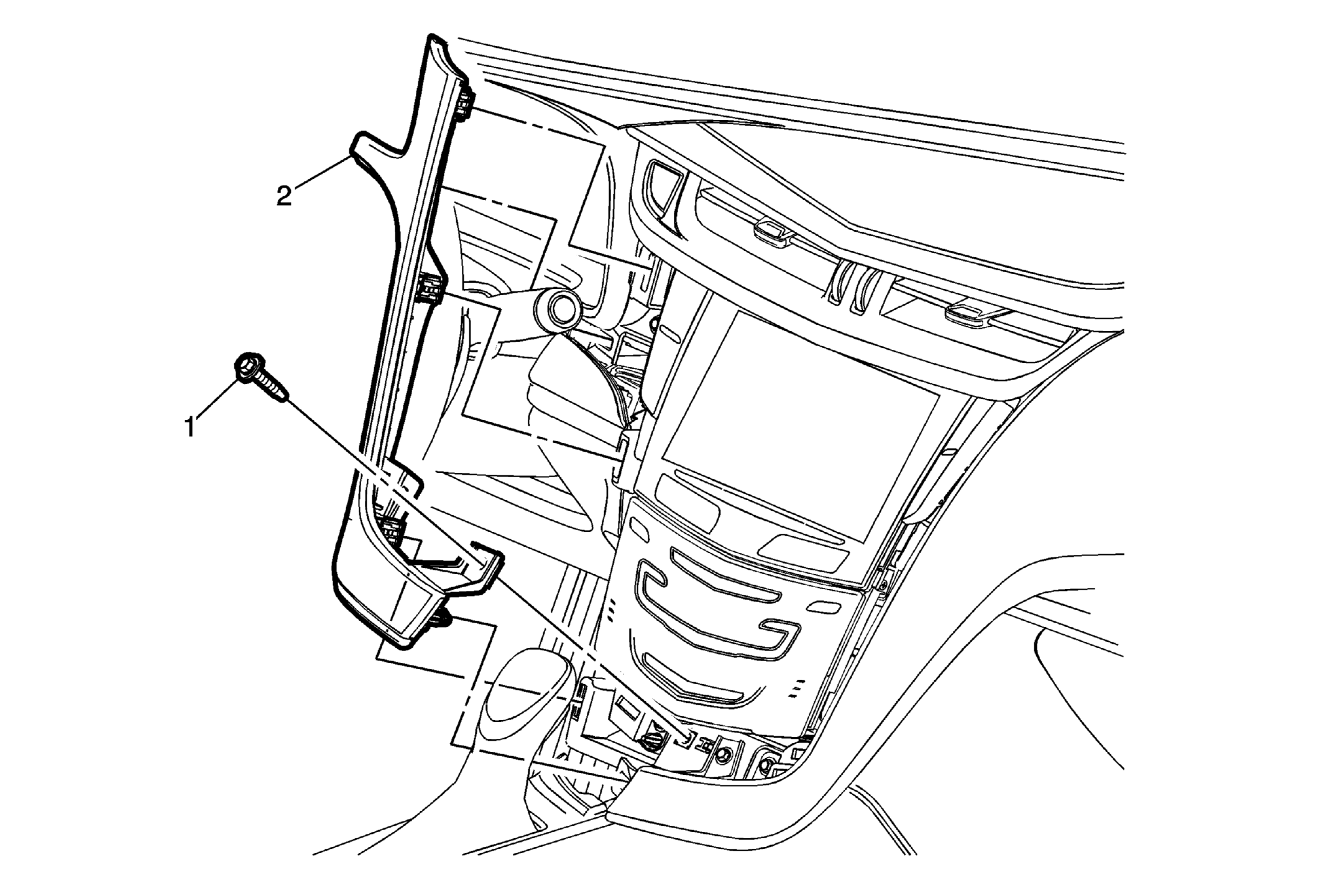

Fig 1: Instrument Panel Lower Trim Panel - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Set parking brake and move the shifter to neutral. Remove the instrument panel accessory center trim plate. Refer to Instrument Panel Accessory Center Trim Plate Replacement Remove the left front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side .
1	Instrument Panel Lower Trim Panel Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 (22 lb in)
2	Instrument Panel Lower Trim Panel Procedure Use a flat bladed plastic trim tool in order to release the retainers securing the trim panel to the instrument panel assembly.

Callout

Component Name

Preliminary Procedure

Set parking brake and move the shifter to neutral.
Remove the instrument panel accessory center trim plate. Refer to Instrument Panel Accessory Center Trim Plate Replacement
Remove the left front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side .

Instrument Panel Lower Trim Panel Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 (22 lb in)

Instrument Panel Lower Trim Panel
Procedure
Use a flat bladed plastic trim tool in order to release the retainers securing the trim panel to the instrument panel assembly.
