Front Floor Console Extension Panel Replacement - Left Side

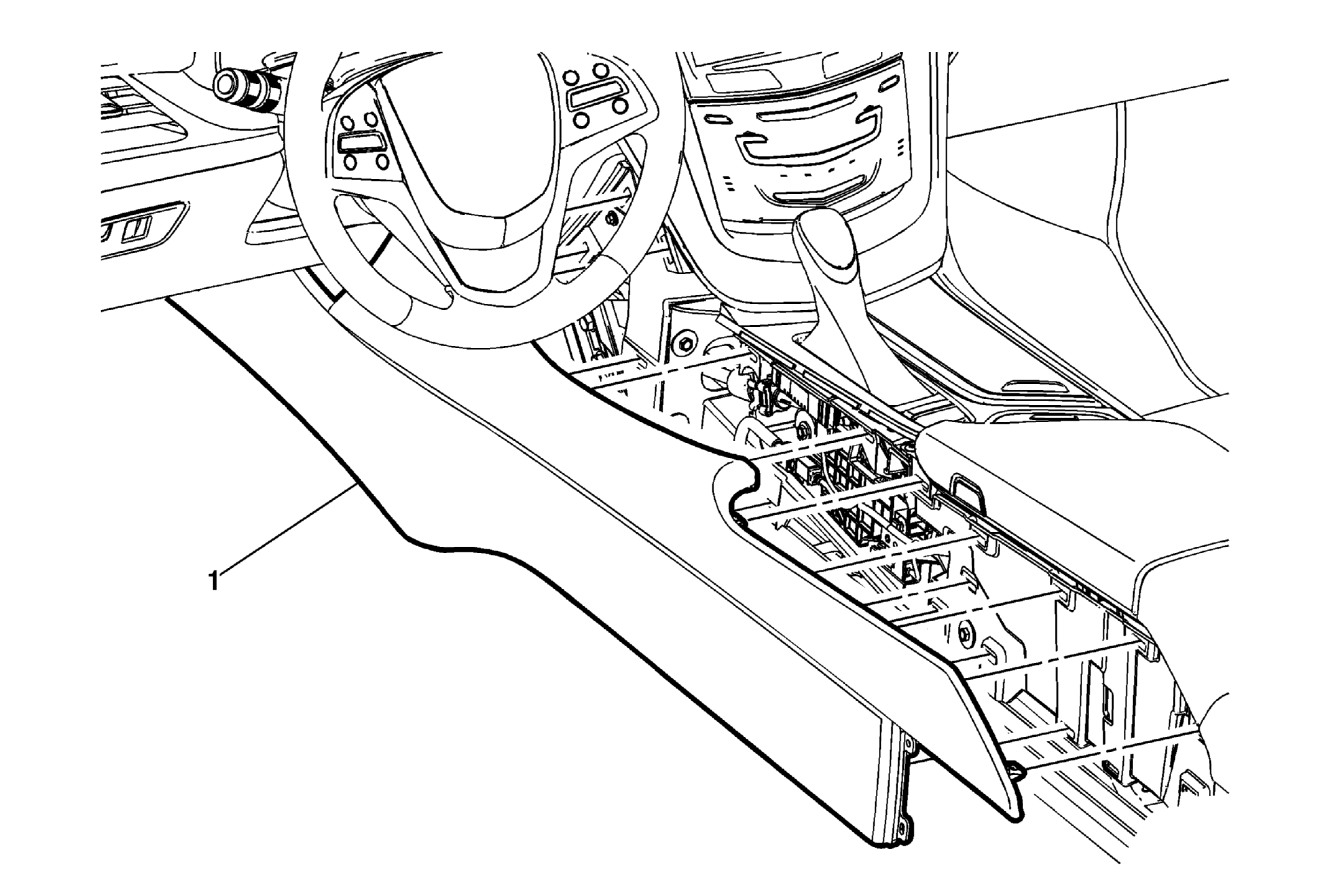

Fig 1: Front Floor Console Extension Panel - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left front floor rear console side trim panel. Refer to Front Floor Rear Console Side Trim Panel Replacement - Left Side .
1	Front Floor Console Extension Panel - Left Side Procedures Move the driver seat rearward. Use a flat-bladed plastic trim tool to release the trim panel from the console.

Callout

Component Name

Preliminary Procedure
Remove the left front floor rear console side trim panel. Refer to Front Floor Rear Console Side Trim Panel Replacement - Left Side .

Front Floor Console Extension Panel - Left Side

Procedures
