Instrument Panel Center Trim Plate Applique Replacement

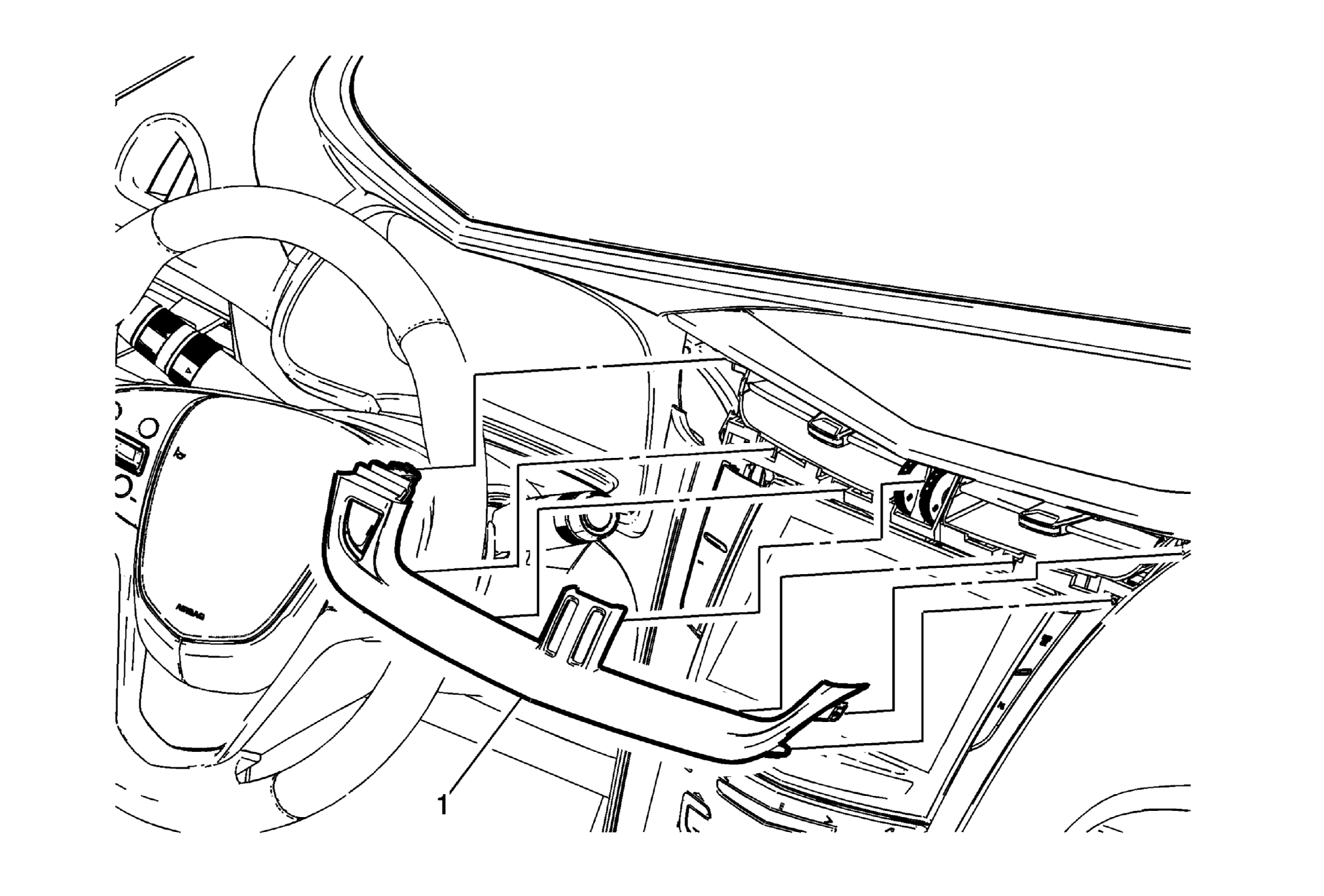

Fig 1: Instrument Panel Center Trim Plate Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Loosen the instrument panel instrument cluster hood. Refer to Instrument Panel Instrument Cluster Hood Replacement .
1	Instrument Panel Center Trim Plate Applique Procedures Use a flat bladed plastic trim tool to aid in the removal of the applique from the instrument panel assembly. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Loosen the instrument panel instrument cluster hood. Refer to Instrument Panel Instrument Cluster Hood Replacement .

Instrument Panel Center Trim Plate Applique

Procedures

Use a flat bladed plastic trim tool to aid in the removal of the applique from the instrument panel assembly.
Transfer components as necessary.
