Instrument Panel Instrument Cluster Hood Replacement
Instrument Panel Instrument Cluster Hood Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel extension. Refer to Instrument Panel Extension Replacement . |
|

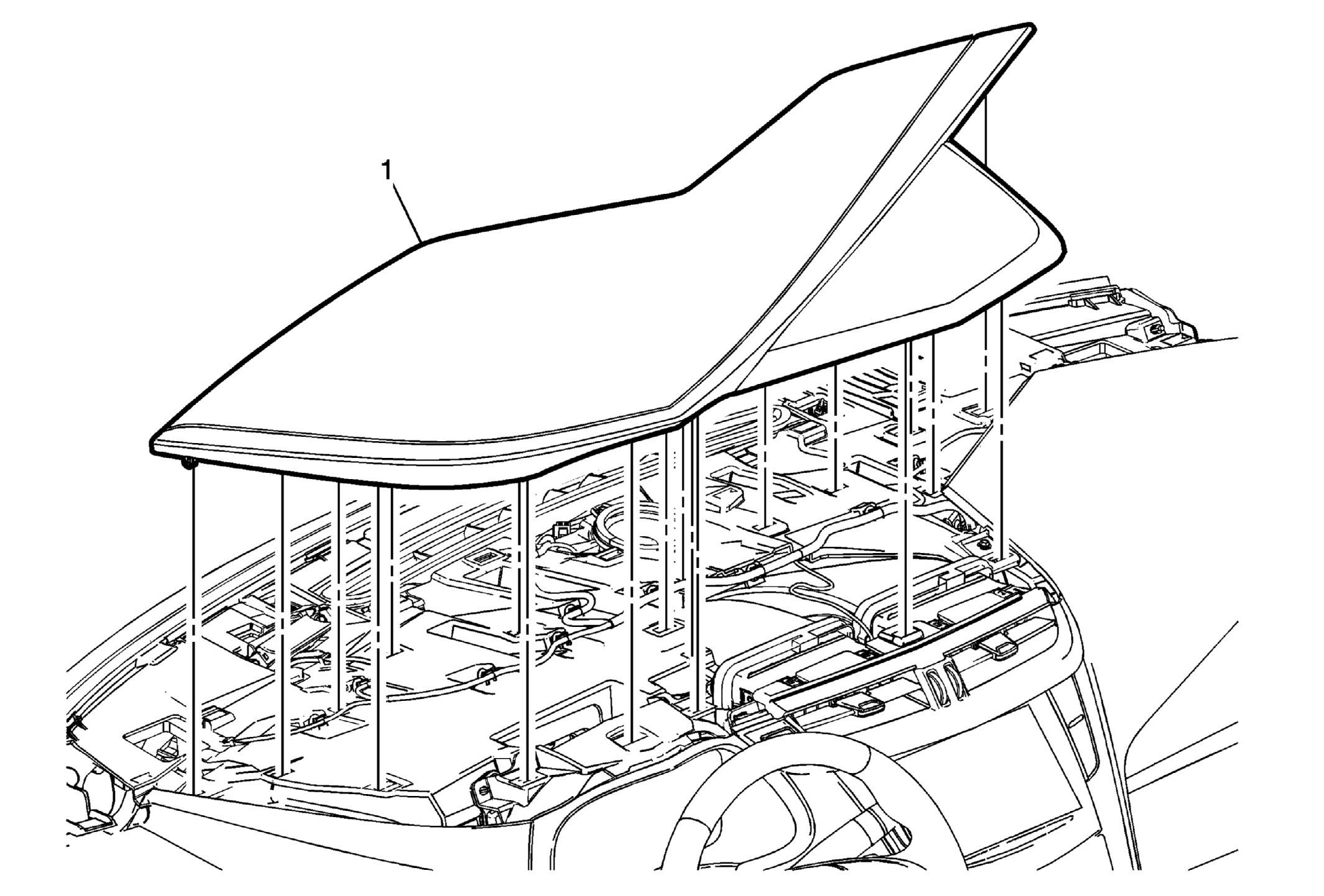

| 1 | Instrument Panel Instrument Cluster Hood Procedure Use a flat bladed plastic trim tool to aid in the removal of the hood from the instrument panel assembly. |
