Ambient Air Temperature Sensor Replacement

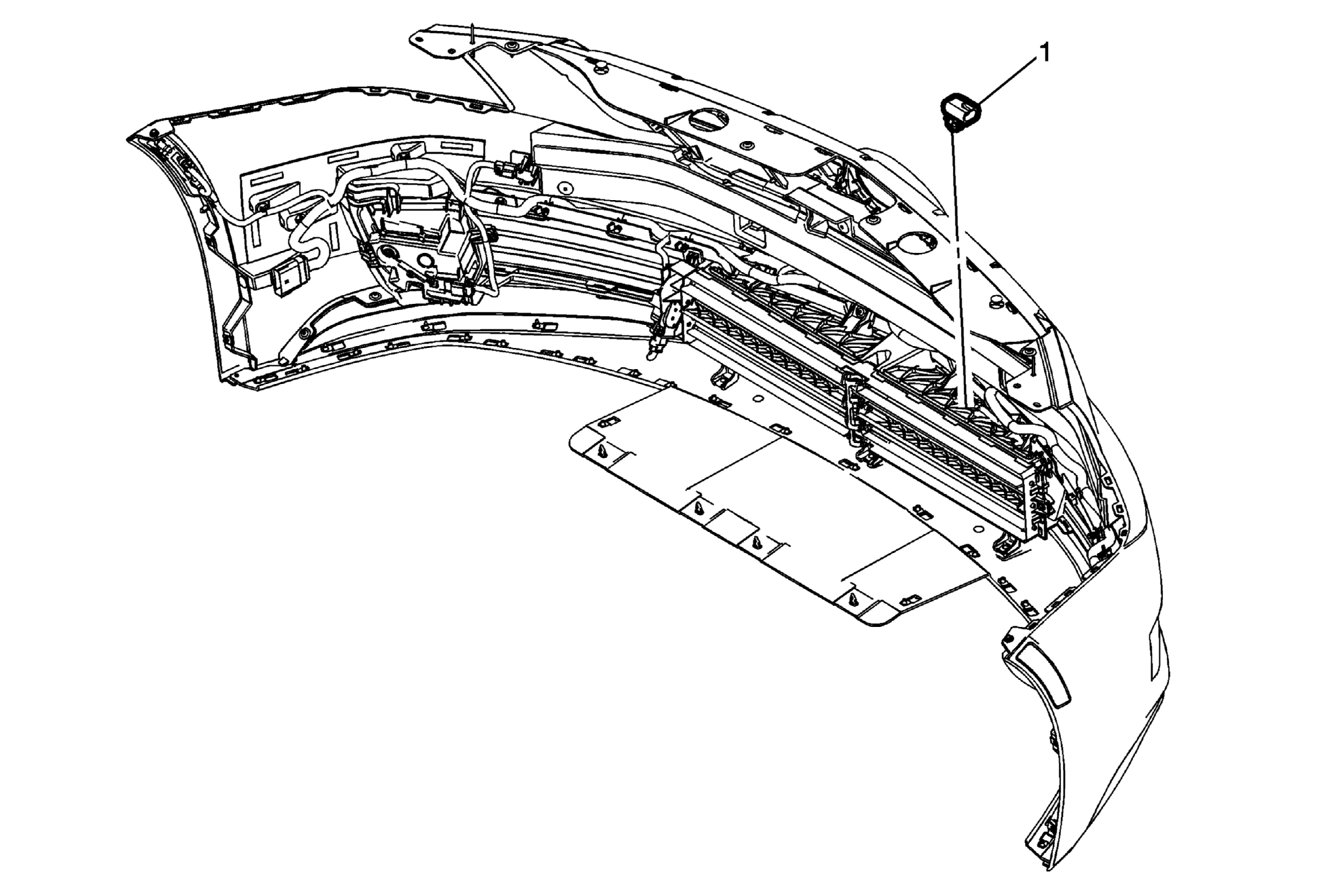

Fig 1: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Removal and Installation .
1	Ambient Air Temperature Sensor Procedures Disconnect the ambient air temperature sensor electrical connector. Squeeze the ambient air temperature sensor tabs to remove from the front bumper shutter assembly.

Call out

Component Name

Preliminary Procedure
Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Removal and Installation .

Ambient Air Temperature Sensor

Procedures

Disconnect the ambient air temperature sensor electrical connector.
Squeeze the ambient air temperature sensor tabs to remove from the front bumper shutter assembly.
