Instrument Cluster Replacement

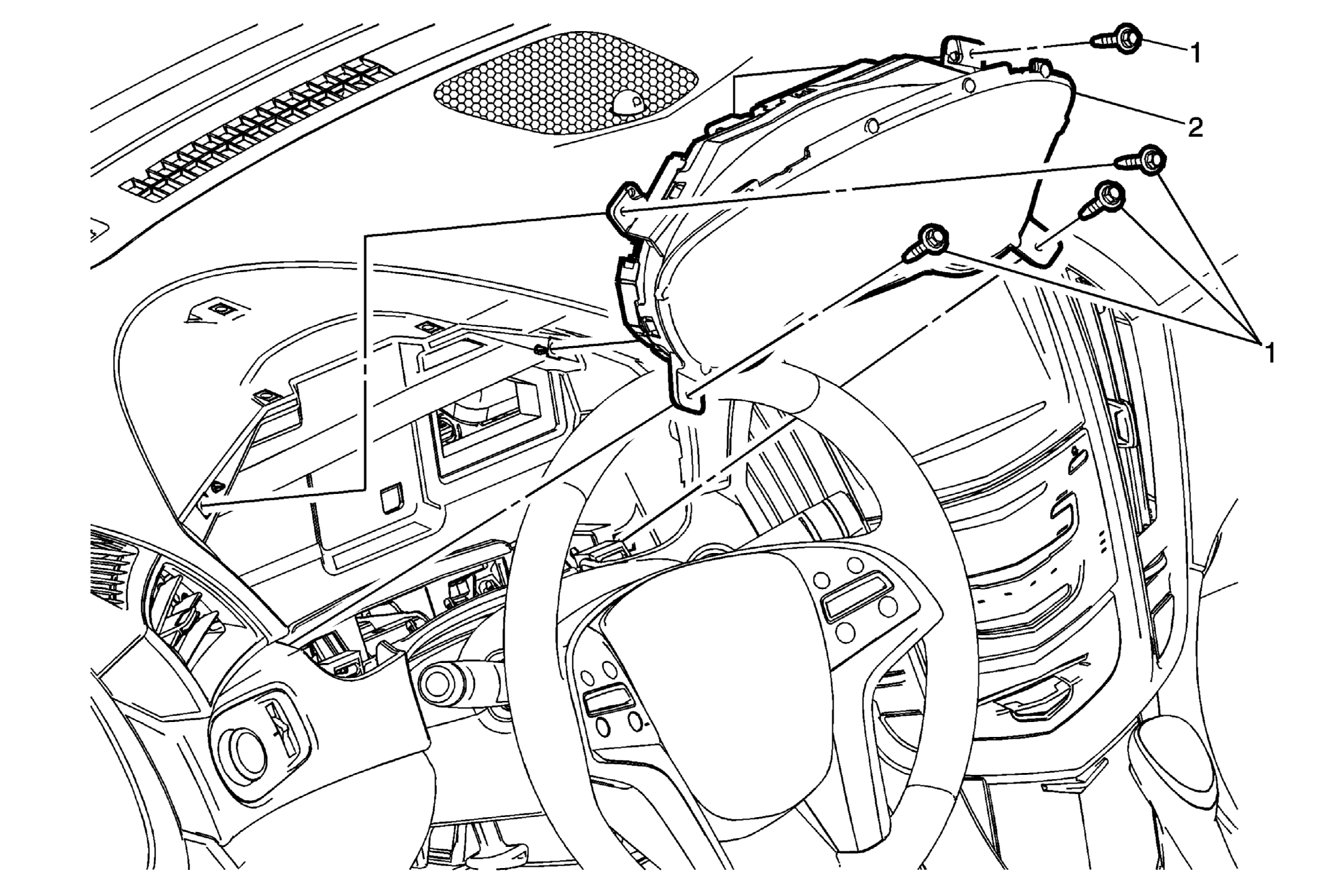

Fig 1: Instrument Cluster & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim plate assembly. Refer to Instrument Panel Cluster Trim Plate Replacement .
1	Instrument Cluster Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Assembly Procedures Disconnect the electrical connections. Refer to Control Module References for programming and setup procedures.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel cluster trim plate assembly. Refer to Instrument Panel Cluster Trim Plate Replacement .

Instrument Cluster Fasteners (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Cluster Assembly

Procedures
