Instrument Panel Center Trim Panel Replacement

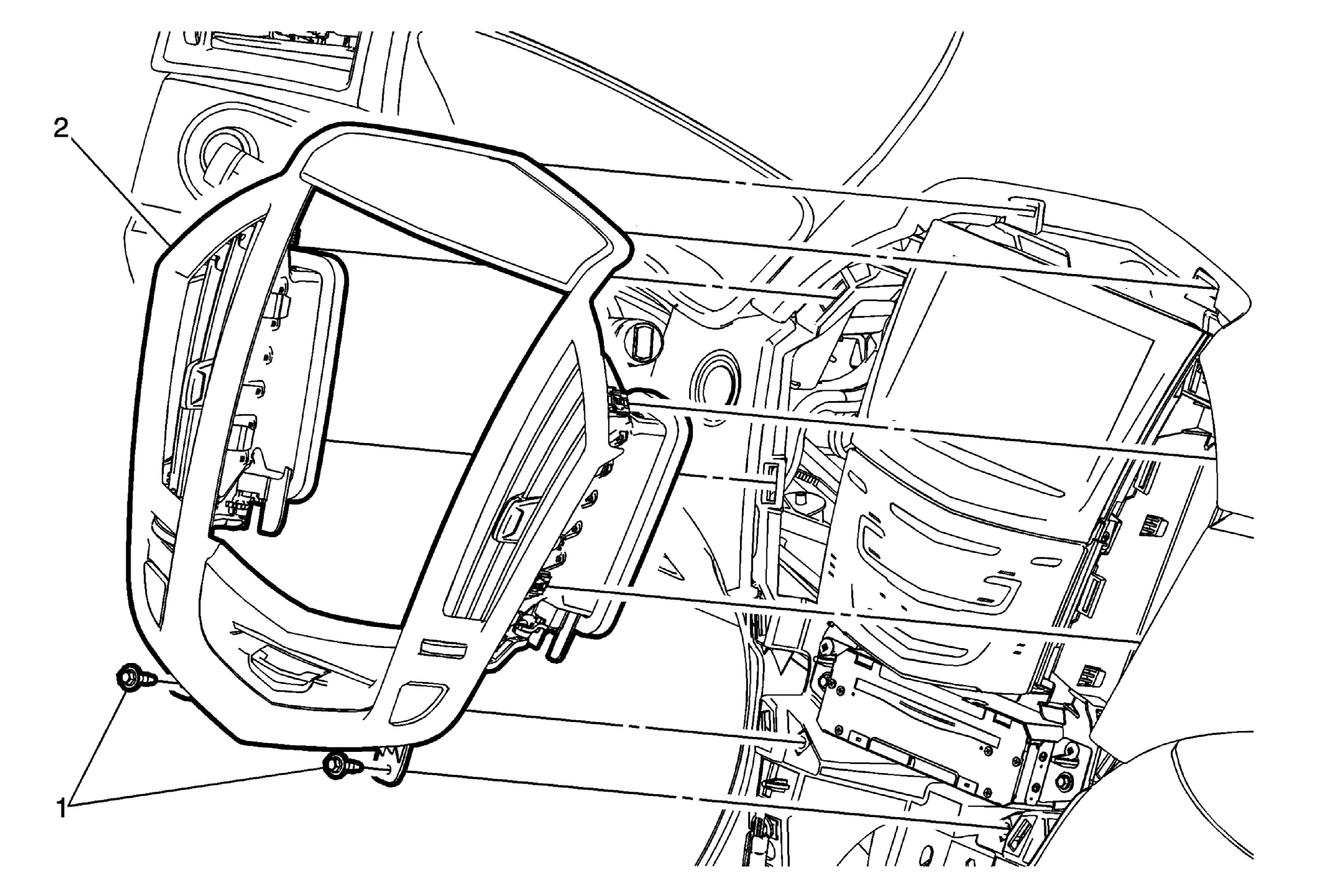

Fig 1: Instrument Panel Center Trim Panel & Fasteners
GM2789403Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Center Trim Panel Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement .
1 Instrument Panel Center Trim Panel Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Center Trim Panel

Procedure

  1. Use a flat bladed plastic trim tool in order to remove the trim panel from the instrument panel.
  2. Disconnect the electrical connections, if equipped.
  3. When replacing the center trim panel, transfer all necessary components.
