Front Floor Console Compartment Replacement

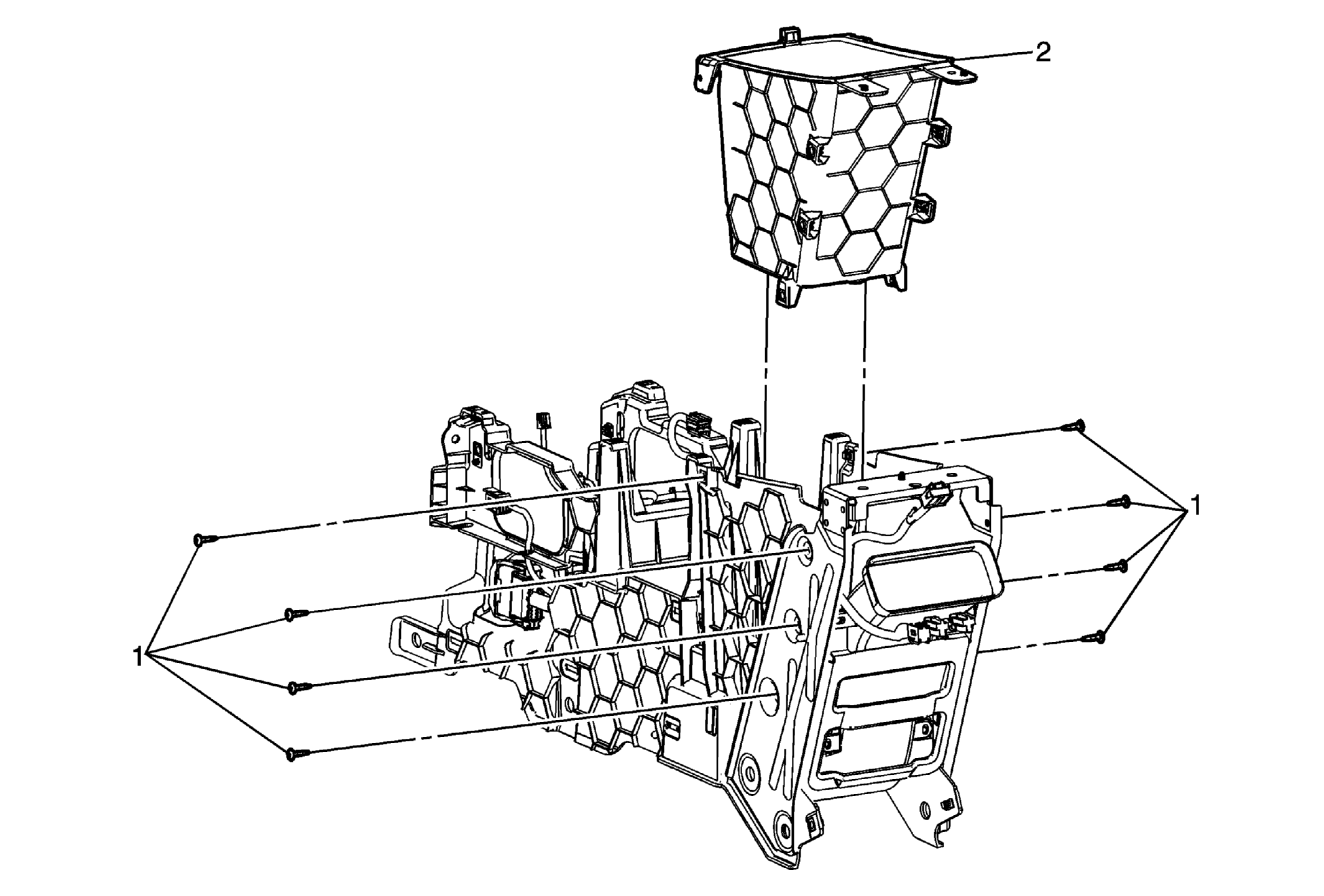

Fig 1: Identifying Front Floor Console Compartment & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the driver and passenger front seats. Refer to Driver or Passenger Seat Removal and Installation . Remove the front floor console upper rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement - Upper . Remove the front floor console lower rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement - Lower . Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement . Remove the front floor console right and left trim panels. Refer to Front Floor Console Trim Panel Replacement .
1	Front Floor Console Compartment Fastener (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Compartment Assembly Procedure Disconnect the electrical connections. When replacing the front floor console compartment, transfer all necessary components.

Callout

Component Name

Preliminary Procedures

Remove the driver and passenger front seats. Refer to Driver or Passenger Seat Removal and Installation .
Remove the front floor console upper rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement - Upper .
Remove the front floor console lower rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement - Lower .
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
Remove the front floor console right and left trim panels. Refer to Front Floor Console Trim Panel Replacement .

Front Floor Console Compartment Fastener (Qty: 8)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console Compartment Assembly

Procedure

Disconnect the electrical connections.
When replacing the front floor console compartment, transfer all necessary components.
