Front Floor Console Rear Trim Panel Replacement - Lower
Front Floor Console Rear Trim Panel Replacement - Lower

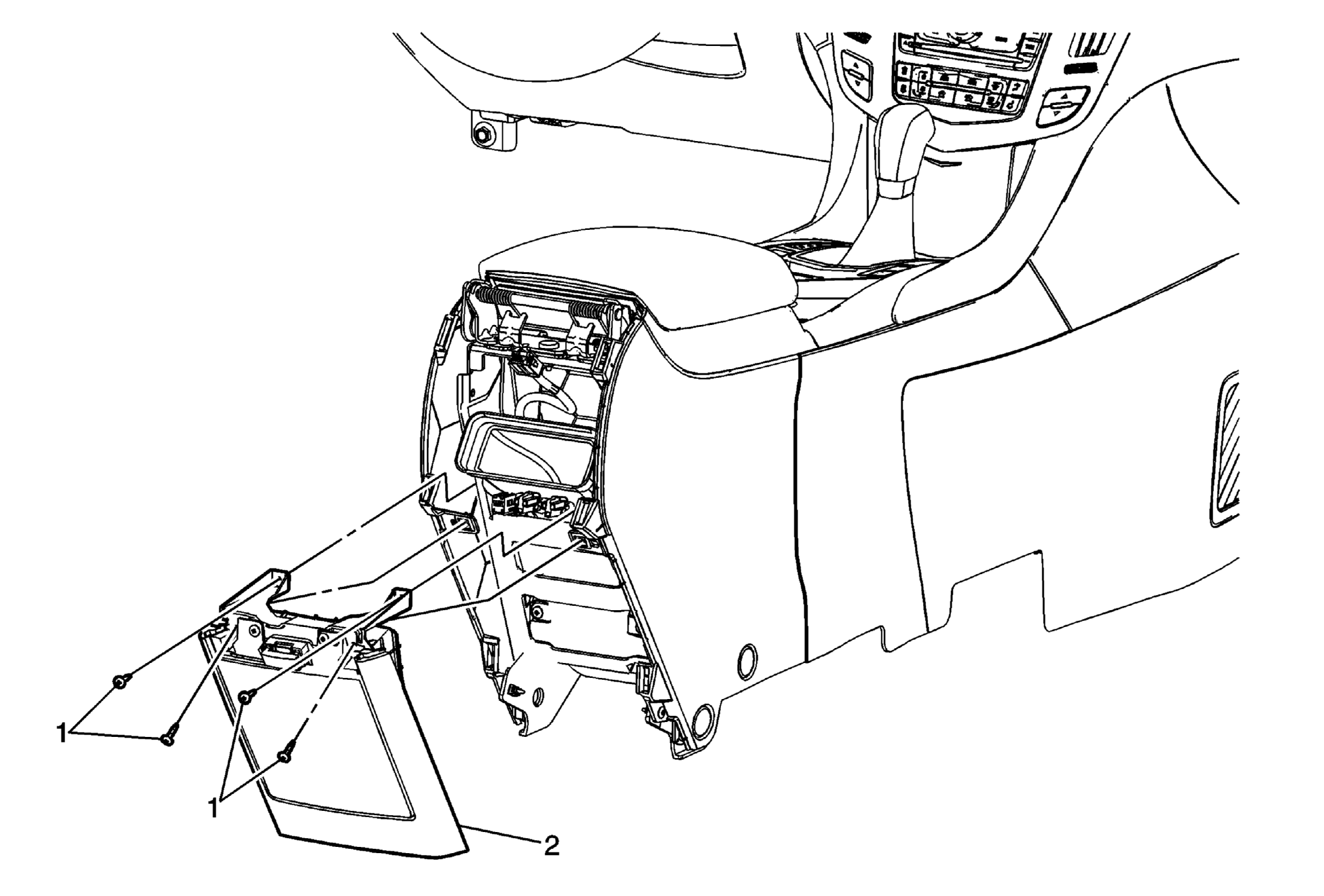

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console upper rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement - Upper . |
|
| 1 | Front Floor Console Lower Rear Trim Panel Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Floor Console Lower Rear Trim Panel Assembly Procedure When replacing the front floor console lower rear trim panel, transfer all necessary components. |
