Front Floor Console Applique Replacement
Front Floor Console Applique Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right and left front floor console cover trim plate assemblies. Refer to Front Floor Console Cover Trim Plate Replacement - Right Side , and Front Floor Console Cover Trim Plate Replacement - Left Side . |
|

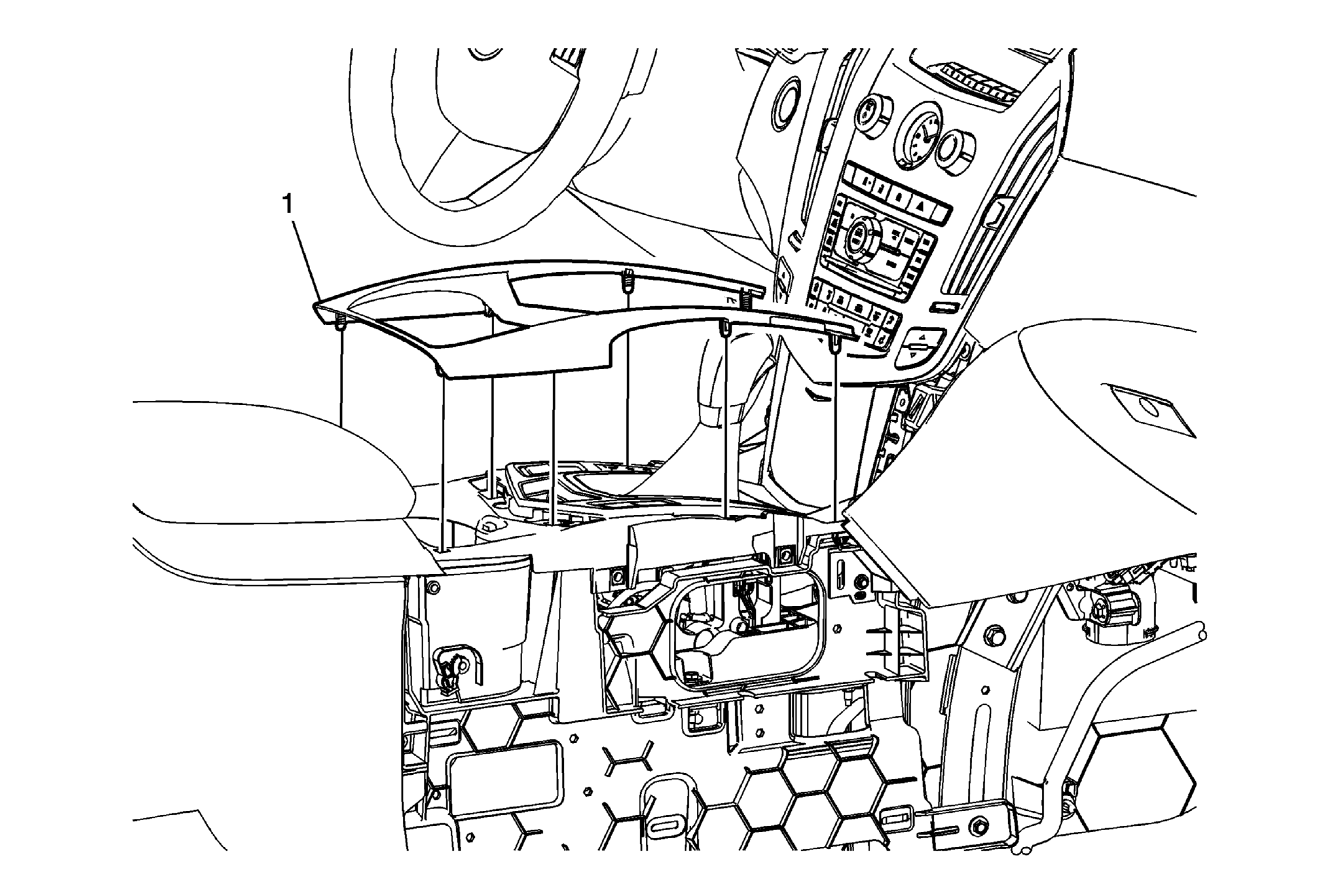

| 1 | Front Floor Console Applique Procedure Grasp the front floor console applique and pull upward releasing the retainer clips securing the front floor console applique to the front floor console assembly. |
