Front Floor Console Cover Trim Plate Replacement - Left Side
Front Floor Console Cover Trim Plate Replacement - Left Side

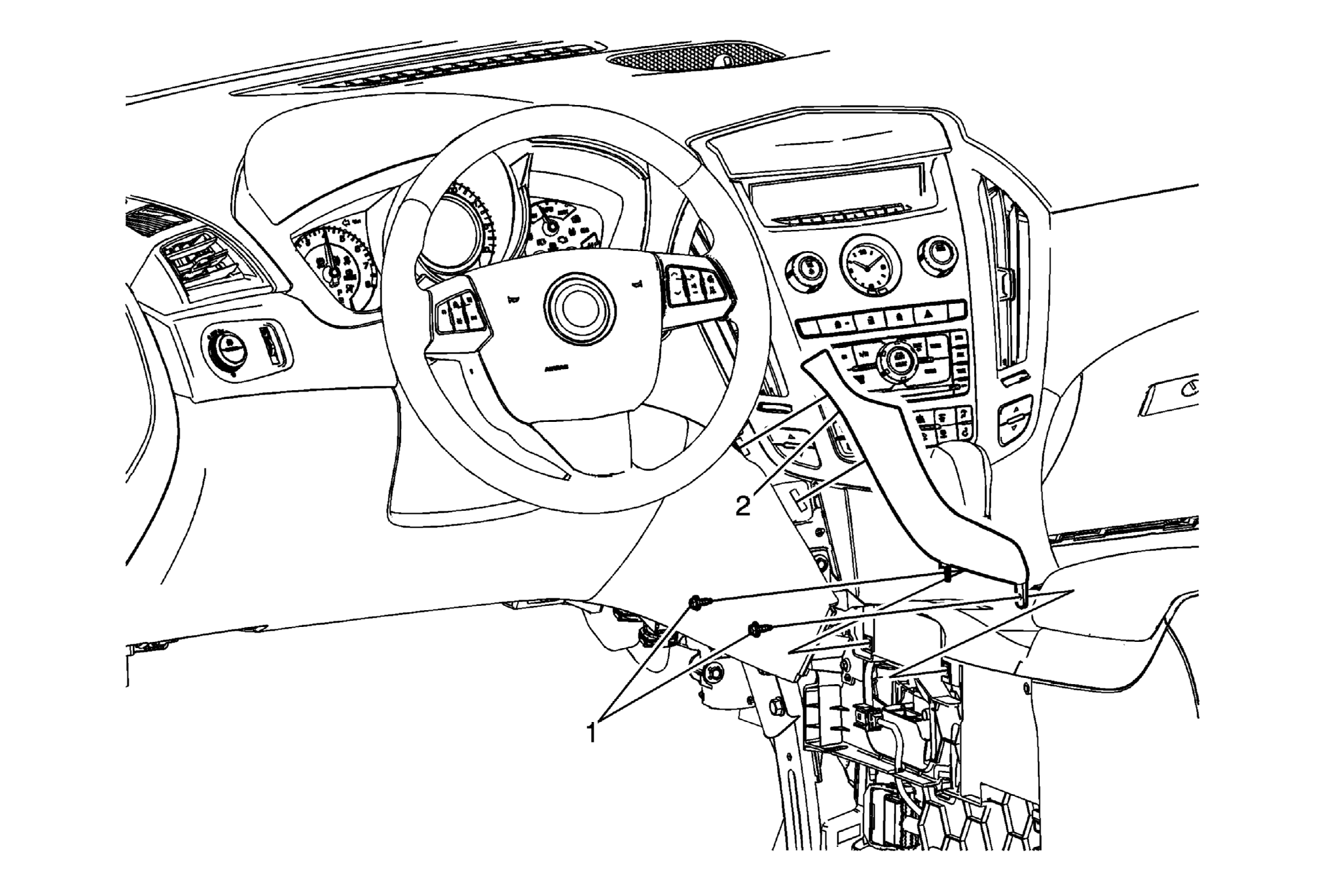

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console extension. Refer to Front Floor Console Extension Replacement . |
|
| 1 | Front Floor Console Cover Trim Plate Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 (22 lb in) |
| 2 | Front Floor Console Cover Trim Plate Assembly Procedure Use a flat bladed plastic trim tool in order to release the retainer clips securing the front half of the front floor console cover trim plate to the instrument panel assembly. |
