Front Bumper Impact Bar Replacement
Front Bumper Impact Bar Replacement

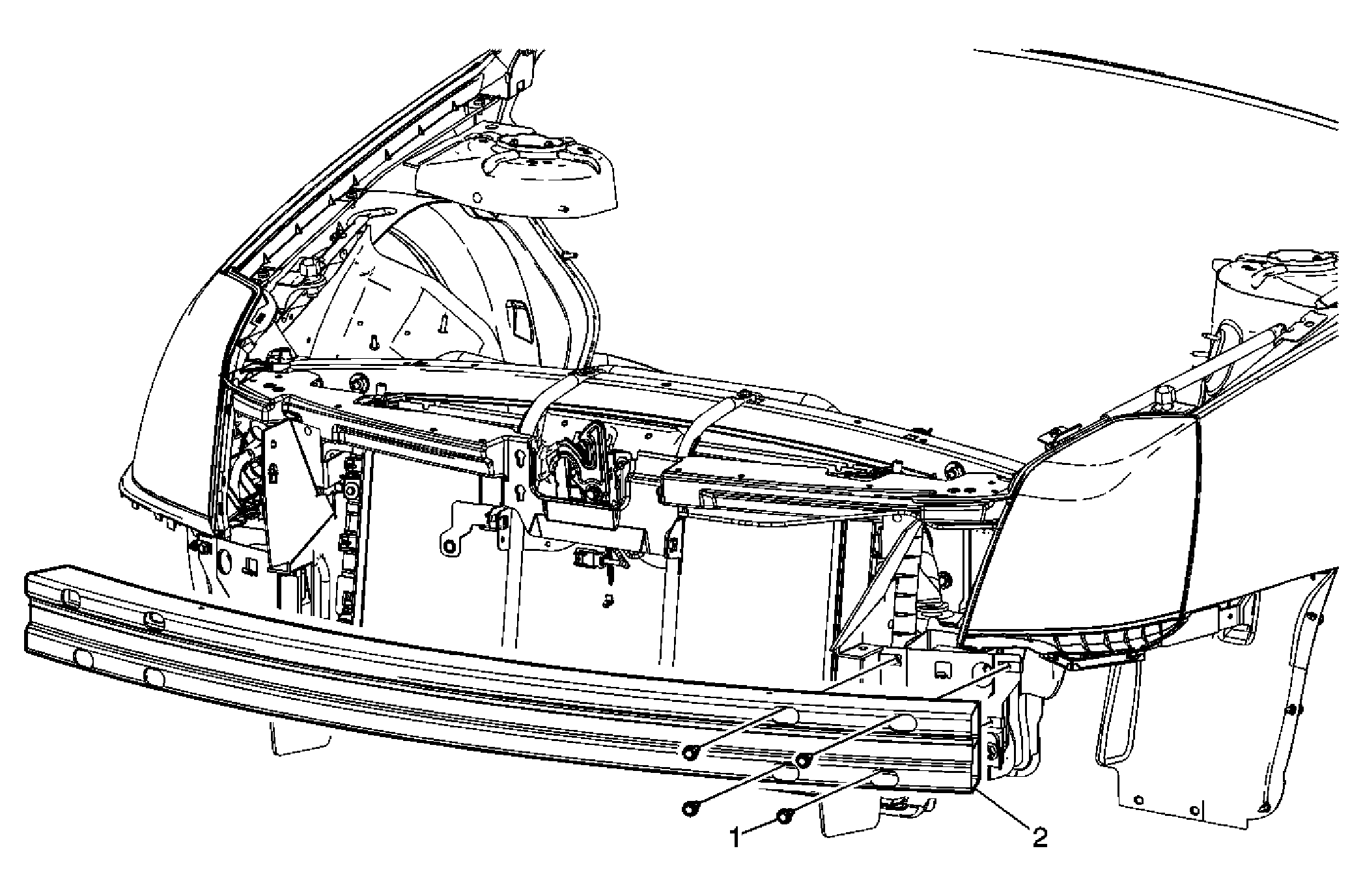

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove front fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Front Bumper Bar Bolt (Qty: 8)
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Front Bumper Bar TIP: Remove push pin from front side radiator baffle. |
