Front Bumper Fascia Replacement
Front Bumper Fascia Replacement

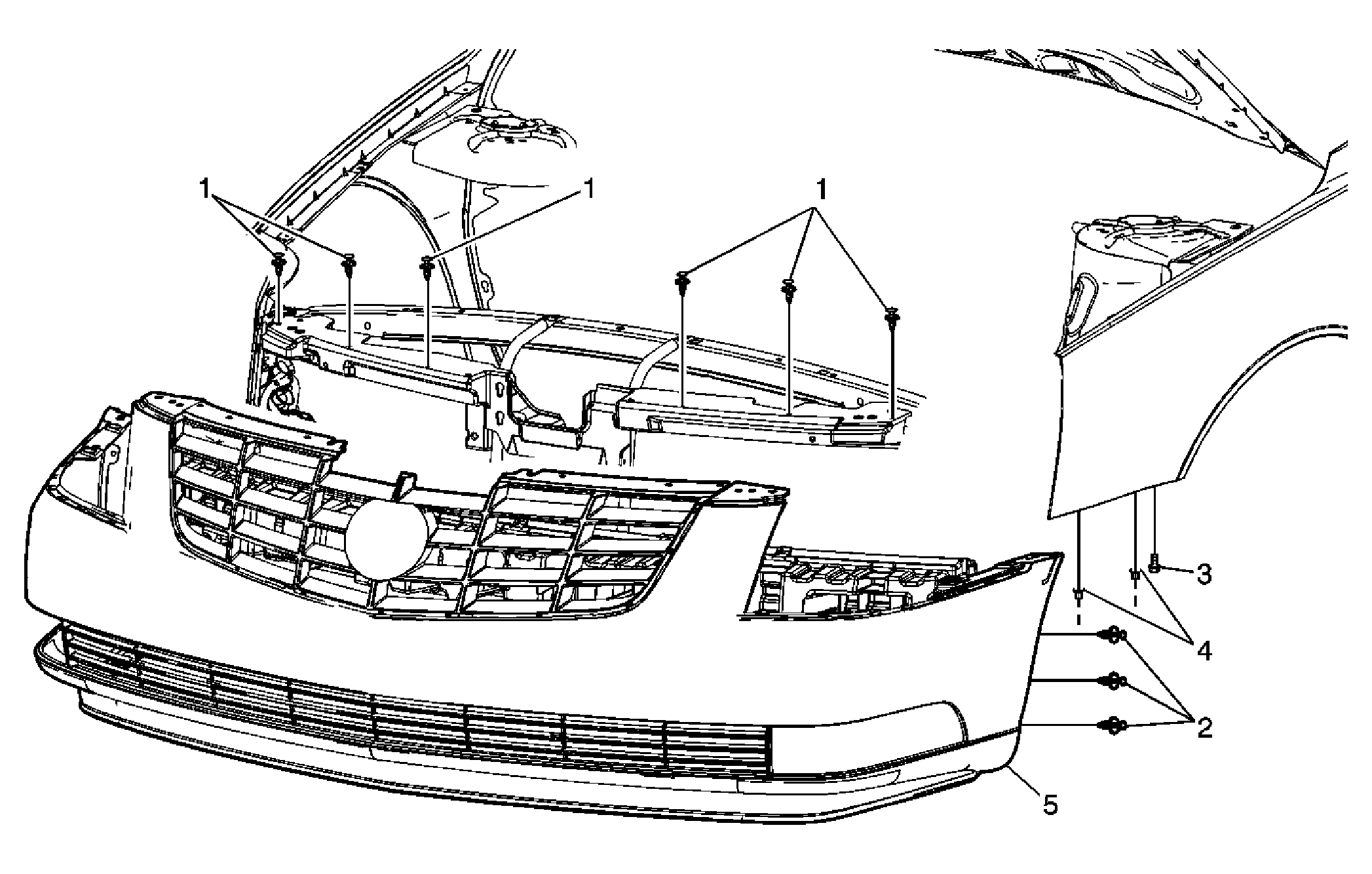

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement . |
|
| 1 | Front Fascia Retainer (Qty: 6) |
| 2 | Front Fascia Retainer (Qty: 6) |
| 3 | Front Fascia Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 4 | Front Fascia Nut (Qty: 2) Tighten 10 N.m (89 lb in) |
| 5 | Front Fascia Cover TIP: Disconnect the electrical connector. |
