Front Bumper Fascia Support Replacement

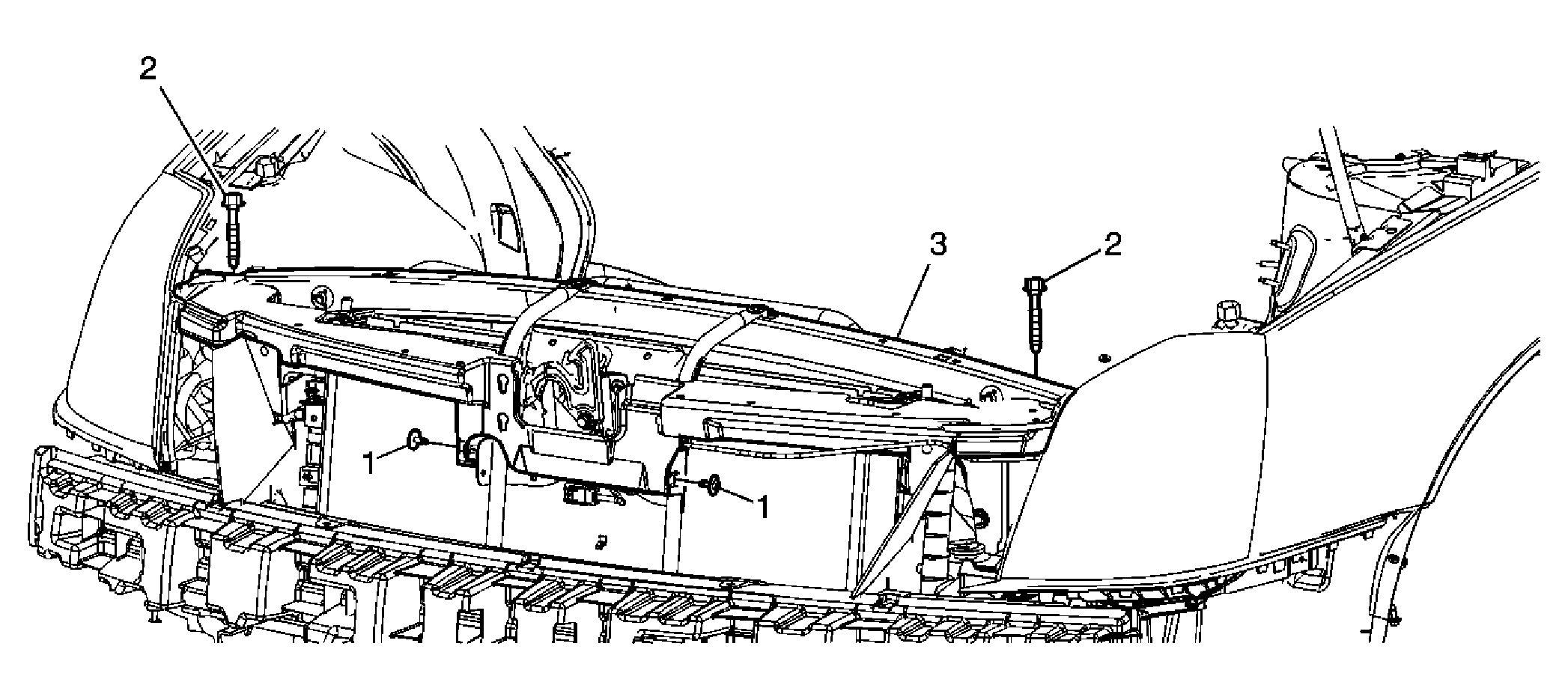

Fig 1: Front Bumper Fascia Support & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the distance sensing cruise control module, if equipped. Refer to Distance Sensing Cruise Control Module Replacement . Remove front fascia. Refer to Front Bumper Fascia Replacement .
1	Front Fascia Support Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Fascia Support Bolt (Qty: 2) Tighten 10 N.m (89 lb in)
3	Front Fascia Support
