Front Fender Replacement

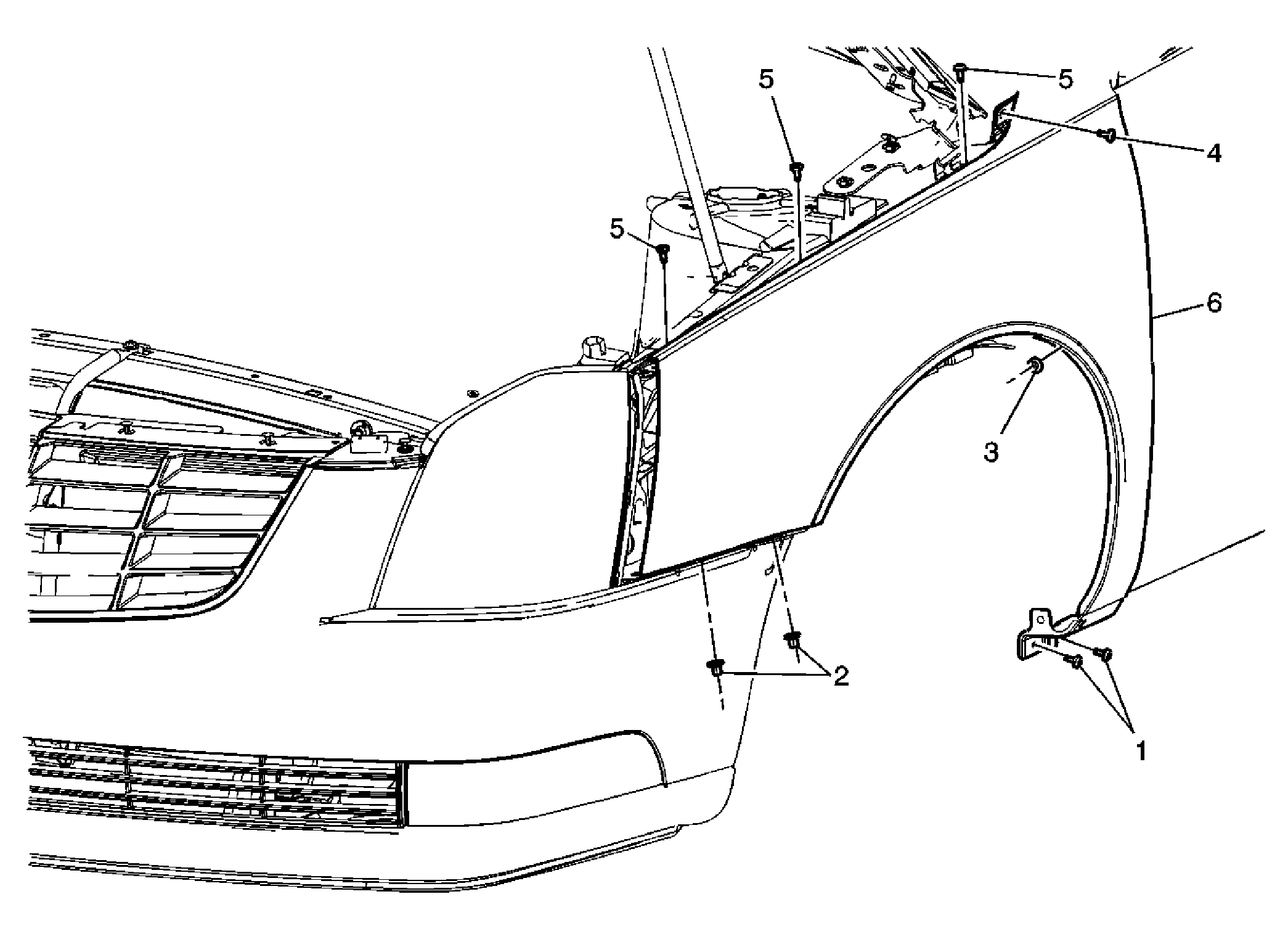

Fig 1: Front Fender & Components
GM1577815Courtesy of GENERAL MOTORS COMPANY
Front Fender Replacement

Callout Component Name

Preliminary Procedures

  1. Raise and support vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  3. Remove rocker panel moulding. Refer to Rocker Panel Molding Replacement .
1 Front Fender Bolts (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Front Fascia Bolts (Qty: 2)
Tighten
10 N.m (89 lb in)
3 Front Fender Nut
Tighten
10 N.m (89 lb in)
4 Front Fascia Bolt
Tighten
10 N.m (89 lb in)
5 Front Fender Bolts (Qty: 3)
6 Front Fender
