Rocker Panel Molding Replacement

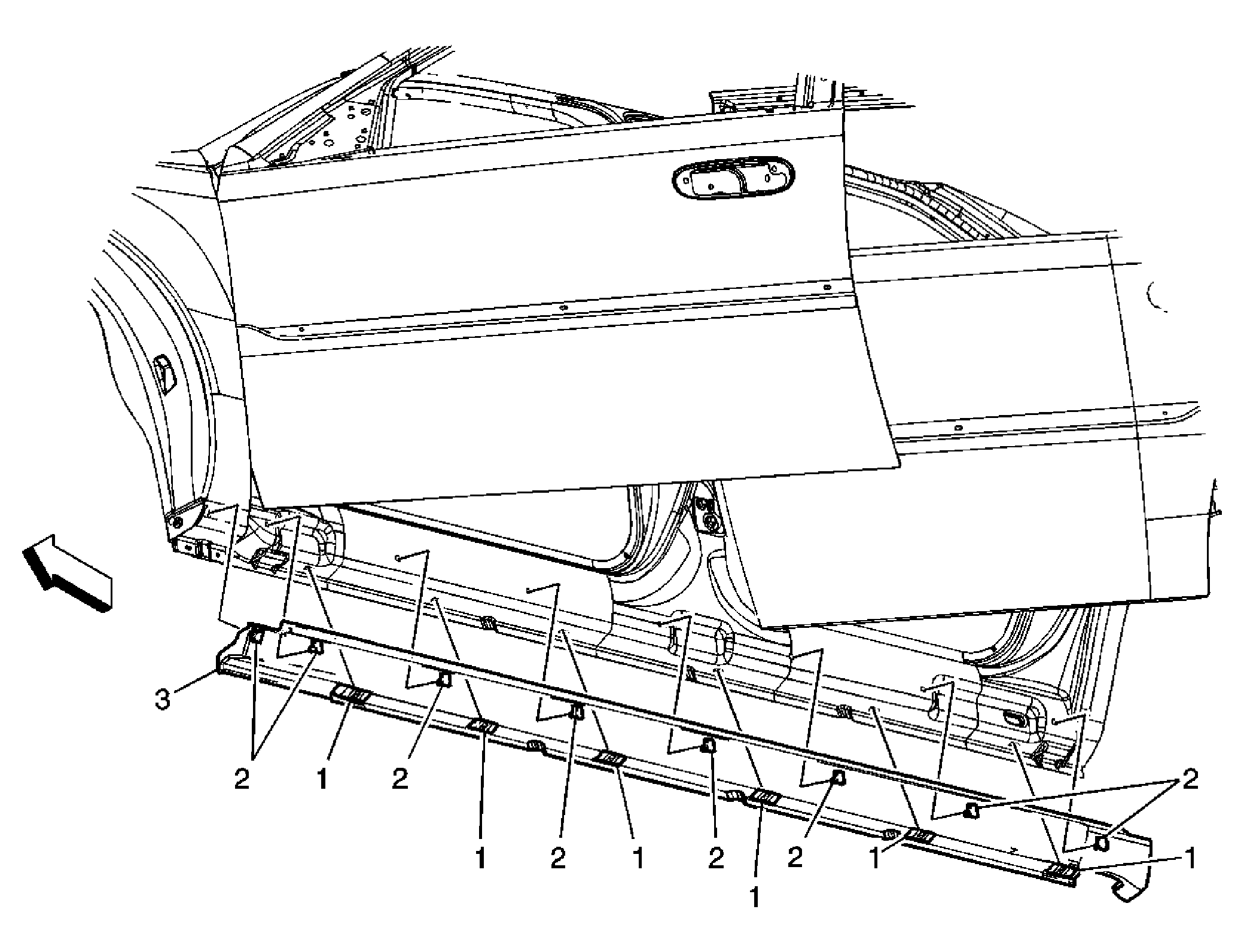

Fig 1: Rocker Panel Molding & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open both doors on the side that the lower rocker panel molding is being removed.
1	Rocker Panel Molding Clips (Qty: 6)
2	Rocker Panel Molding Retainers (Qty: 8) Using a trim retainer type release tool, disengage the lower retainers by gently prying downward at each retainer location prior to releasing the upper retainers from the lower rocker panel. Use the front fender clip to locate the rocker molding upon installation.
3	Rocker Panel TIP: Upon installation, ensure both doors are in the open position.
