Oil Filter Adapter Removal (With Oil Cooler)

WARNING: This page is about a different variant/trim than selected.

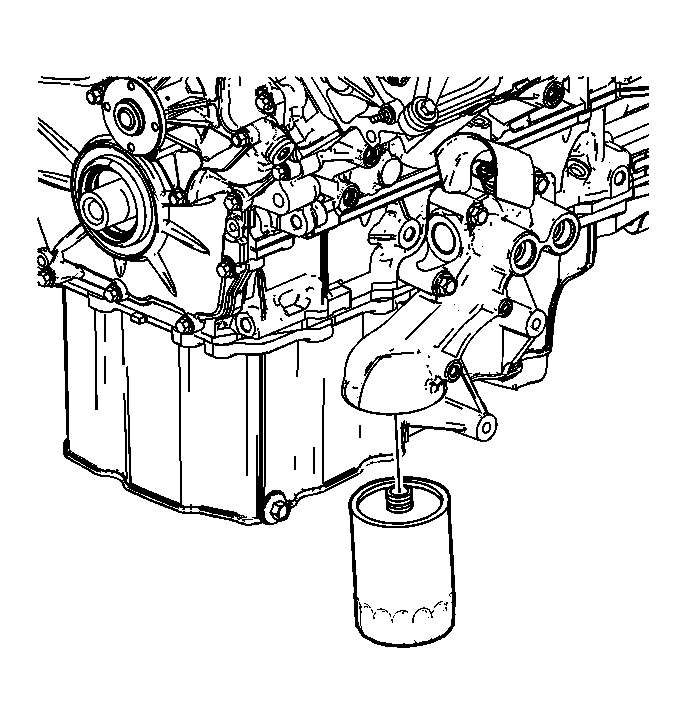

    Fig 1: Oil Filter
    GM1346214Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil filter.

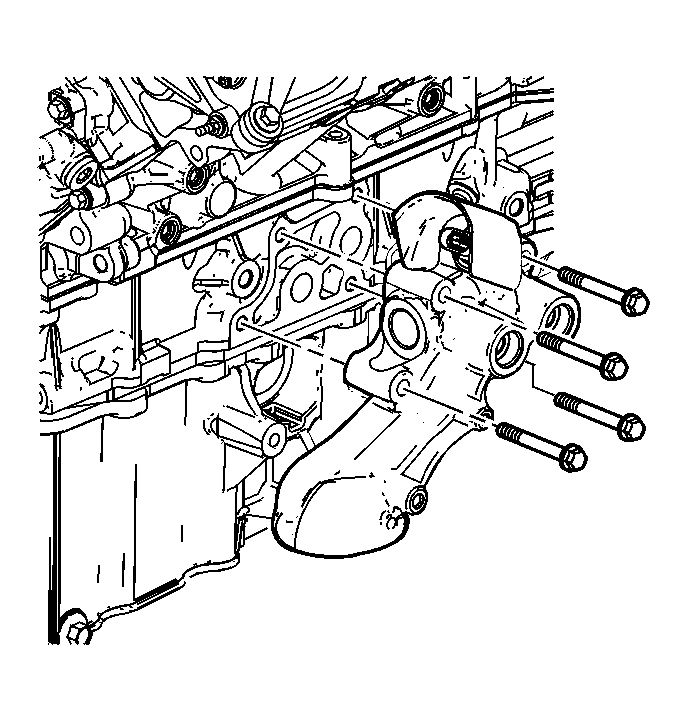

    2. Fig 2: Oil Filter Adapter & Bolts - With Oil Cooler
    GM1346215Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil filter adapter bolts.
  3. Remove the oil filter adapter.
    4. Fig 3: Oil Filter Adapter Gasket
    GM1761723Courtesy of GENERAL MOTORS CORP.
  4. Remove and discard the oil filter adapter gasket.
