Installation Procedure

  1. Install the TOC lines. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
  2. Connect the oil level sensor electrical connector.
    3. Fig 1: View Of TOC Inlet & Outlet Lines
    GM1218468Courtesy of GENERAL MOTORS CORP.
  3. Connect the front TOC lines to the rear TOC line set.
  4. Connect the upper and lower TOC retainer clip.
  5. Install the TOC line to oil pan retaining clips.
    6. CAUTION: Refer to Fastener Caution .
  6. Install the TOC line to oil pan retaining nuts then tighten to 12 N.m (9 lb ft).
  7. Lower the vehicle.
    8. NOTE: When installing the engine mount, be sure to have the locating dowel in the correct position.
  8. Install the RH engine mount.
    9. Fig 2: View Of Engine Mount Heat Shield
    GM1334605Courtesy of GENERAL MOTORS CORP.
  9. Install the RH engine mount heat shield to the engine mount.
  10. Install the RH engine mount bracket.

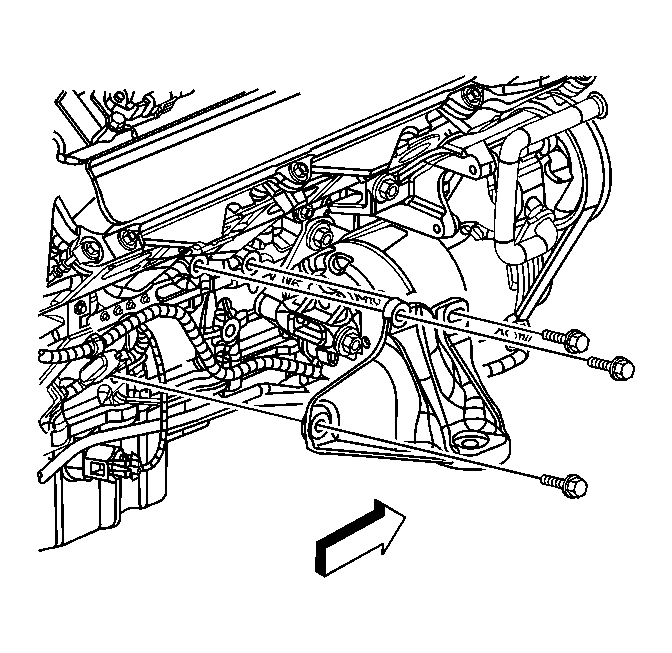

    11. Fig 3: View Of Right Engine Mount Bracket & Bolts
    GM1334624Courtesy of GENERAL MOTORS CORP.
  11. Install the RH engine mount bracket bolts and tighten to 58 N.m (43 lb ft).
  12. Using the J 28467-B  , lower the engine assembly into position.
  13. Install the RH engine mount lower nut and tighten to 58 N.m (43 lb ft).

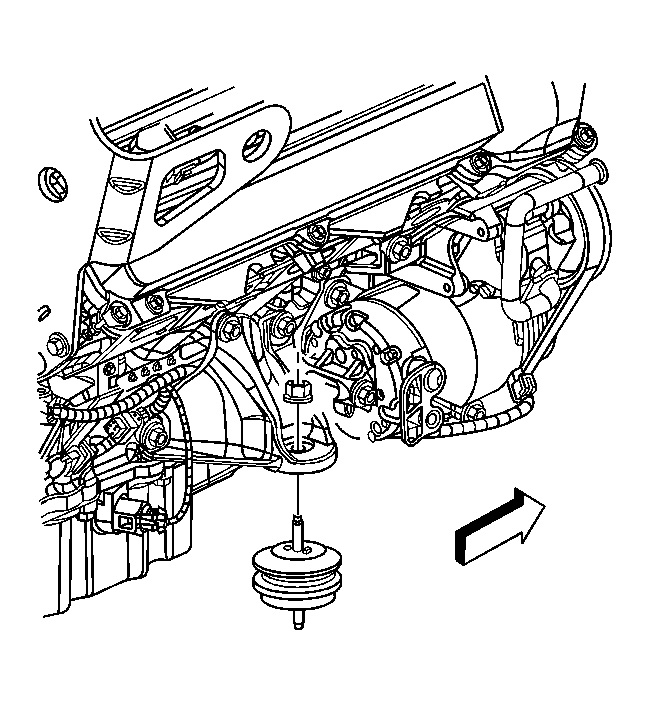

    14. Fig 4: View Of Right Engine Mount, Bracket & Nut
    GM1334619Courtesy of GENERAL MOTORS CORP.
  14. Install the RH engine mount upper nut and tighten to 58 N.m (43 lb ft).
  15. Install the A/C compressor and power steering pump bracket.
    16. Fig 5: View Of Air Compressor/Power Steering Pump Bracket & Bolts
    GM1252851Courtesy of GENERAL MOTORS CORP.
  16. Install the A/C compressor and power steering pump bracket bolts then tighten to 50 N.m (37 lb ft).

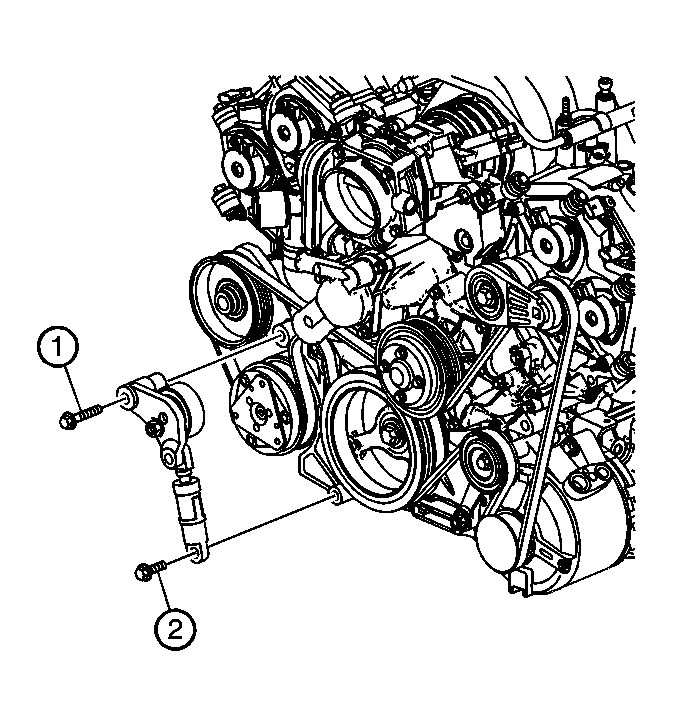

    17. Fig 6: Identifying Accessory Drive Belt Tensioner Bolts
    GM927924Courtesy of GENERAL MOTORS CORP.
  17. Install the accessory belt tensioner.
  18. Install the accessory belt tensioner top bolt (1) and tighten to 25 N.m (18 lb ft).
    NOTE: Tighten in sequence.
  19. Install the accessory belt tensioner lower bolt (2) and tighten to 25 N.m (18 lb ft).
  20. Install the A/C compressor. Refer to Air Conditioning Compressor Replacement .

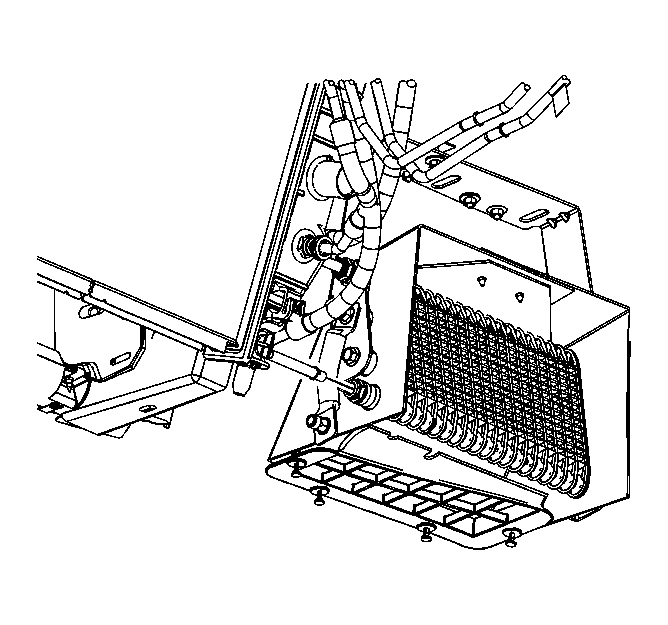

    21. Fig 7: View Of Auxiliary Transmission Oil Cooler
    GM1715293Courtesy of GENERAL MOTORS CORP.
  21. Install the lower TOC line to the auxiliary TOC. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
  22. Connect the lower TOC line to the auxiliary TOC.
    23. Fig 8: View Of Lower Transmission Oil Cooler Line
    GM1715295Courtesy of GENERAL MOTORS CORP.
  23. Install the lower TOC line to the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
  24. Connect the lower TOC line to the radiator.
  25. Install the wheelhouse panel. Refer to Front Wheelhouse Liner Replacement .
  26. Lower the vehicle.
  27. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  28. Check the transmission fluid level, add if necessary. Refer to Transmission Fluid Fill Procedure .
