Front Wheelhouse Liner Replacement

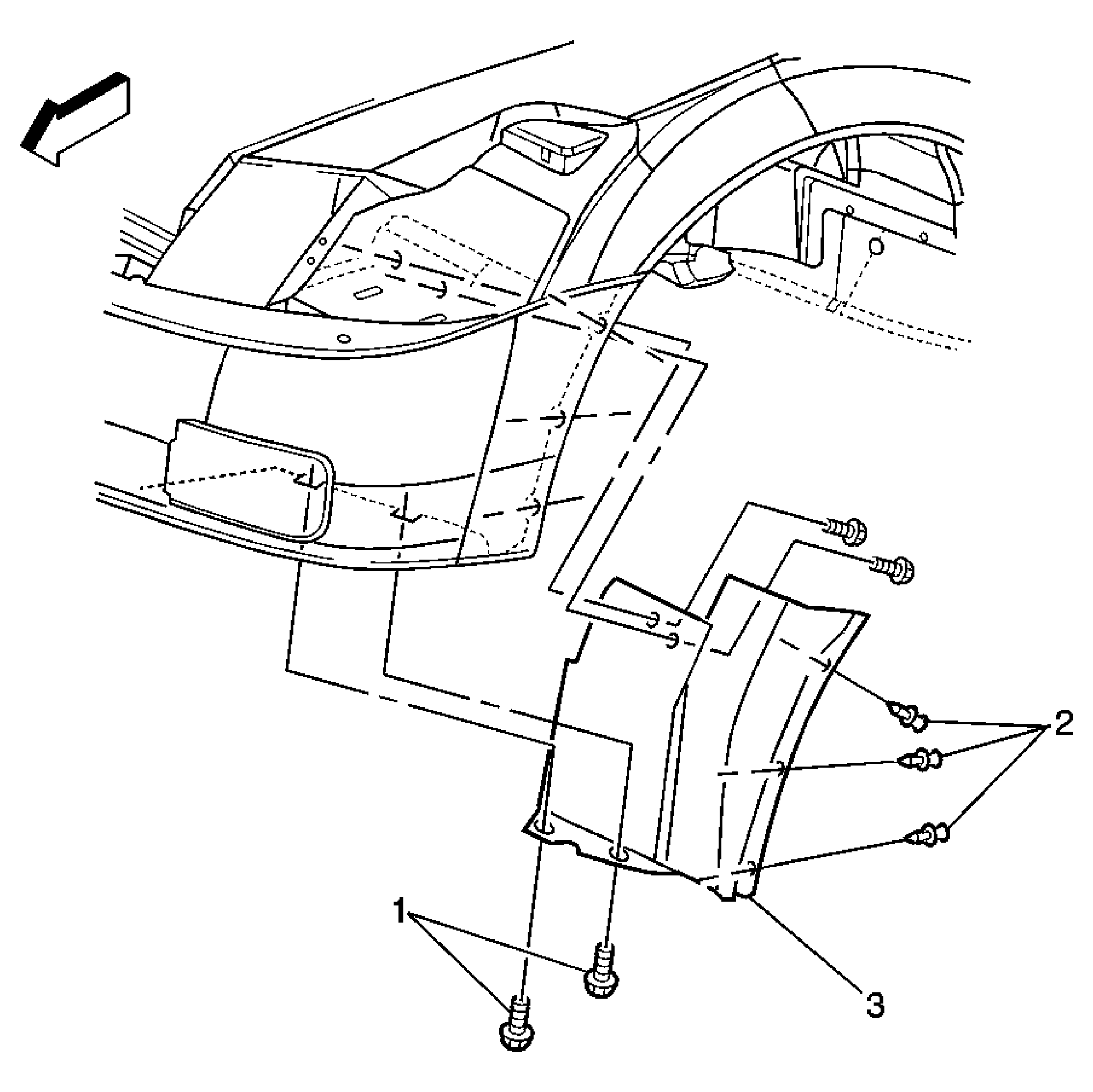

Fig 1: Identifying Front Wheelhouse Liner
GM1174303Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1 Front Wheelhouse Panel Screw (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  2.5 N.m (22 lb in)
2 Front Wheelhouse Panel Plastic Retainer (Qty: 5)
3 Front Wheelhouse Panel
