Rear Compartment Lid Hinge Replacement

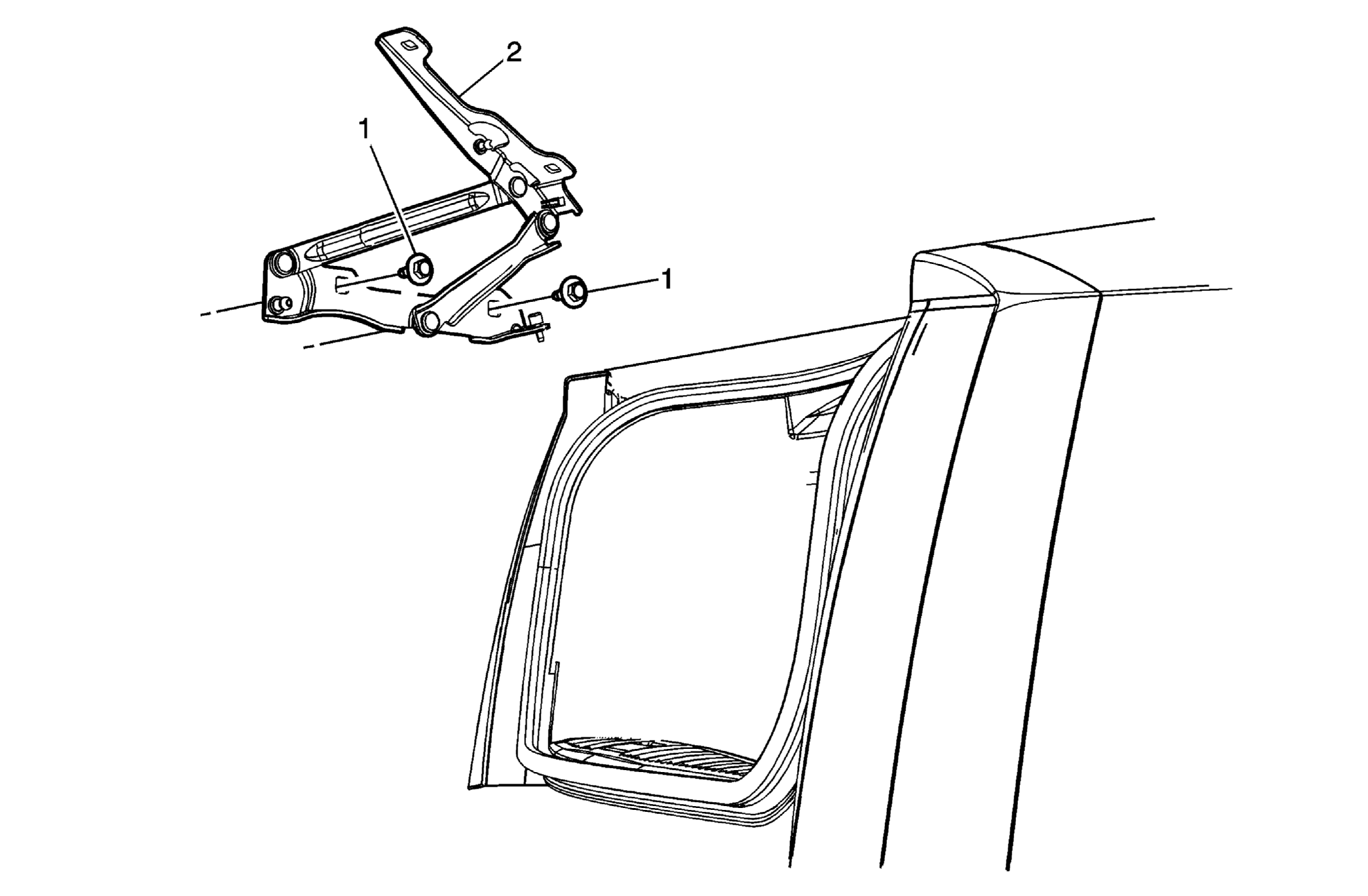

Fig 1: Rear Compartment Lid Hinge Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement . Remove the rear compartment lid strut for the appropriate side. Refer to Rear Compartment Lid Strut Replacement .
1	Rear Compartment Lid Hinge Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Rear Compartment Lid Hinge

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement .
Remove the rear compartment lid strut for the appropriate side. Refer to Rear Compartment Lid Strut Replacement .

Rear Compartment Lid Hinge Bolt (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Rear Compartment Lid Hinge
