Door Check Link Replacement (Front Door)

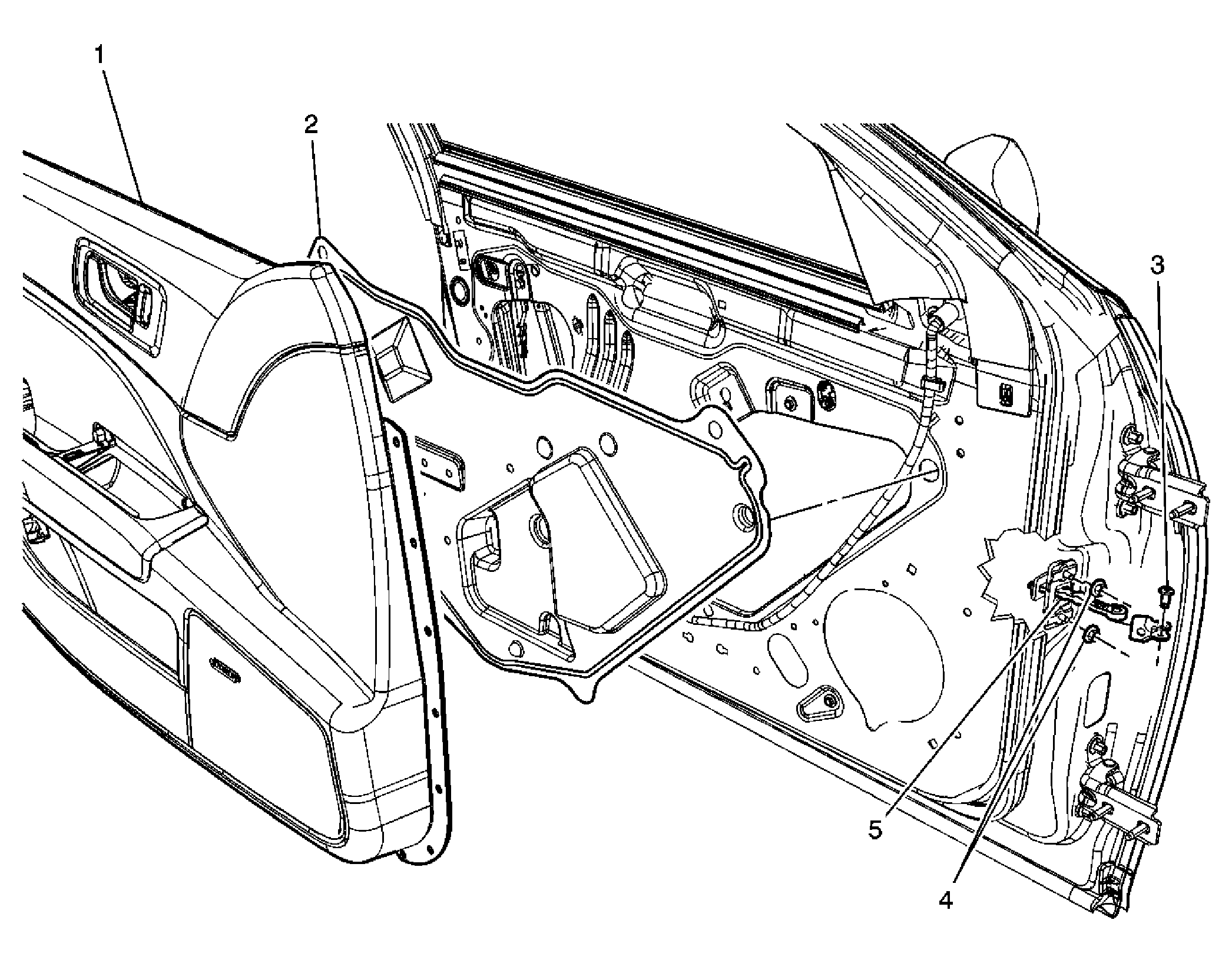

Fig 1: View Of Front Door Water Deflector & Check Link

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Trim Panel Refer to Front Side Door Trim Panel Replacement .
2	Front Side Door Water Deflector Refer to Front Side Door Water Deflector Replacement .
3	Front Side Door Check Link Bolt NOTE: Refer to Fastener Notice . Tighten: 32 N.m (24 lb ft)
4	Front Side Door Check Link Nut (Qty: 2) Tighten: 10 N.m (89 lb in)
5	Front Side Door Check Link Tip: Check link assembly is removed and installed from the inside of the door.
