Front Side Door Water Deflector Replacement

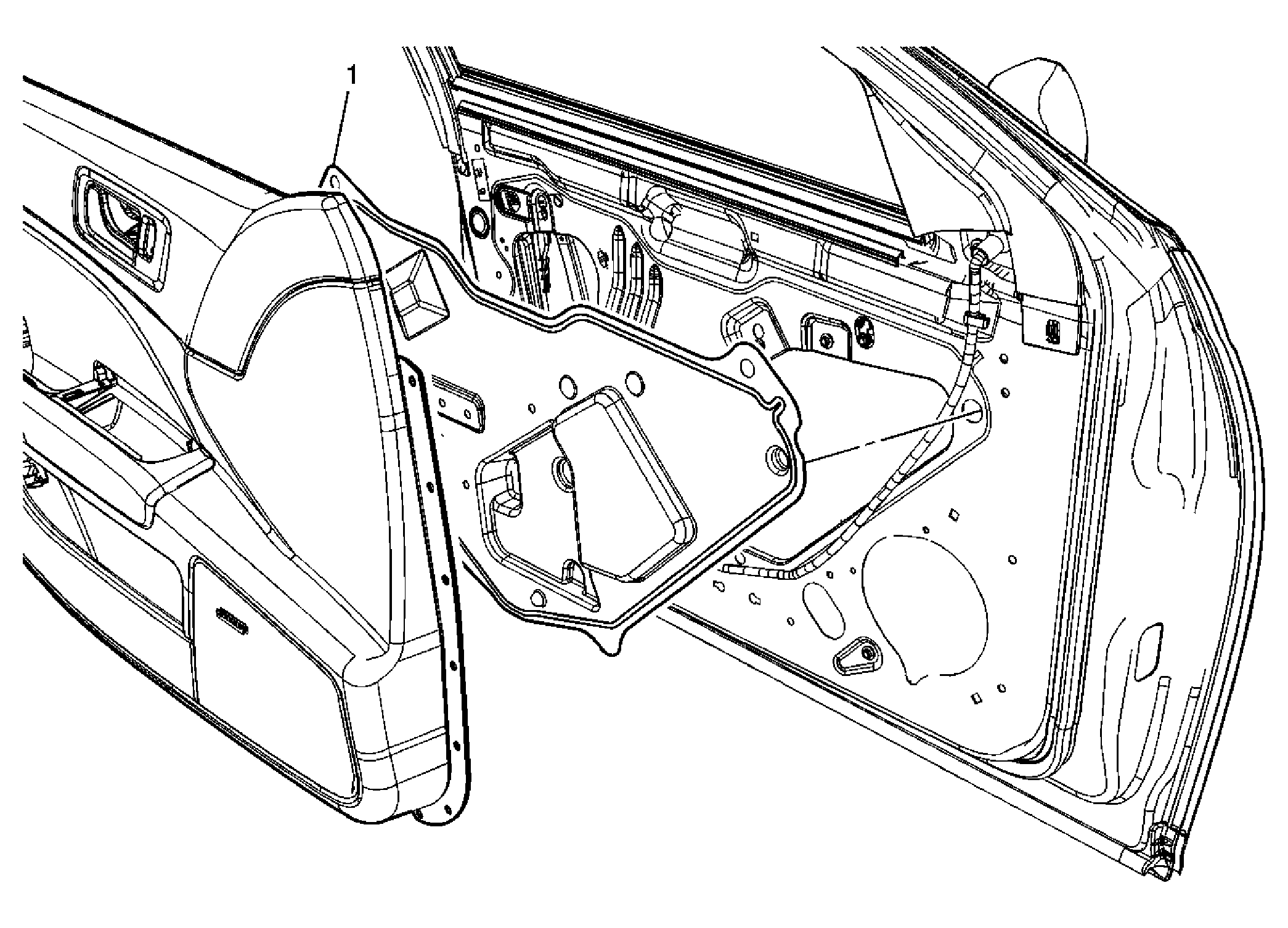

Fig 1: Front Side Door Water Deflector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Water Deflector Refer to Front Side Door Water Deflector Replacement . Tip:  Use care when pulling the water deflector to not damage the seal.
