Rear Side Door Water Deflector Replacement

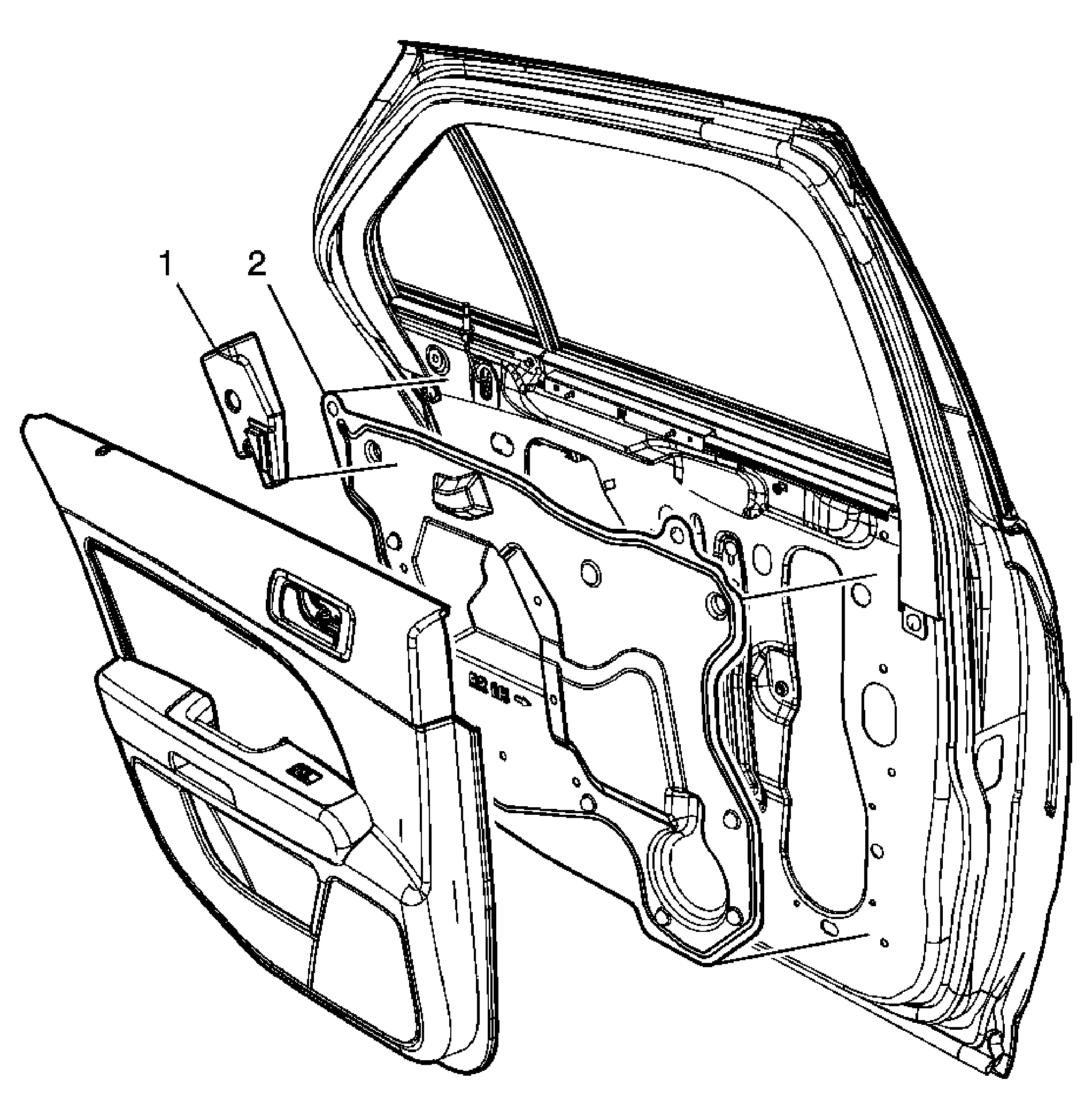

Fig 1: Rear Side Door Water Deflector & Energy Absorber

Courtesy of GENERAL MOTORS CORP.

Rear Side Door Water Deflector Replacement

Callout	Component Name
Preliminary Procedure:  Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1	Rear Side Door Energy Absorber
2	Rear Side Door Water Deflector Tip:  Use care when pulling the water deflector not to damage the seal.
