Rear Side Door Trim Panel Replacement
Rear Side Door Trim Panel Replacement

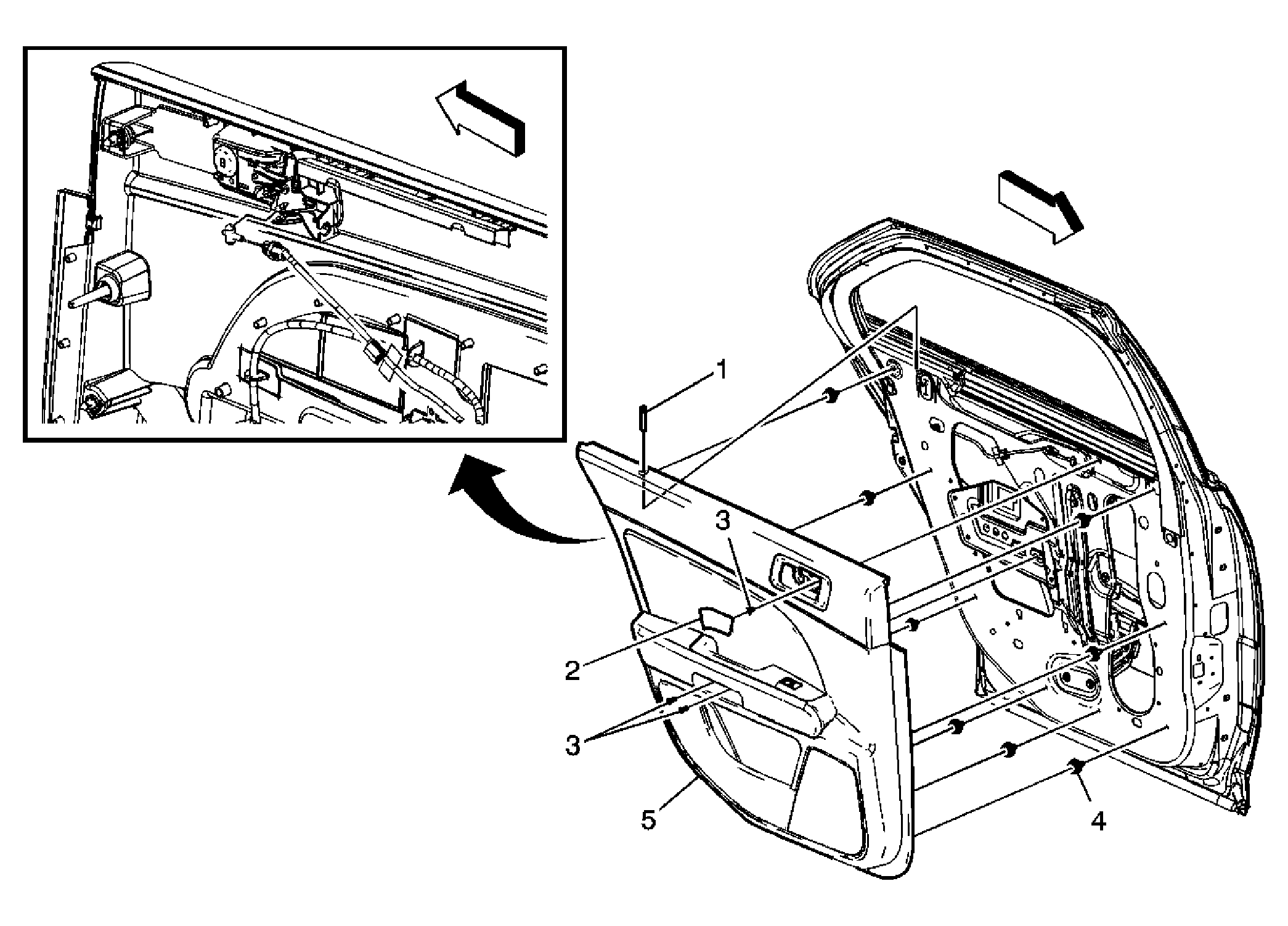

| Callout | Component Name |
|---|---|
| 1 | Side Door Locking Rod Knob |
| 2 | Rear Side Door Inside Door Handle Cover |
| 3 | Rear Side Door Trim Panel Screw (Qty: 3)
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Tip: Insert a flat-bladed tool at the bottom of the trim cover flap and pry up to access screws. Tighten: 2 N.m (18 lb in) |
| 4 | Rear Side Door Trim Panel Retainer (Qty: 8) |
| 5 | Rear Side Door Trim Panel Assembly Tip:
|
