Automatic Transmission Controls Schematics

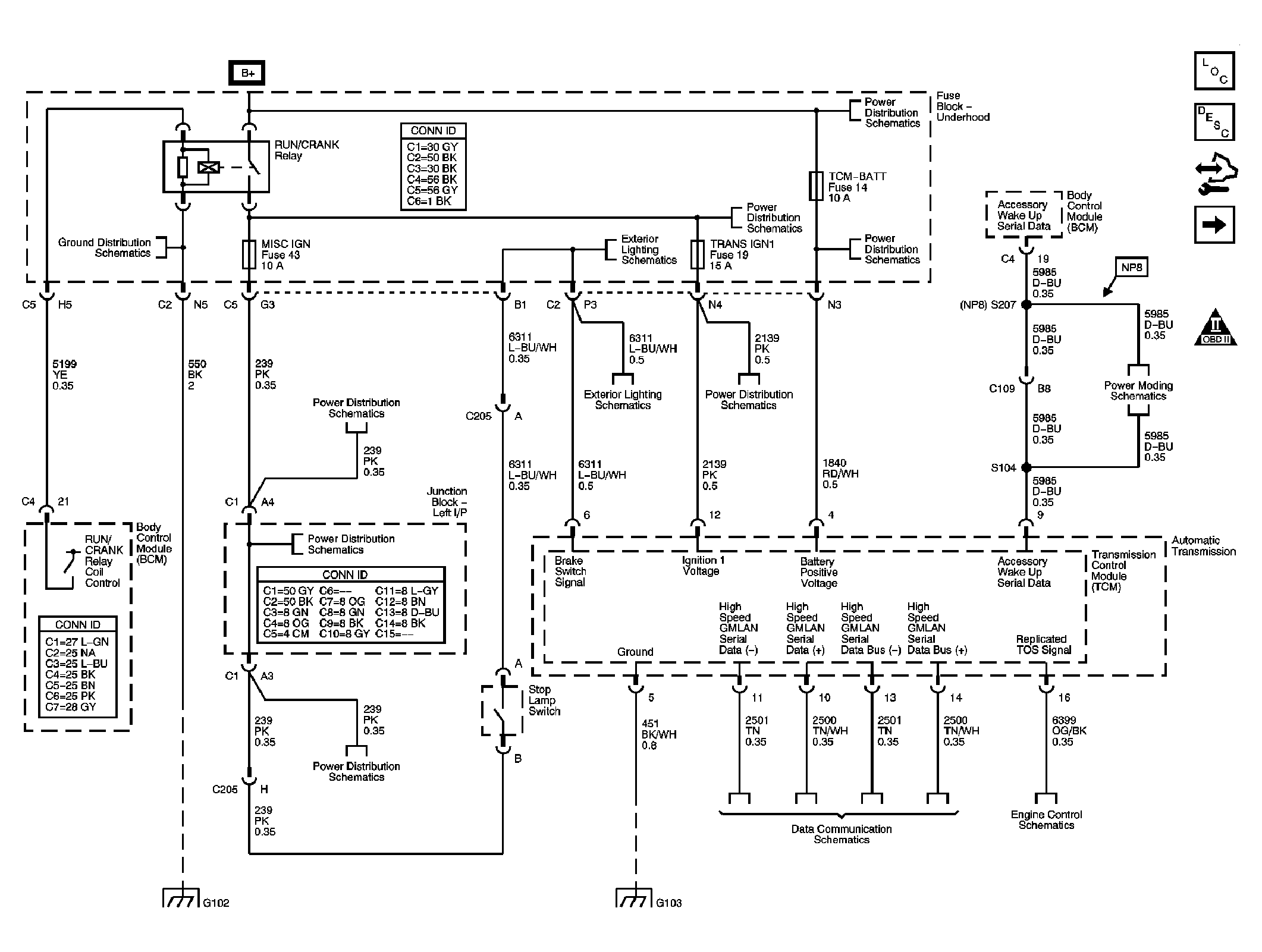

Fig 1: Module Power, Ground, Serial Data, and Stop Lamp Signal Schematic

Courtesy of GENERAL MOTORS CORP.

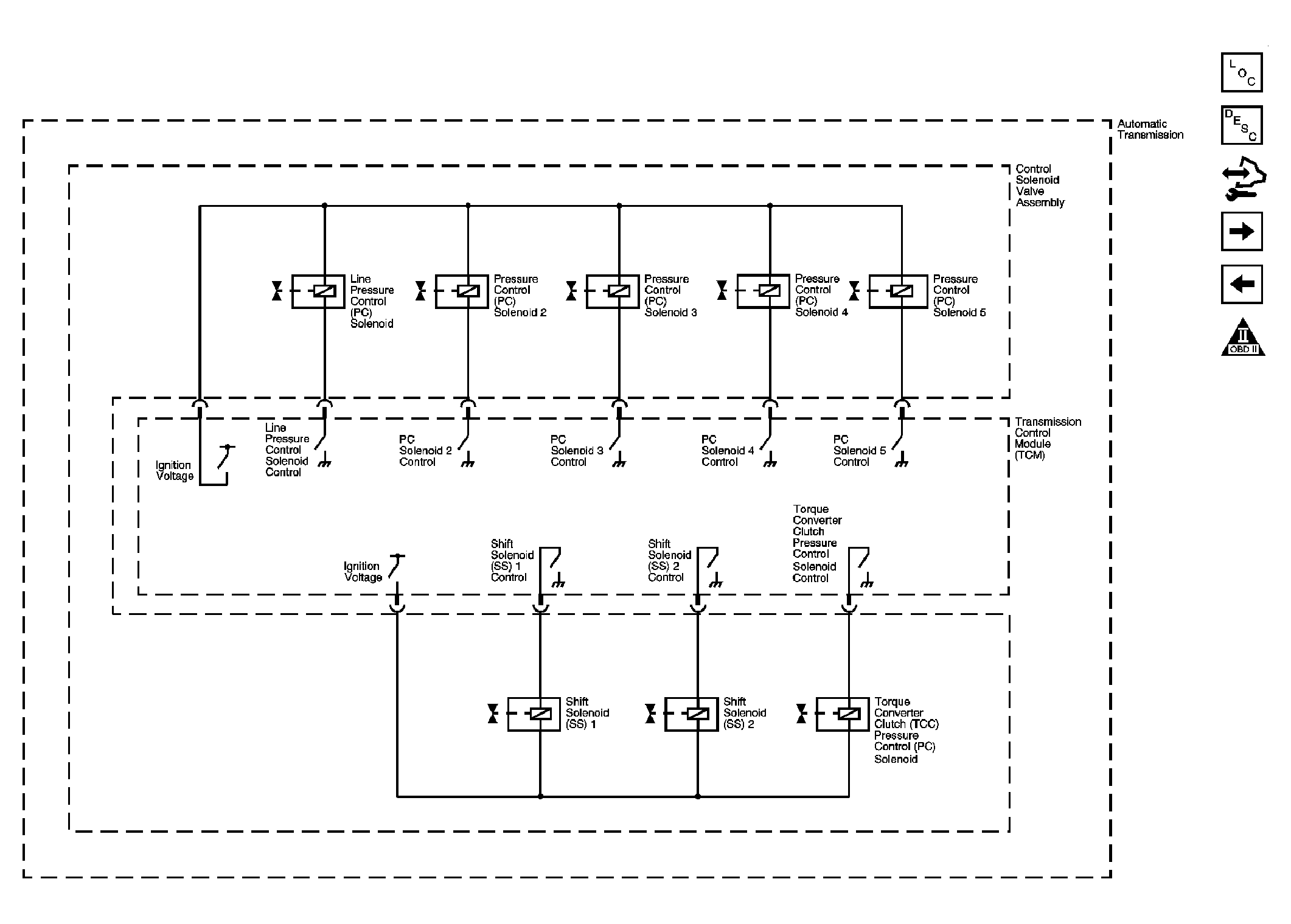

Fig 2: Pressure Controls - 1 of 2 and Shift Controls Schematic

Courtesy of GENERAL MOTORS CORP.

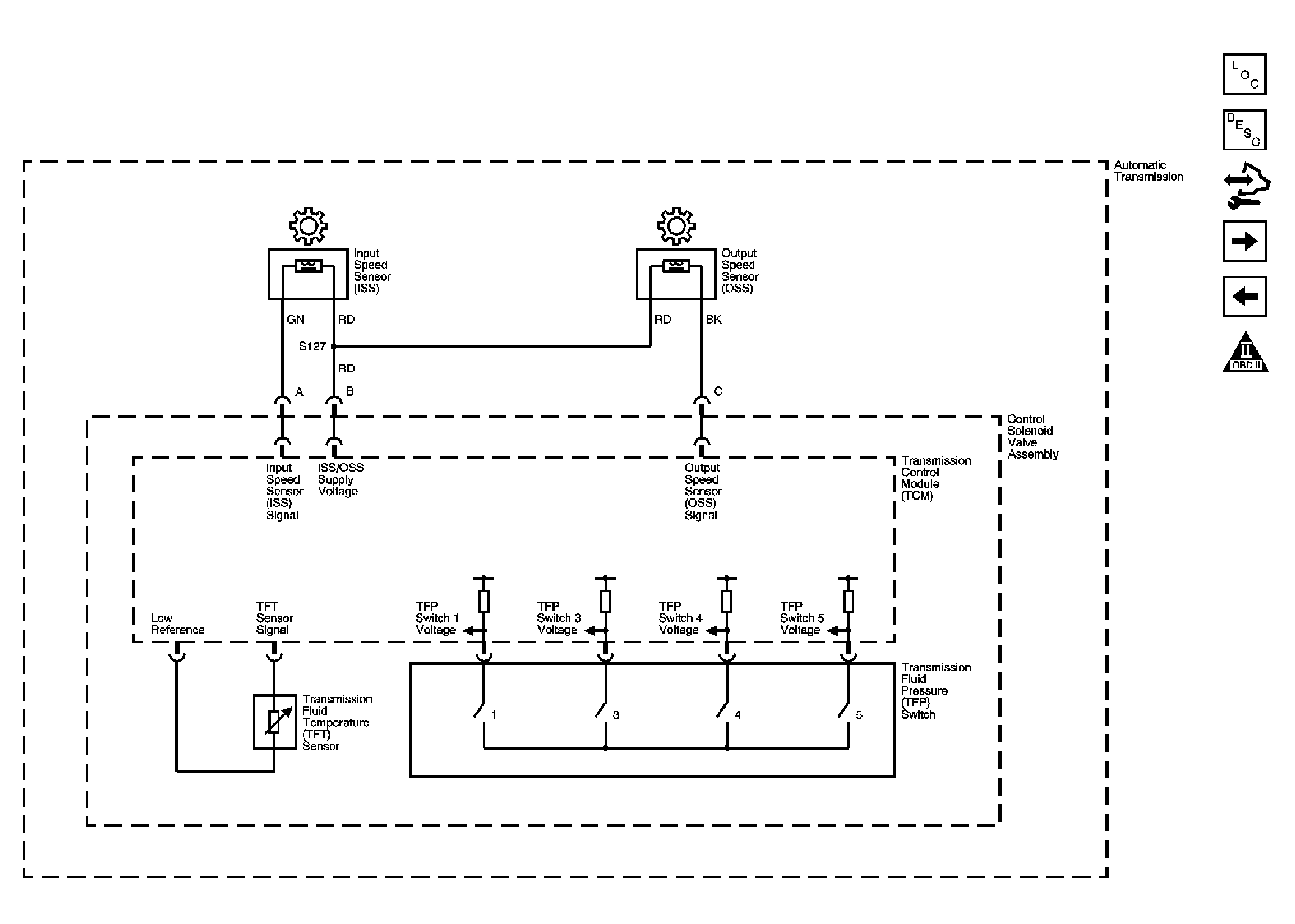

Fig 3: Pressure Controls - 2 of 2 and Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

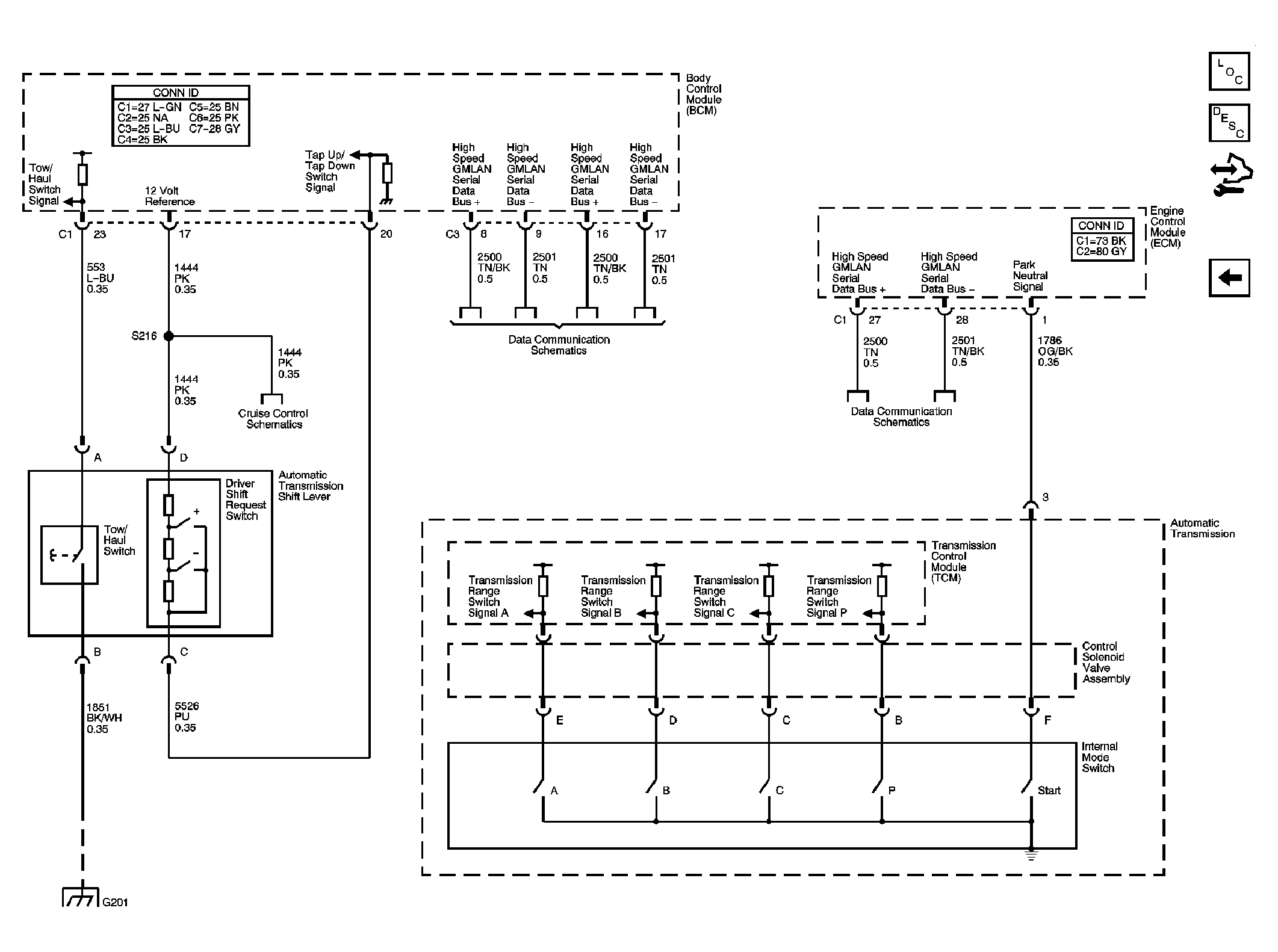

Fig 4: Transmission Range Signals and Driver Shift Request Schematic

Courtesy of GENERAL MOTORS CORP.
