Control Solenoid Valve Assembly Installation
Control Solenoid Valve Assembly Installation

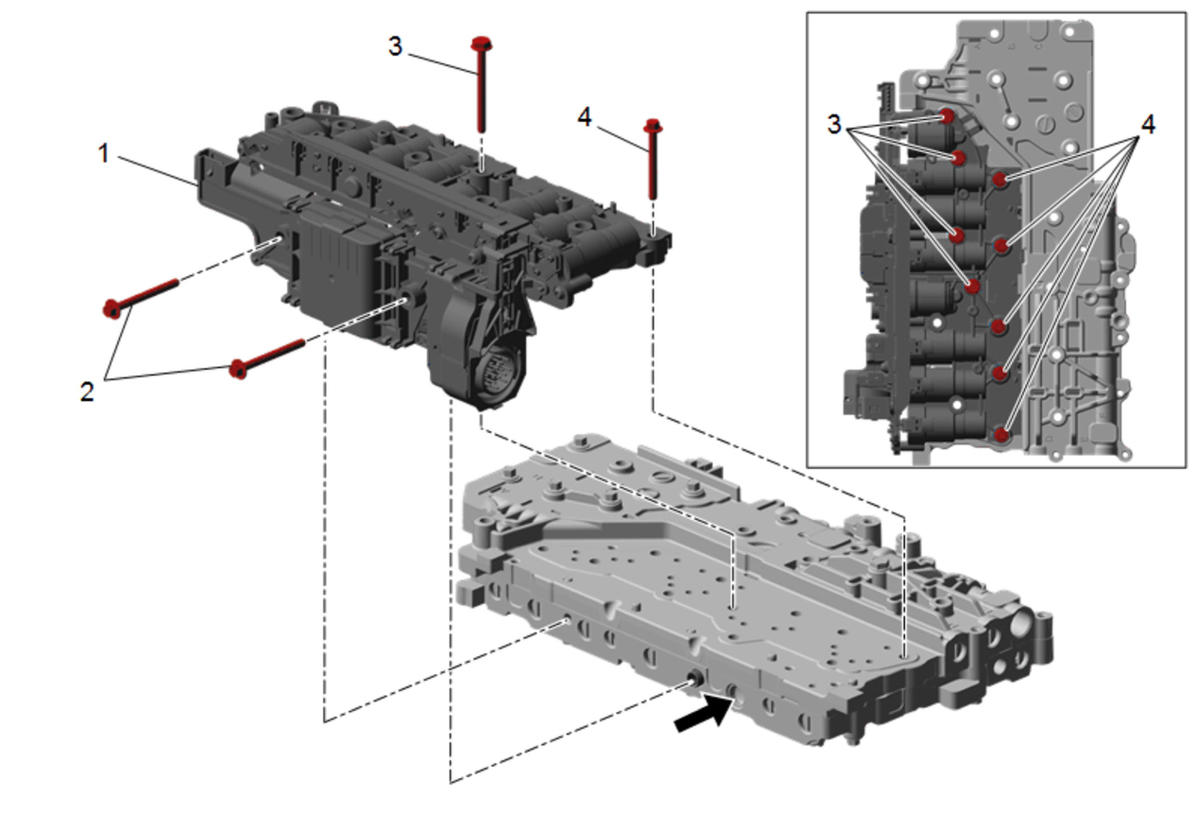

| Callout | Component Name |
|---|---|
| 1 | Control Solenoid (w/Body and TCM) Valve Assembly Tip: Note the locator pin on the control valve lower body assembly while aligning the control solenoid valve assembly. |
| 2 | Bolt M5 x 53 (Quantity: 2) Tip: Hand tighten only. |
| 3 | Bolt M5 x 55 (Quantity: 4) Tip: Hand tighten only. |
| 4 | Bolt M5 x 45 (Quantity: 5) Tip: Hand tighten only. |
