Fourth Clutch Assembly Disassemble

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2006 GMC Yukon XL, 2006 GMC Sierra, 2006 GMC Savana Special, 2006 GMC Savana Camper Special, and 2006 GMC Savana. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 23327 Clutch Spring Compressor. See Special Tools .
J 38731-3 Fourth Clutch Piston and Housing Seal Spacer. See Special Tools .
J 38882 Fourth Clutch Spring and Retainer Assembly Adapter. See Special Tools .

Remove the fourth clutch backing plate retainer ring (523).

Fig 1: Identifying Fourth Clutch Backing Plate Retainer Ring
Courtesy of GENERAL MOTORS CORP.
Remove the fourth clutch backing plate (524).

Fig 2: View Of Fourth Clutch Plates
Courtesy of GENERAL MOTORS CORP.
Remove the fourth clutch plates (525, 526).
Place the fourth clutch housing (529) onto the J 38731-3 . See Special Tools .

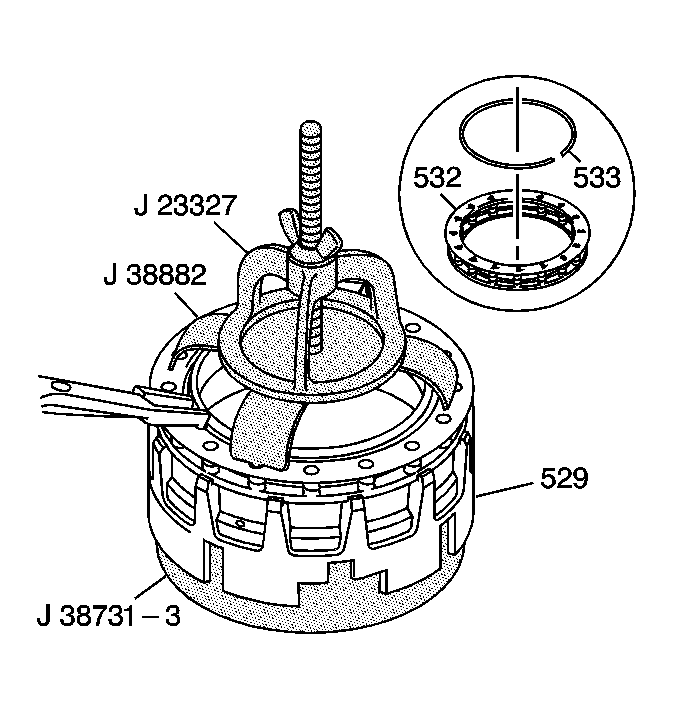

Using the J 38882 and the J 23327 , compress the fourth clutch spring assembly (532). See Special Tools .
Remove the fourth clutch spring retainer ring (533).

Fig 3: Identifying Fourth Clutch Spring Retainer Ring
Courtesy of GENERAL MOTORS CORP.
Remove the J 38882 and the J 23327 . See Special Tools .
Remove the fourth clutch spring assembly (532).
Remove the fourth clutch piston (528).
Remove the fourth clutch piston inner seal (527).

Fig 4: Locating Fourth Clutch Orifice
Courtesy of GENERAL MOTORS CORP.
Remove the fourth clutch piston outer seal (531) from the fourth clutch housing (529).
Inspect the fourth clutch orifice (530).
Orifice Specification: The small hole in the orifice should be open approximately 0.51 mm (0.020 in).
