Inflatable Restraint Passenger Presence System Replacement - Front

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

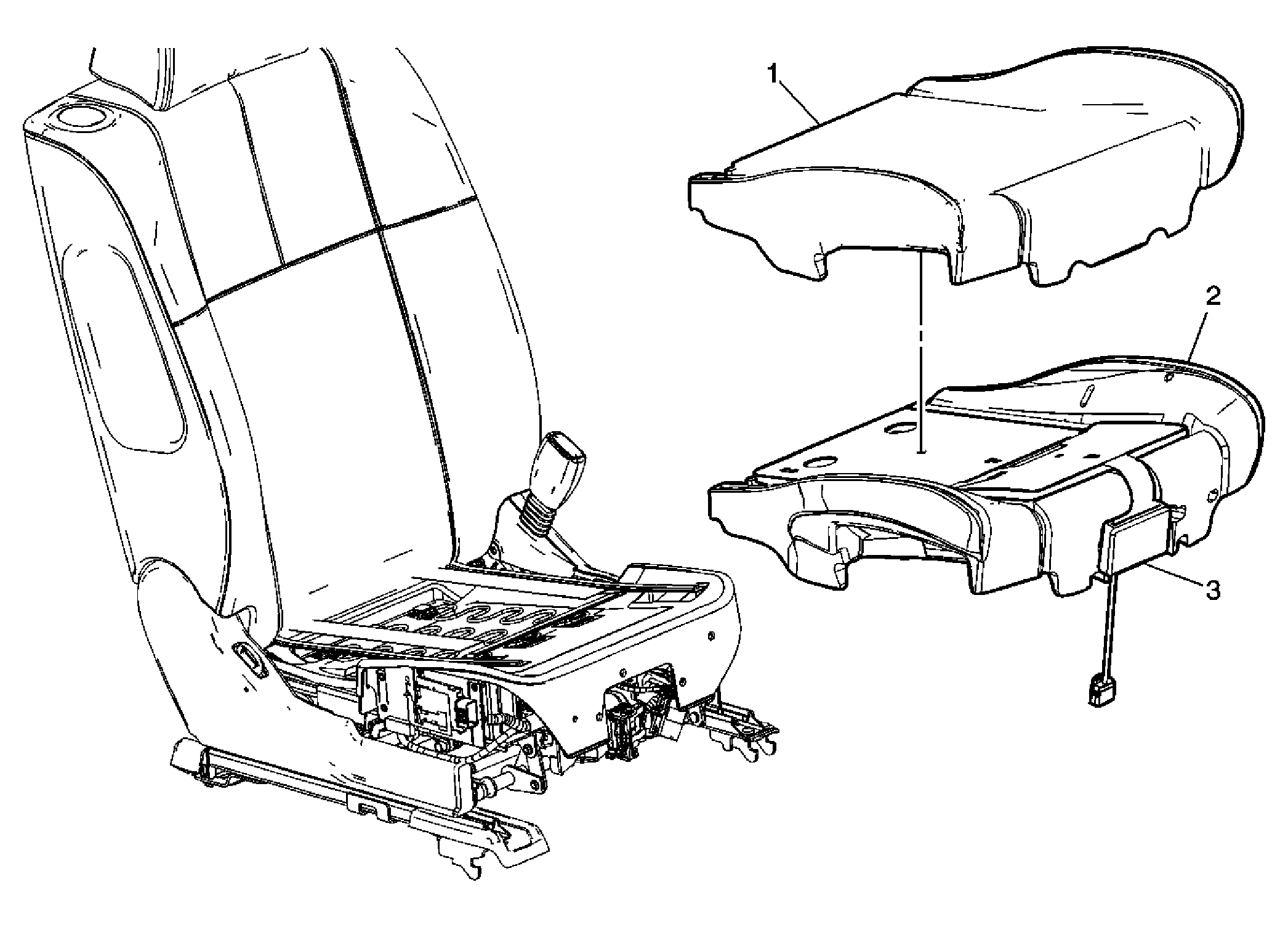

Fig 1: View of Inflatable Restraint Passenger Presence System - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly. WARNING: To avoid personal injury, perform a preload test on the passenger presence system whenever you remove or replace the seat cushion trim. Failure to do so may cause the system to malfunction. Preliminary Procedures Remove the front seat. Refer to Bucket Seat Replacement . Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References .
1	Passenger Seat Cushion Cover Refer to Front Seat Cushion Cover and Pad Replacement .
2	Passenger Seat Cushion Pad Refer to Front Seat Cushion Cover and Pad Replacement .
3	Inflatable Restraint Front Passenger Presence System Assembly Tip: The passenger presence system is an integral part of the pad on the passenger seat cushion. The sensor, module and seat cushion pad must be replaced as a unit. Note the routing of the wiring harness and connector location for installation.
