Seat Cushion Frame Replacement

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

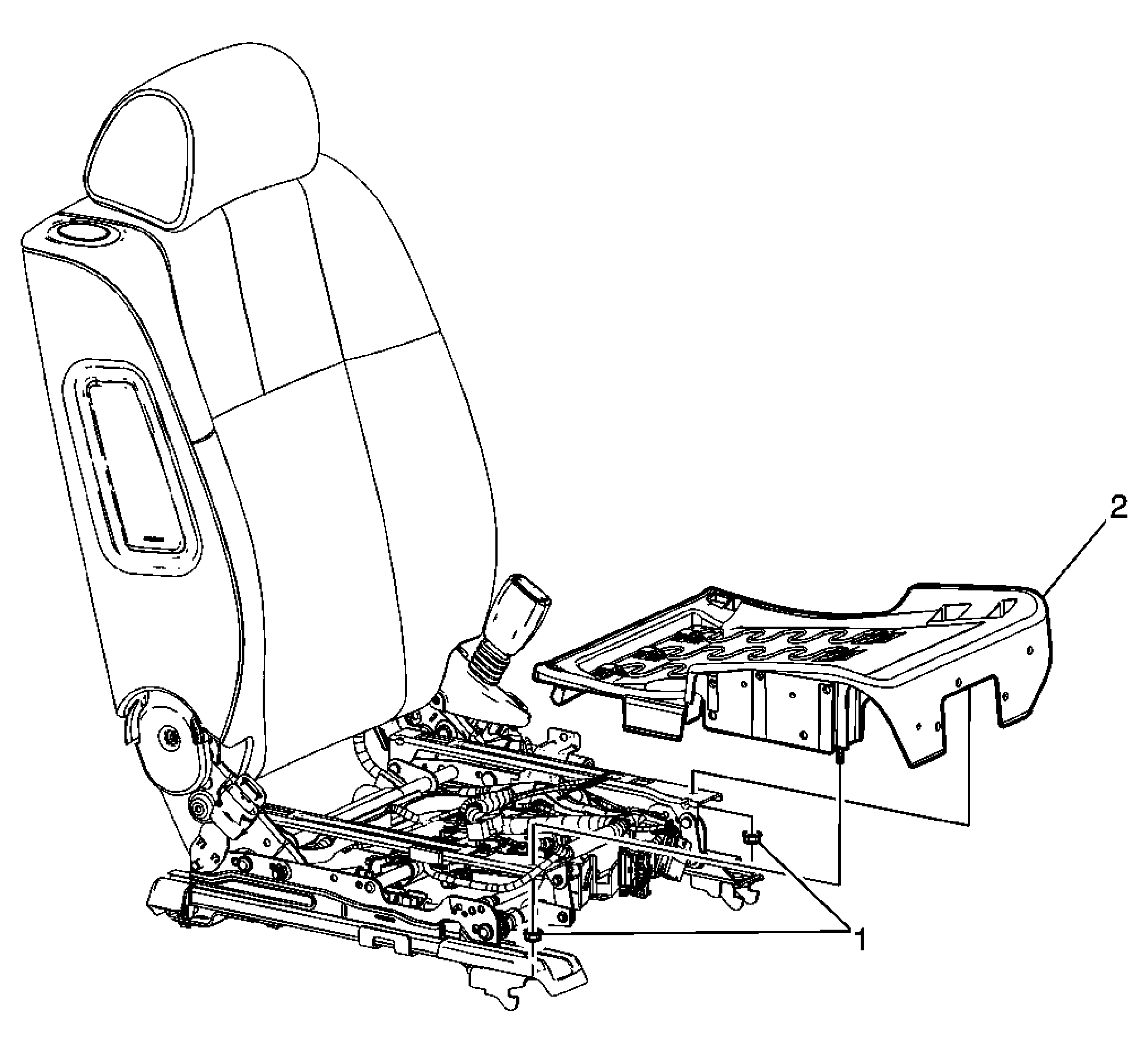

Fig 1: View of Seat Cushion Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Bucket Seat Replacement . Remove the seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement . Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References .
1	Seat Cushion Frame Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Seat Cushion Frame Tip: Pull up from the front and slide forward to remove the adjuster assembly. Disconnect the electrical connectors and wiring from the seat cushion frame. If replacing the frame, transfer the components as necessary.

Callout

Component Name

Preliminary Procedure

Remove the front seat. Refer to Bucket Seat Replacement .
Remove the seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References .

Seat Cushion Frame Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Seat Cushion Frame
Tip:

Pull up from the front and slide forward to remove the adjuster assembly.
Disconnect the electrical connectors and wiring from the seat cushion frame.
If replacing the frame, transfer the components as necessary.
