Front Bumper Fascia Replacement

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

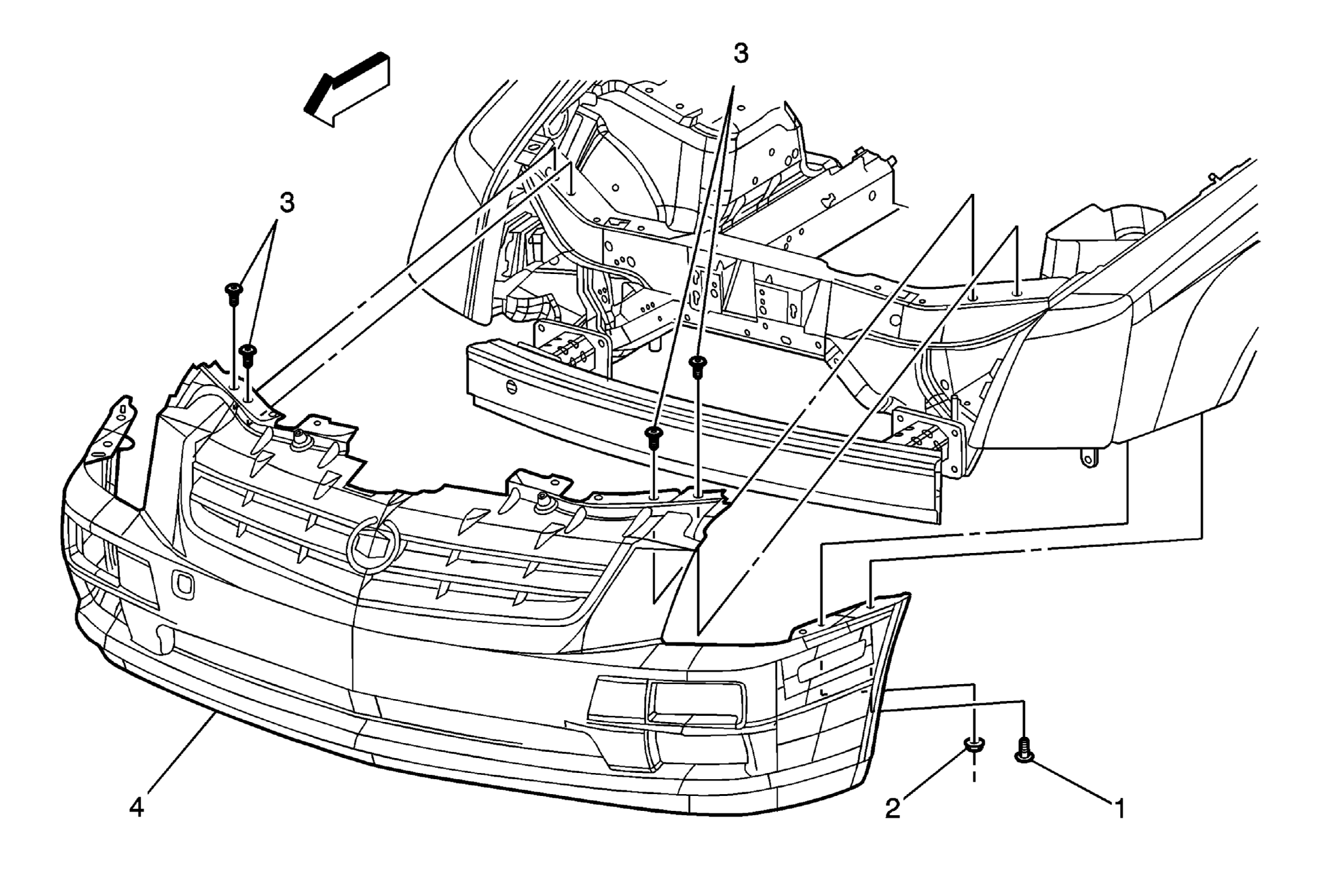

Fig 1: Locating Front Bumper Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front compartment sight shields. Refer to Front Compartment Sight Shields Replacement . Remove the front air deflector. Refer to Front Air Deflector Replacement . Remove the front bumper fascia extensions. Refer to Front Bumper Fascia Extension Replacement (DW) or Front Bumper Fascia Extension Replacement (DX) .
1	Front Bumper Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (53 lb in)
2	Front Bumper Fascia Reinforcement Nut (Qty: 2) Tip: These nuts can be loosened. It is not necessary to entirely remove them. Tighten: 6 N.m (53 lb in)
3	Front Bumper Fascia Plastic Retainer (Qty: 4)
4	Front Bumper Fascia Tips Disconnect the radiator air baffle shields from the lower grille before removing. Disconnect all electrical connectors as needed. Transfer any parts as needed.
